P/N 80679, Rev. 10 Page 51
After setting the approximate feed rate,
if a more precise reading is helpful,
measure the actual feed rate by using a
dial indicator mounted as shown in
Figure 3-37.
If the resulting feed rate is different
than expected, adjust the feed rate
adjustment knob (see Figure 3-35) by
doing the following:
1. Turn the knob clockwise to
increase the feed rate.
2. Turn the knob counter-clock-
wise to decrease the feed rate.
Repeat step 1 and step 2 until the
desired feed rate is achieved.
3.12.3 Reversing the feed direction
The feed box only feeds in one direction.
You do not need to disconnect the hoses to reverse the feed direction.
To reverse the feed direction:
1. Remove the feed shaft and two
bolts (see Figure 3-38).

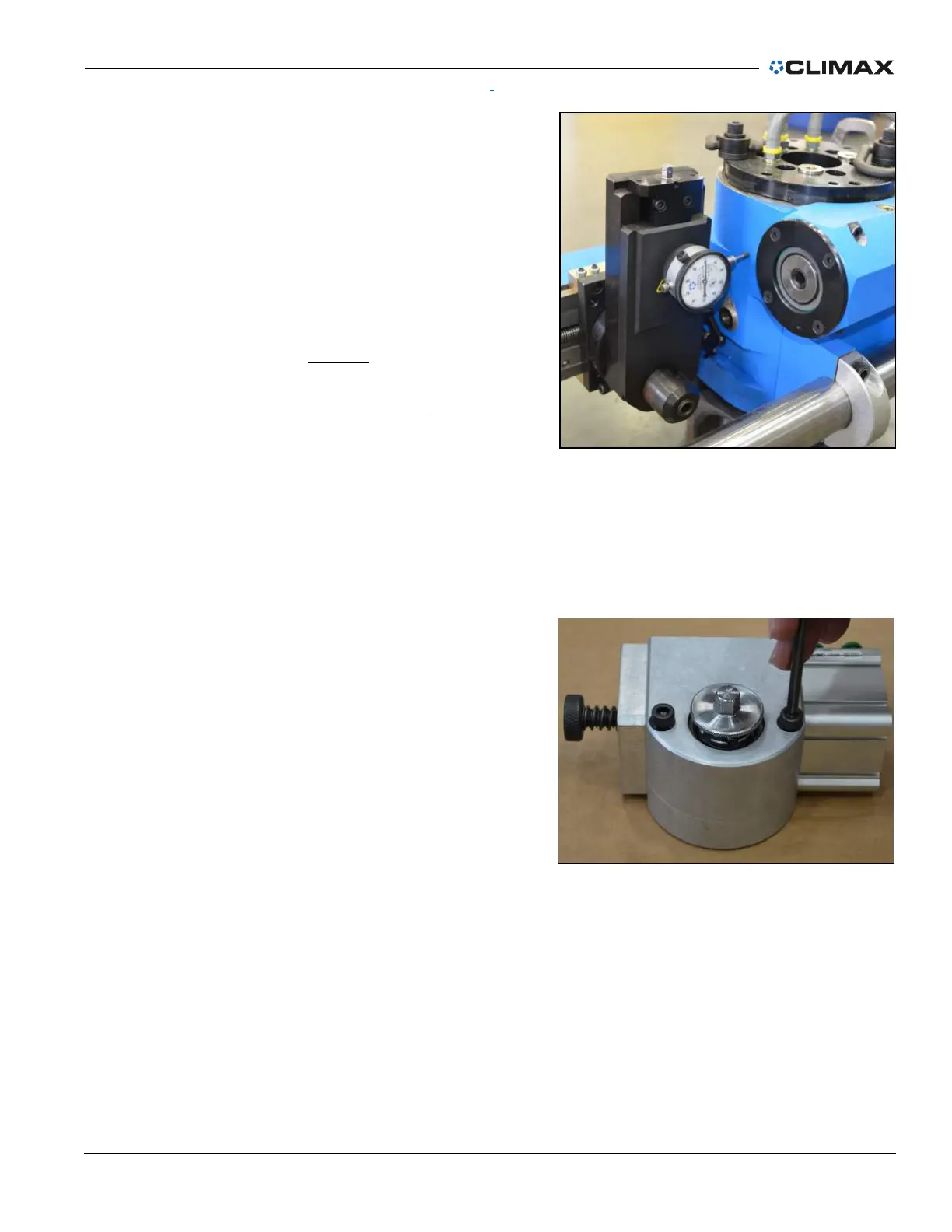

FIGURE 3-37. DIAL INDICATOR USED FOR PRECISE ADJUST-
MENT
FIGURE 3-38. LOCATION OF FEED BOX BOLTS
