P/N 80679, Rev. 10 Page 47
3.11 ROTATING THE TOOL HEAD
The FF6300 is designed to trail
the cutting tool behind the
turning arm. The turning arm
moves in a clockwise direction.
Keep these characteristics in
mind when installing a new tool
in the machine.
Do the following to rotate the tool
head:
1. Loosen the circular clamp col-
lar on the back of the tool head.
Do not loosen the tool head
rapidly. Keep your hand on the
tool head for stability. Quick
disengagement of tool head can
cause it to swing unexpectedly,
and may result in personnel
injury or machine damage.
2. Position the tool head.
3. Tighten the clamp collar.
Engraved markings on the clamp collar
enable you to set angles within ± 0.5°.

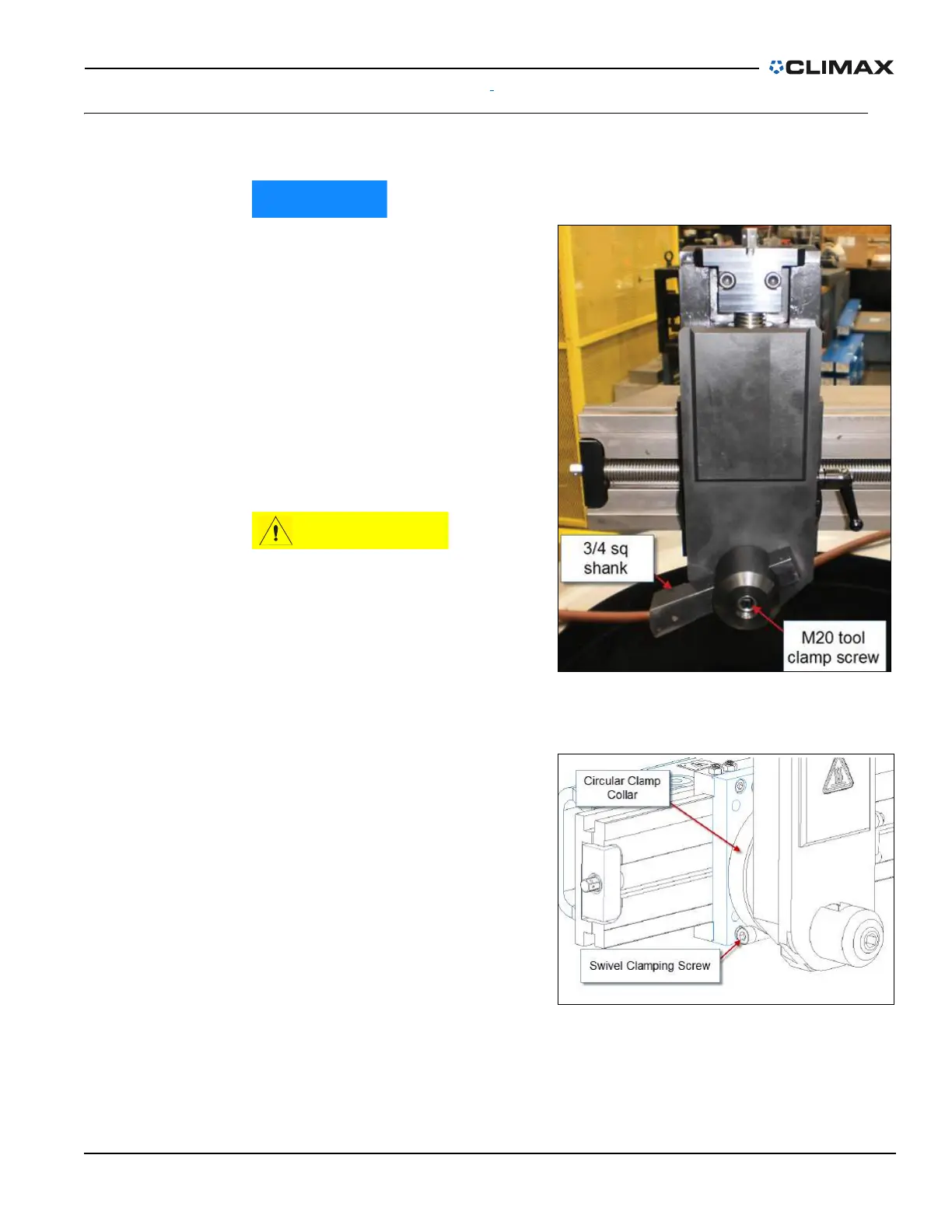

FIGURE 3-30. DETAIL OF TOOL HOLDER
FIGURE 3-31. LOCATION OF SWIVEL CLAMPING SCREW
