Climax FF6300 - Positioning the Machining Arm

Page 44 FF6300 Operating Manual
9. Repeat step 3 to check for level; repeat step 4 to step 6 as needed to finalize
leveling.

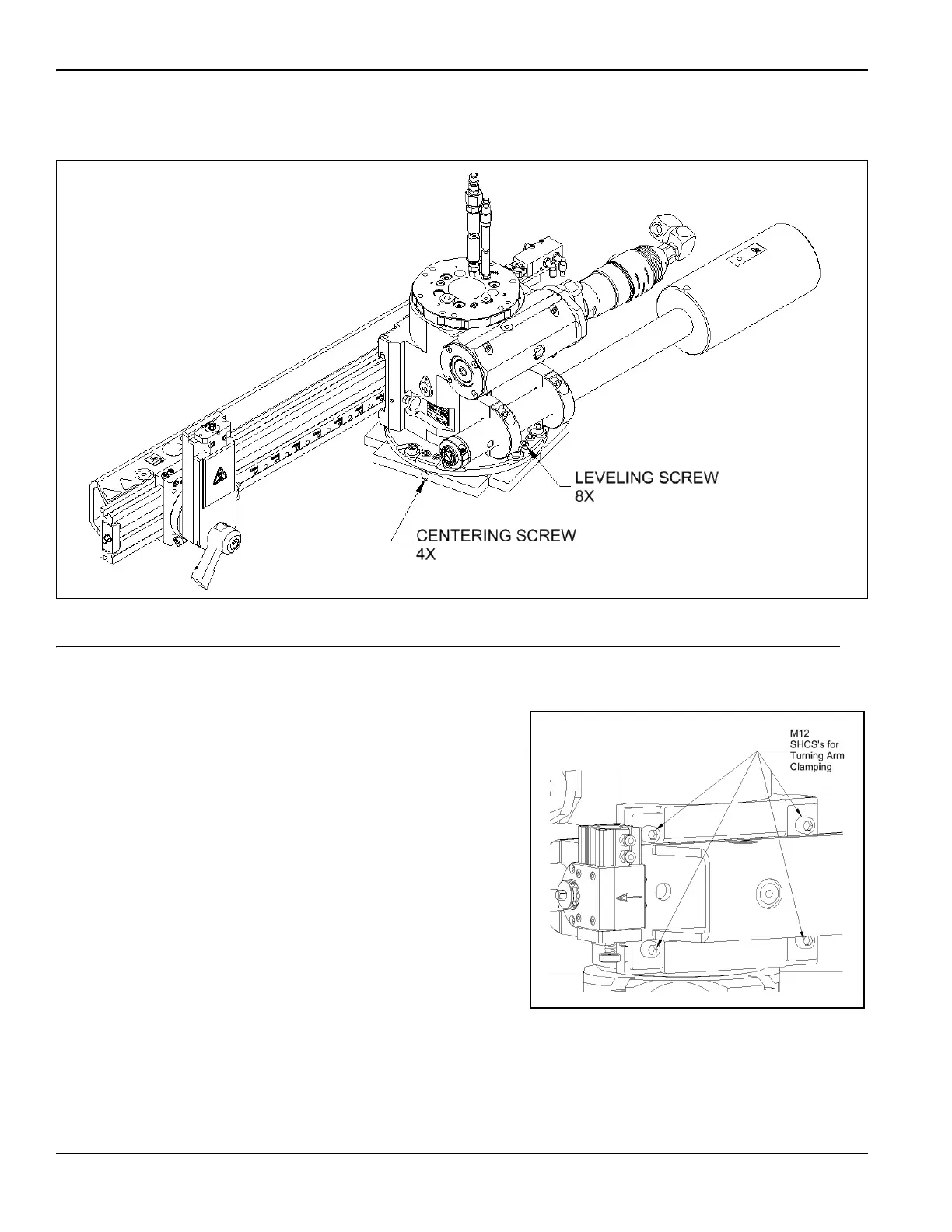

FIGURE 3-25. SURFACE MOUNT ASSEMBLY
3.9 POSITIONING THE MACHINING ARM
The machining arm is adjustable for
versatile positioning and to clear
obstructions.Loosen the four clamps
that secure the arm to the main body
(Figure 3-26).
1. Pull and hold the safety stop
pin.
FIGURE 3-26. LOCATION OF SECURING CLAMPS
