3.12 ADJUSTING THE FEED BOX
The machine includes a remote air shutoff valve (seen in Figure 2-7 on page 21).
The feed box (seen in Figure 3-32) is
supplied with two 1/4" air supply
tubes. The feed box will function even
if the tubing connection points are
swapped; the order of connection is not
critical.
The hoses should have approximately
12" (305 mm) of extra length to allow
the arm to move and still keep the
hoses clear of snag hazards.
The feed box has two positions: disen-
gaged and engaged (see Figure 3-33).
Push the knob inward to engage the
feed, and pull the knob out to
disengage.

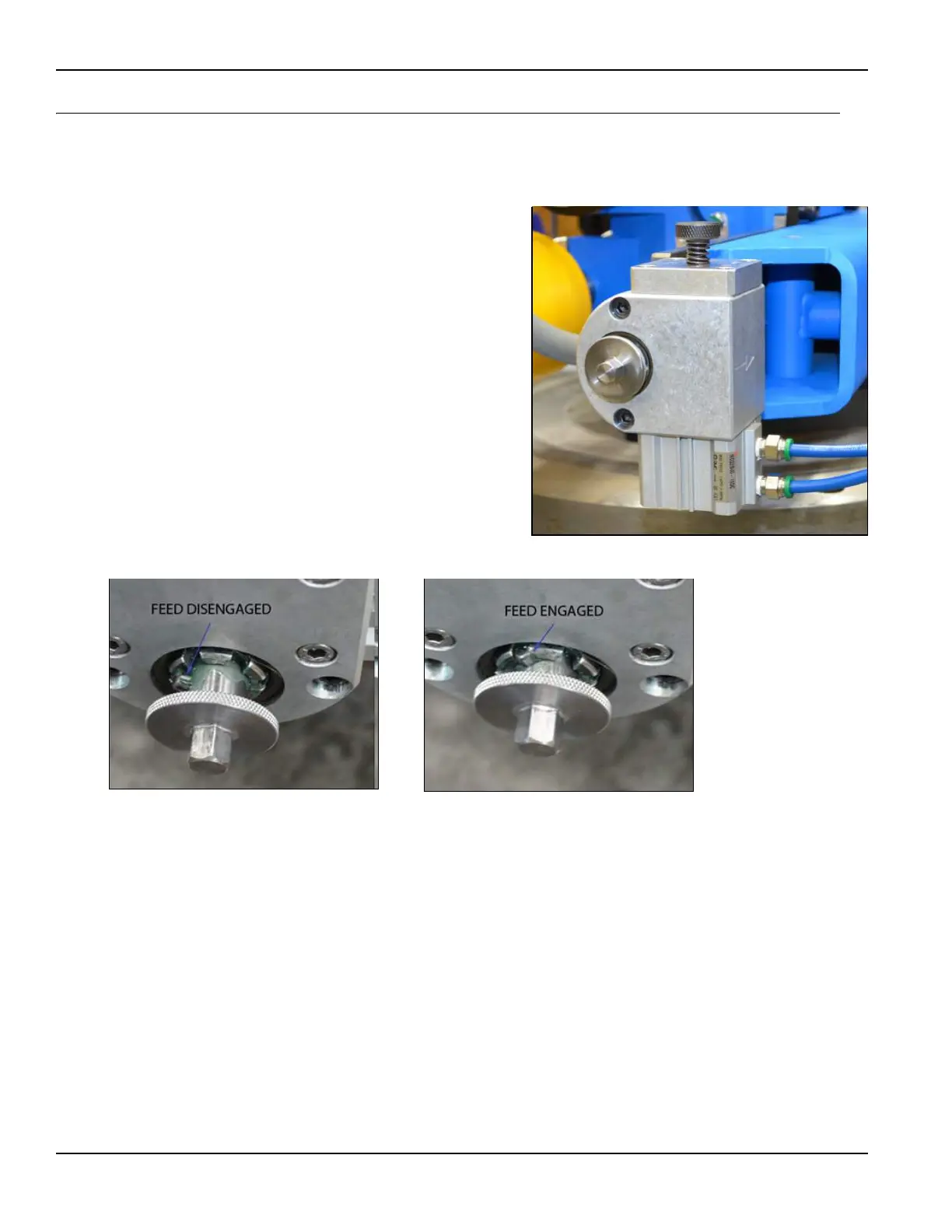

FIGURE 3-33. DETAIL OF FEED BOX POSITIONS
