3.3 LIFTING AND RIGGING
The FF6300 can weigh 473 lbs (215 kg) when fully assembled in the ID
configuration, and 773 lbs (353 kg) in the outside diameter (OD)
configuration.
Use caution and follow all site rigging procedures such as a lift plan and
never allowing anyone under the load. Falling or uncontrolled swinging
of machinery can cause serious injury or death.
The FF6300 has two M10 lifting eyes rated for 8,81lbs (400kg). All M10 tapped
holes on the exterior of the machine are suitable for lifting with these lifting eyes.
Lift the machine only by the hoist rings marked by Figure 3-1.
Connect the appropriate lifting
equipment to the lifting eyes
located on top of the main body, on
the chuck assembly, or on the
machining arm when lifting the
entire assembly. Never lift the
machine by the drive motors, pneu-
matic lines, or hoses.
Do not lift the assembled
machine by the lifting eyes
or hoist rings on the
counterweight or the
machining arm. Only lift the
assembled machine by the
four hoist rings shown in
Figure 3-1.
Lifting the assembled machine by other lifting points can cause the
machine to fall from the rigging.
When lifting the machine, pay special attention to the location of the center of
gravity when lifting. Always check that all machine parts are tightened properly to
prevent hazards.

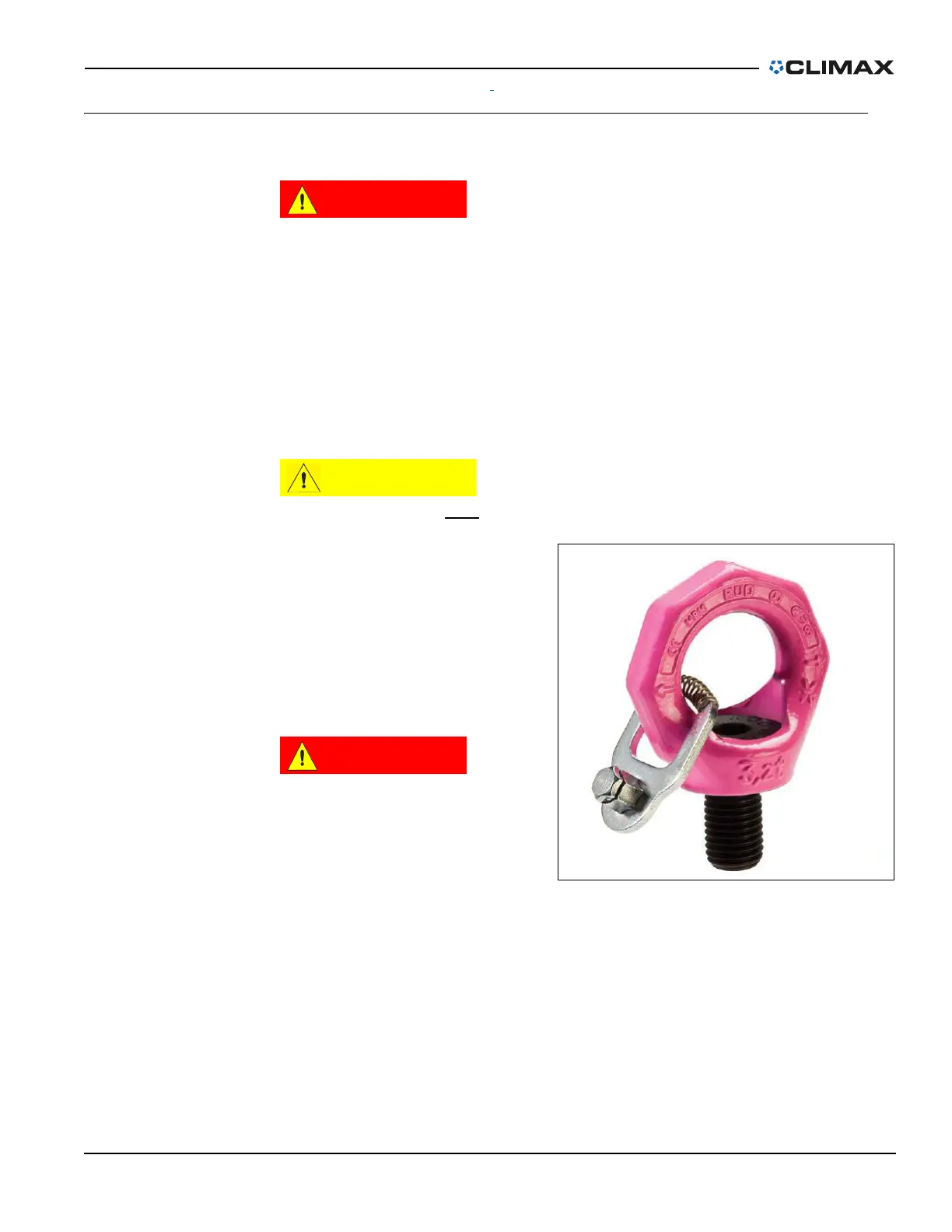

FIGURE 3-1. M10 LIFTING EYE (P/N 70483)
