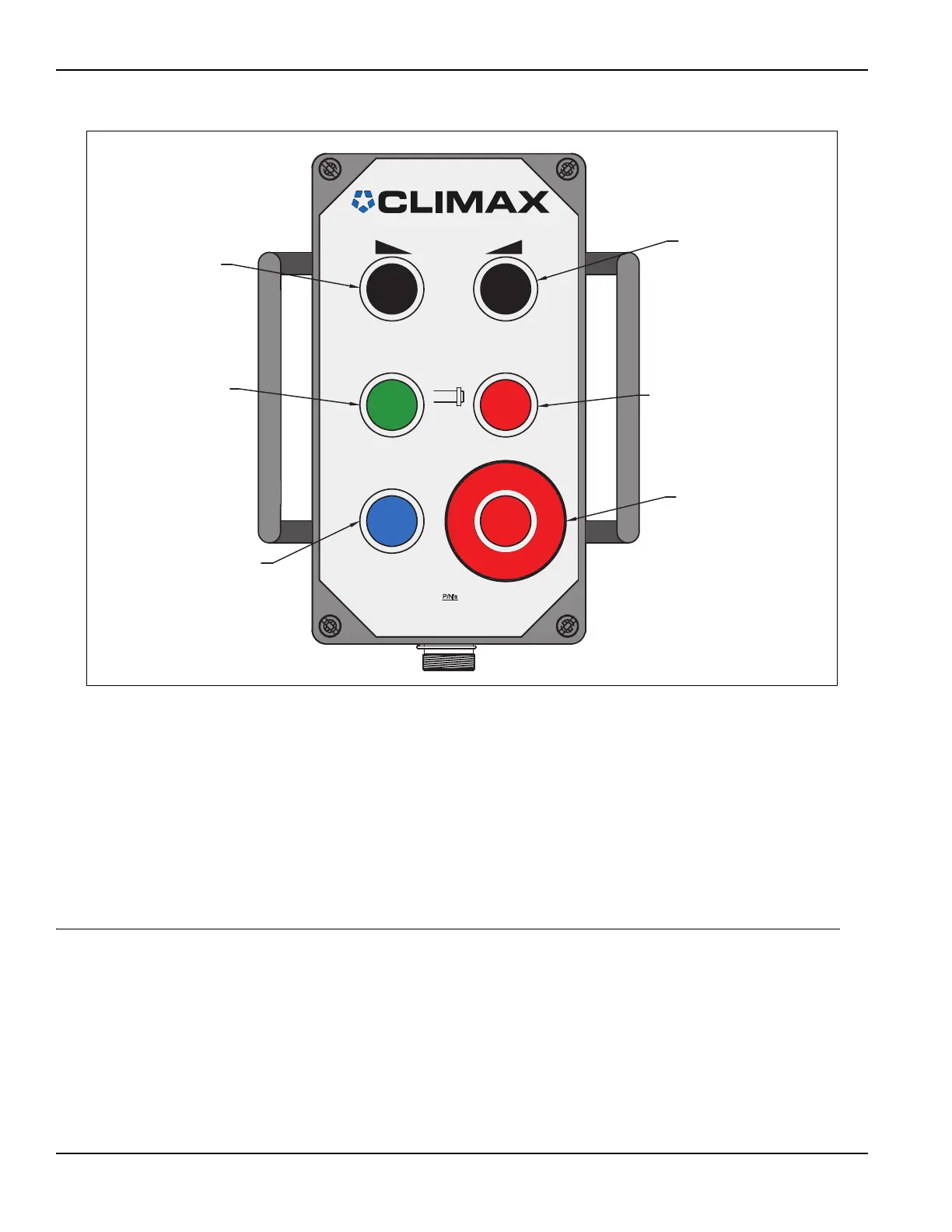

FIGURE 2-8. DETAIL OF HYDRAULIC POWER UNIT CONTROLLER
• Speed Control buttons—Control the machine’s rate of rotation. Press to
speed up or slow down machine rotation.
• Hydraulic On and Off buttons—Control the hydraulic flow to the flange
facer. Press to start or stop machine rotation.
• Start button—Turns on the electric drive motor on the HPU. Press to start
the HPU.
• Emergency Stop button—Press to stop the machine. Rotate clockwise to
reset.
2.4 MACHINE SPECIFICATIONS
2.4.1 Temperature
The suggested machine operating temperature is -4–140
o
F (-20–60
o
C).
MAIN
O
BAR
(-) (+)
RPM
I
I
PENDANT 65028
20' CABLE 53432
30' CABLE 62729
50' CABLE 53433
100' CABLE 53434
SPEED CONTROL
FASTER
SPEED CONTROL
SLOWER
HYDRAULIC ON
(Turns on hydraulic
flow to flange facer)
HYDRAULIC OFF
(Turns off hydraulic
flow to flange facer)
START (System reset)
(Starts main electric
drive motor on HPU)
EMERGENCY STOP
(Rotate clockwise to
reset)
(Stops electric drive
motor and oil flow)
