Page 30 FF6300 Operating Manual
7. Install a tool bit (Figure 3-7).
The FF6300 cutting tool is
designed to trail behind the
turning arm as it rotates around
the workpiece surface. The
turning arm moves in a
clockwise direction. Keep these
characteristics in mind when
installing a new tool in the
machine.
8. Connect the power and feed
control hoses (Figure 3-8).
You are ready to begin machining.
3.5 INSTALLATION HAZARDS
The installation stage can be dangerous, as it relies on the operator and other personnel
following the recommended safety precautions. Consider the following warnings care-
fully before undertaking the assembly process.

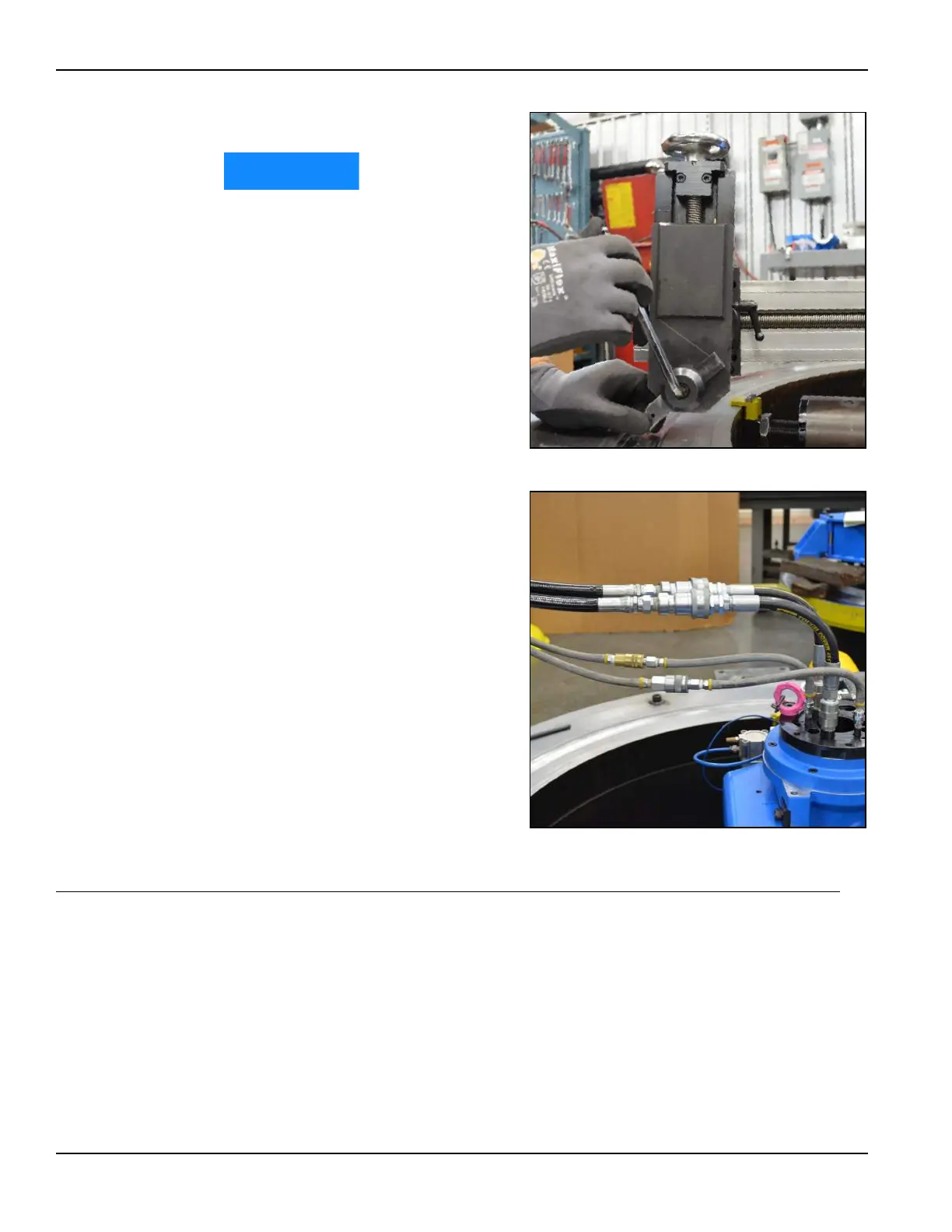

FIGURE 3-7. INSTALL A TOOL BIT
FIGURE 3-8. CONNECT THE HOSES (HYDRAULIC VERSION)
