Page 36 FF6300 Operating Manual
14. Check the machine for level and center again.
15. Repeat step 10 to step 14 until the machine is aligned.
16. Secure the chuck:
a) Use a dead blow hammer on the short handled wrench to tighten the lev-
eling feet to a torque value of 20 ft-lbs (27 Nm).
b) Use a 6mm hex wrench to tighten the recessed M8 locking nuts. You
need to tighten only two of these screws to lock the jacking screw.
17. Repeat step 10 to check for level, and step 11 to step 14 as needed to finalize
leveling.
If you used the 10mm hex wrench, remove it from the hex opposite the
motor. Otherwise, damage to the machine may occur.
3.7 OD MOUNTING
See Section 3.5 on page 30 for a full list of installation hazard warnings.

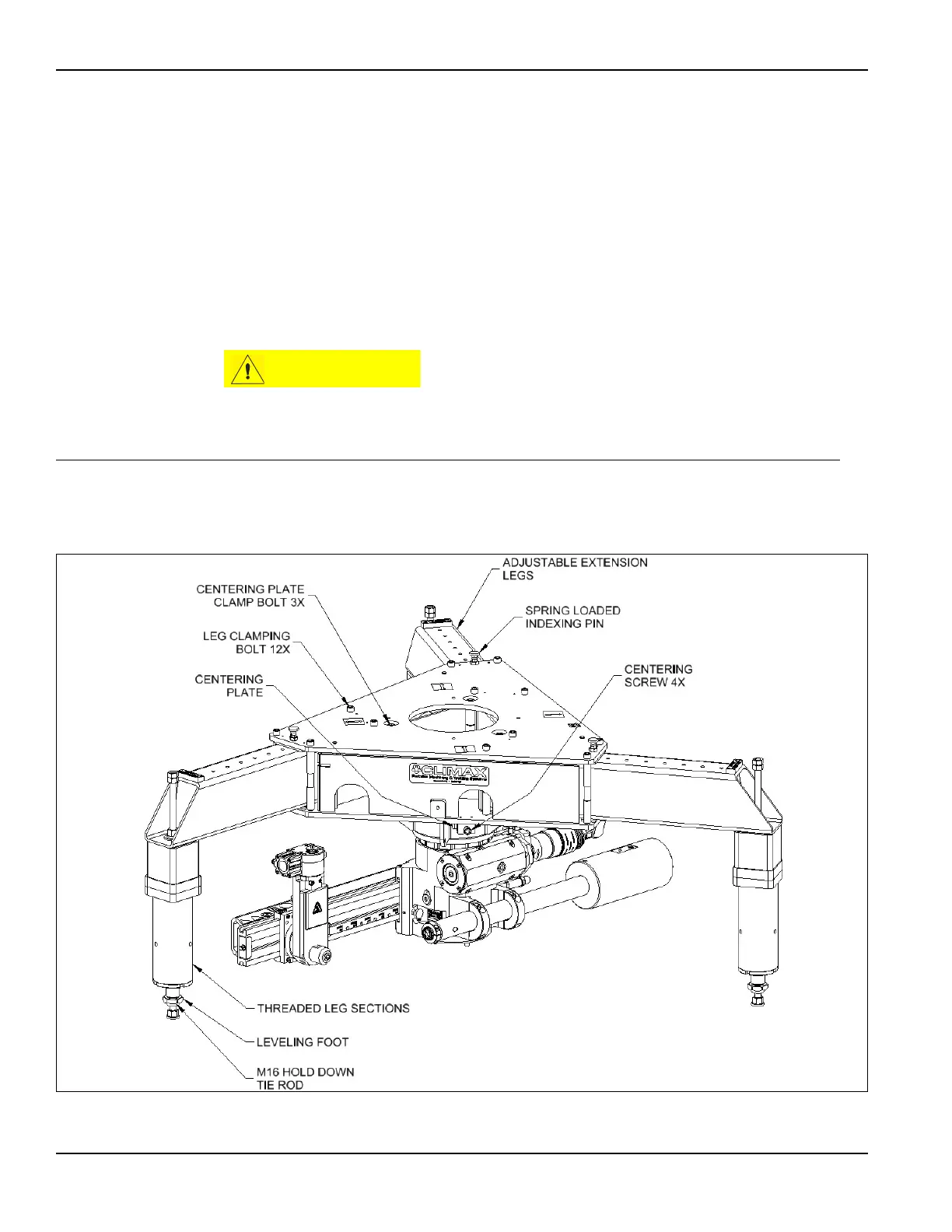

FIGURE 3-16. OD MOUNT
