1-4 Compaq Server Console Switch User Guide
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
141555-002
File Name:
b-ch1 Introduction.doc
Last Saved On:
8/22/00 10:24 AM
■
You can tier multiple Server Console Switch units to connect up to
64 servers. This configuration is illustrated in Figure 1-2, where the
device port from the secondary unit is connected to one of the computer
ports on the original, or primary unit. Multiple Server Console Switch
units can be tiered from the primary unit.

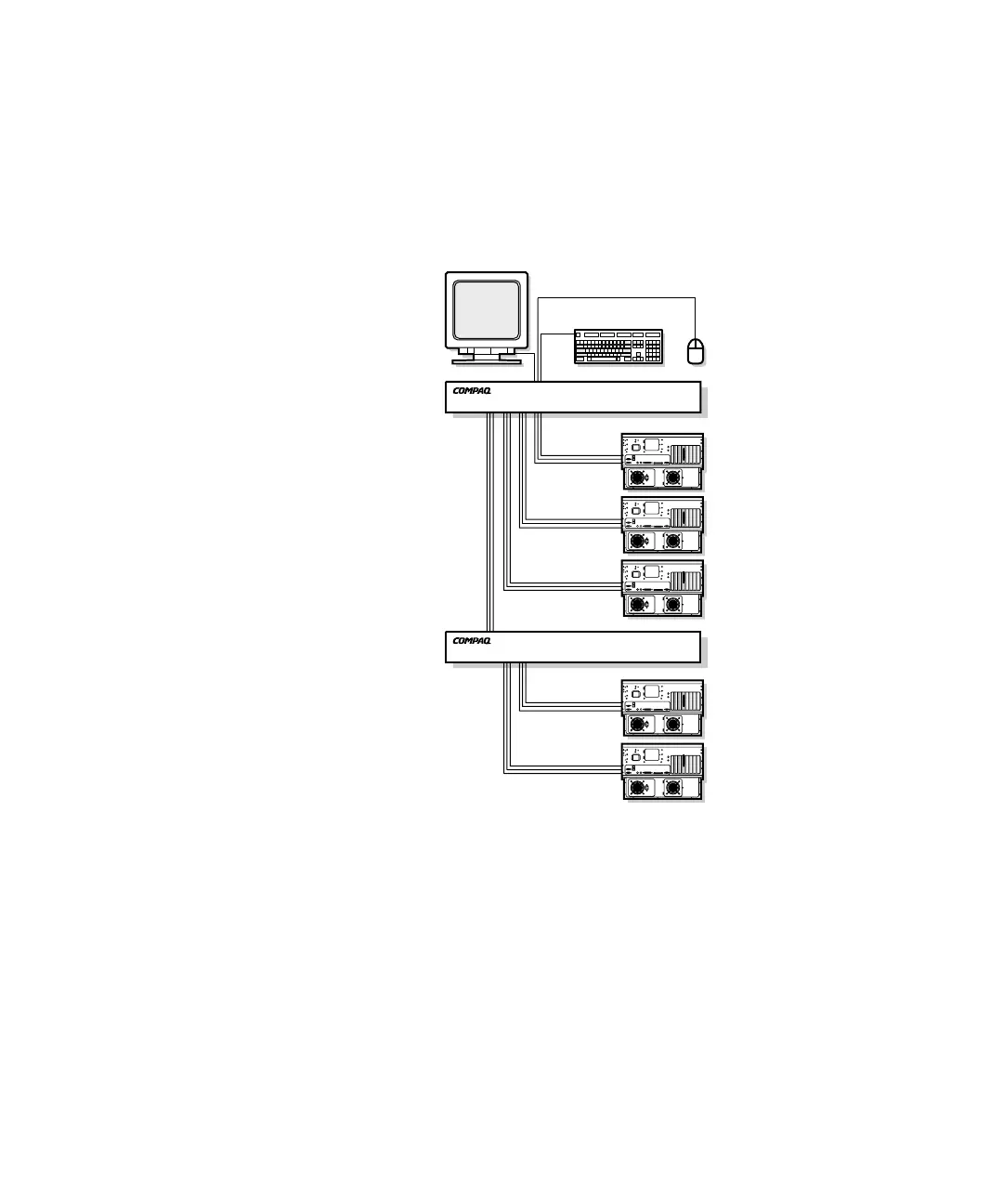

Figure 1-2. Tiered configuration
