Using the On-Screen Display 4-15
Compaq Confidential – Need to Know Required
Writer:
John Turner
Project:
Compaq Server Console Switch User Guide
Comments:
Part Number:
1141555-002
File Name:
e-ch4 Using the OSD.doc
Last Saved On:
8/22/00 10:37 AM
Behavior — WATCH, monitor activities of user A. Cannot use the keyboard
or mouse to pass the keystrokes or mouse movements to the currently selected
computer.
Example 3 — User A is accessing computer 2-4 while user B wants to scan
computer 2-6.
Behavior — SKIP, because user A occupies the primary port connection at
Port 2 making 2-6 unavailable to user B.
Example 4 — User A is accessing computer 2-4 while user B scans
computer 3-2.
Behavior — Switch at port 3 is available to scan; no user is accessing it. Any
key pressed at the keyboard or a mouse click stops the scanning and passes the
keystrokes or mouse movements to the currently selected computer.

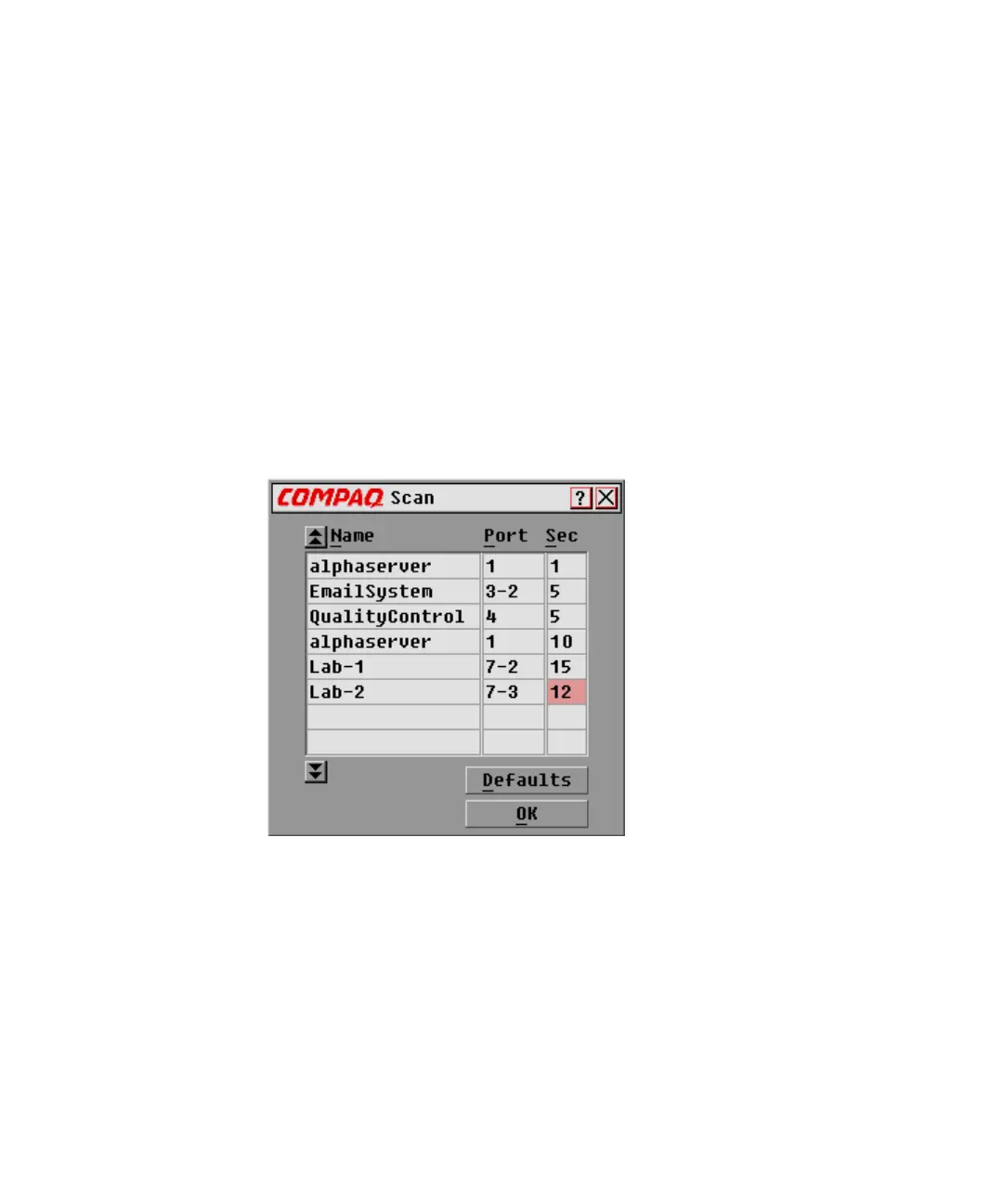

Figure 4-9. Scan screen
