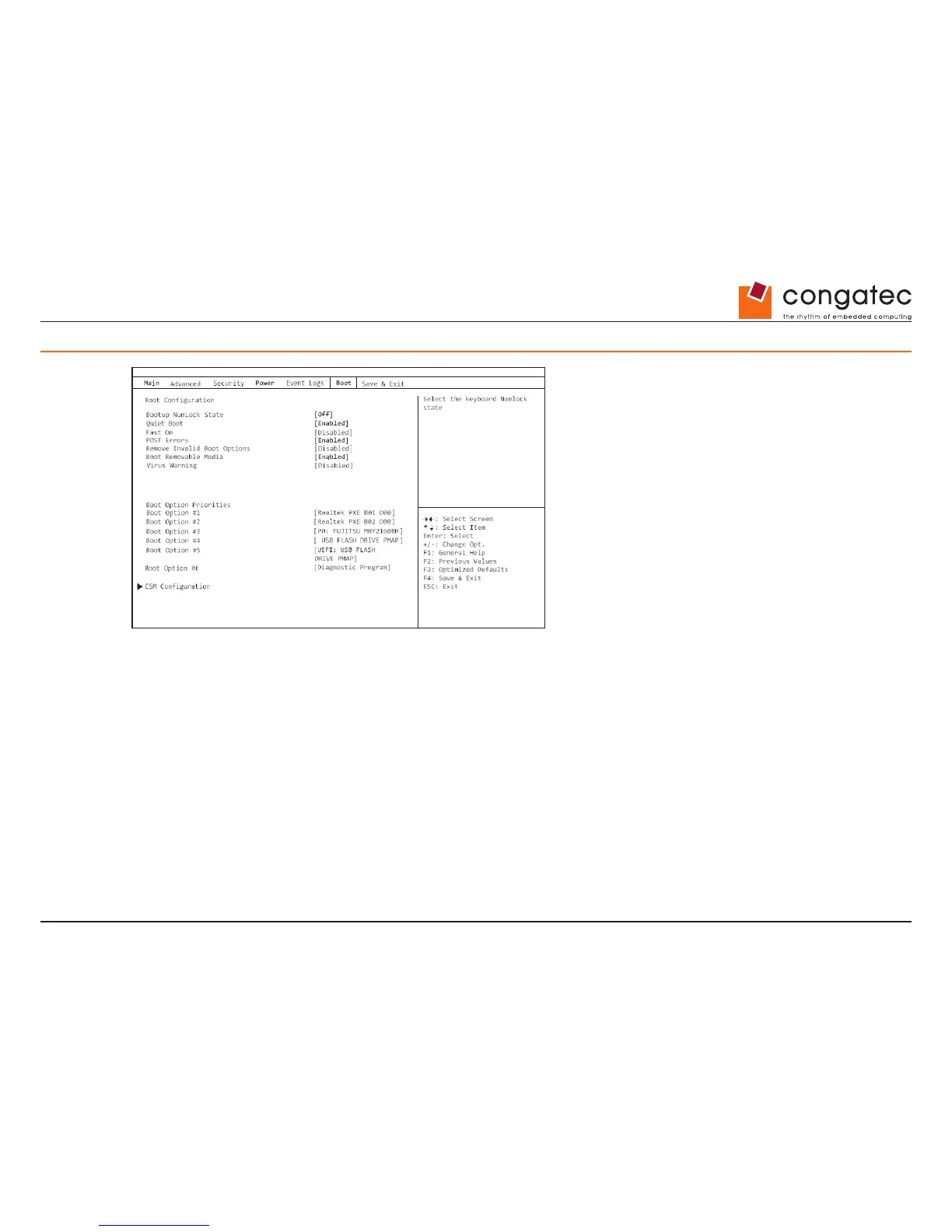

21 Boot Menu – System boot

Boot Menu – System boot

The sequence of the drives from which booting is to occur can be specied here.

Up to eight drives (can include USB ports, for example)

can be listed here.
