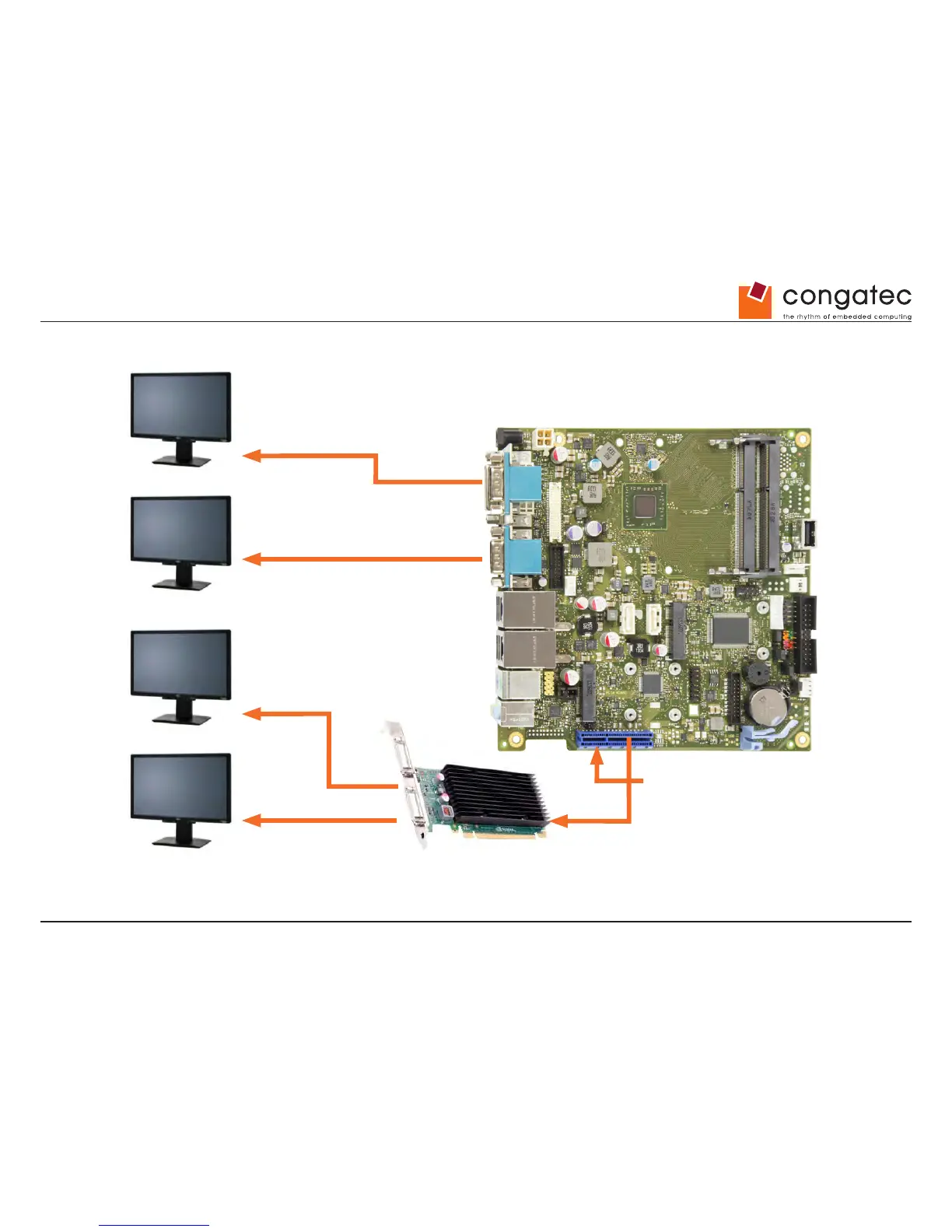

5.11 Internal & External graphics use in parallel

DVI Monitor

DVI

DisplayPort or DVI

(via Converter Cable)

DVI Monitor

DisplayPort or DVI Monitor

Note: This is a PCIe x4 slot, not a

PEG slot.

Note: Maximum power consumption of PCIe

graphics controller must be considered.

PCIe graphics controller
