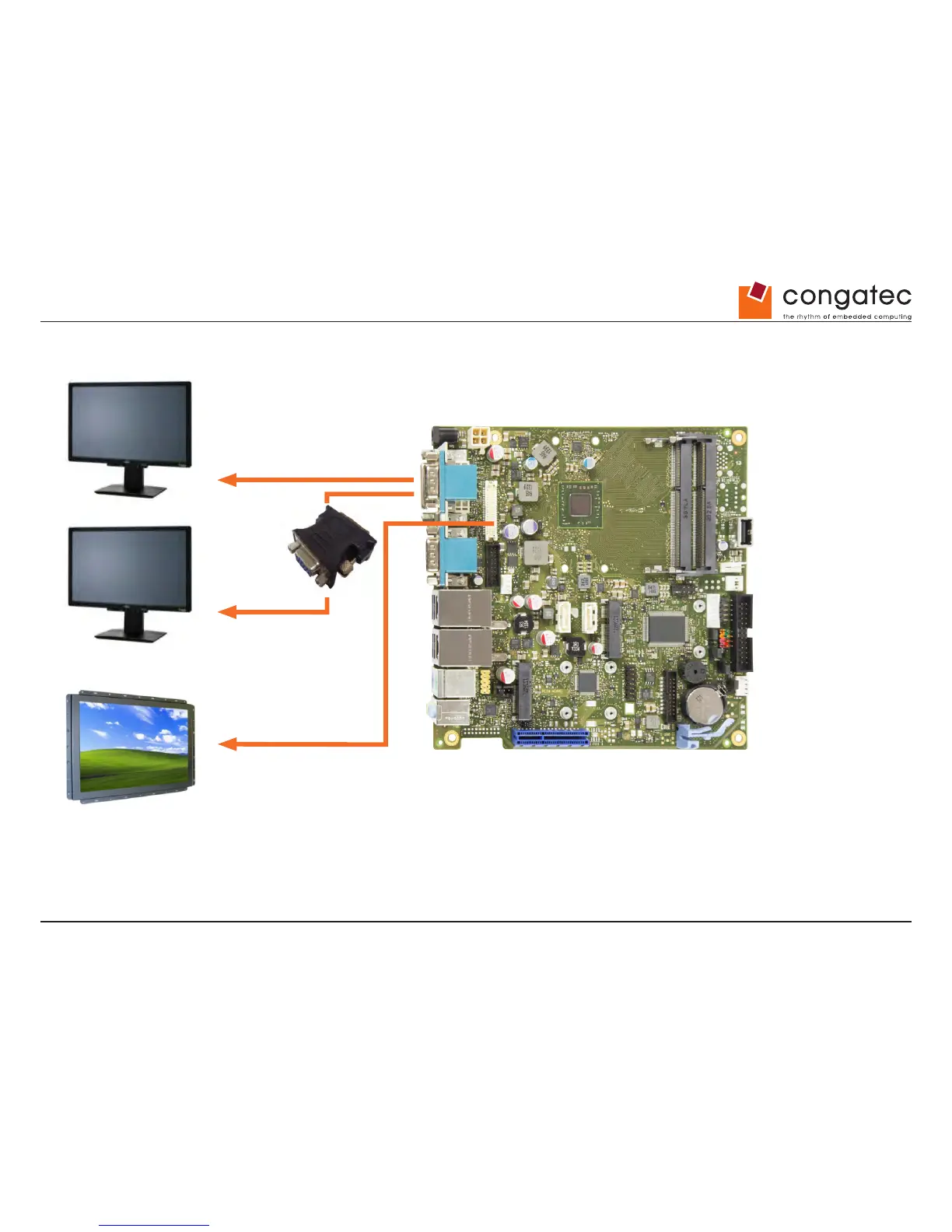

5.10 DVI or VGA plus LVDS

DVI Monitor

Analog VGA Monitor via DVI/

VGA Interface Connector

LVDS Panel

Digital (DVI) monitor or analog (VGA) monitor via DVI/VGA interface connector plus

internal LVDS Display. Dual Independent Display/Extended Desktop

Dual channel 24-bit LVDS support.

Maximum pixel rate: 138.2M

Maximum LVDS screen resolution: 1920 x 1200 @ 60Hz
