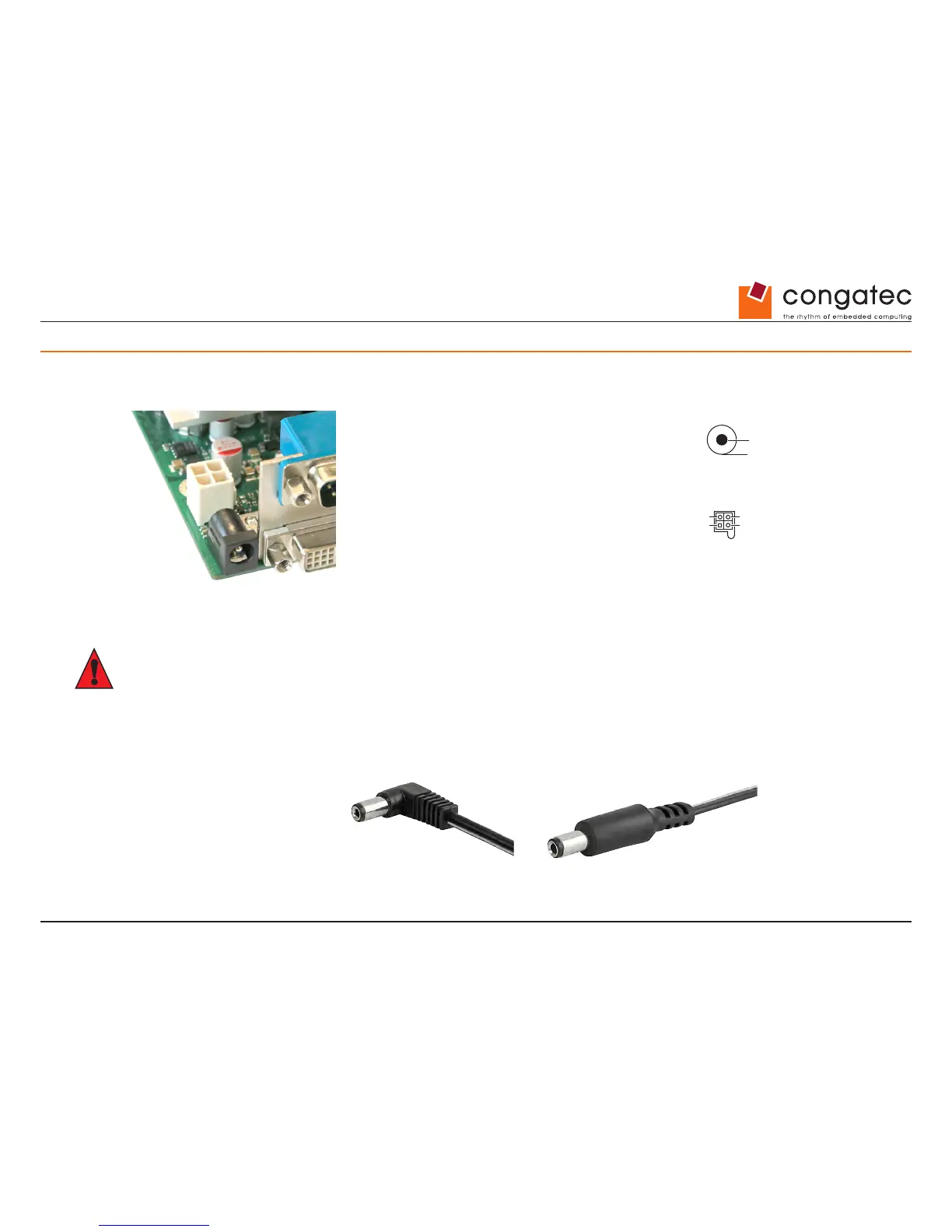

6 Power Supply Features
6.1 12V / 19-24V DC Connector
Internal and external DC input can be powered by 12V or 19-24V (auto range switching).
Caution
Internal and external DC input must never be powered simultaneously.
Input current for external DC connector: maximum 5A, maximum 60W @ 12V, maximum 100W @ 19-24V
Recommended plug for external AC adapter:
• Ø 2.5mm / 5.5mm
• contact length ~ 10-11mm
• Angle plug or straight plug
Drive Power
COM 3
LPT
Front Panel
Mouse
Keyboard
Power
COM 2
DisplayPort
PCIe X4
FAN 2
1
2
Front Panel 1 = HDD_LED+
2 = Power_LED+
3 = HDD_LED-
4 = Power_LED-
5 = Reset_Switch
DC Plug
Jumper Settings
1 = + DC
2 = GND
12 V max. 60 Watt
19-24 V max. 100 Watt
Plug: 2.5 / 5.5 / 11 mm
Power 1 = GND
2 = GND
3 = + DC 12 / 19-24 V
4 = + DC 12 / 19-24 V
6 = Power_Switch
7 = Reset_Switch
8 = Power_Switch
9 = Reserved
Drive Power 1 = Vcc 5 V max. 2 A
2 = GND
3 = GND
4 = +12 V max. 2 A
FAN 1
SPDIF
Front Audio
mini PCIe
mSATASATA0 SATA1
LAN
2x USB 2.0
LAN
2x USB 2.0
LVDS
Backlight
TPM GPIO
Buzzer
Battery
2x USB 3.0
2x USB 2.0
LVDS
CPU
Memory Module 1 Memory Module 2
BIOS Recovery Settings
LVDS Supply Settings
USB 2.0
LVDS BL Control Settings
System Power On Settings
1
1
Fan 1 (CPU)
1 = GND
2 = 12 V PWM mode, 4..12 V 3-pin mode
3 = Sense
4 = PWM
1
Fan 2 (Chassis)
4
2
3
2
1
DC DVI-I DisplayPort
COM1 COM2
BIOS Recovery Settings
Normal Operation (default)
Normal Operation (default)
LVDS Supply Settings
LVDS BL Control Settings
System Power On Settings
Always on
BIOS Recovery / Reset to Defaults
VCC 3.3 V
(default)
VCC 5 V
Analog
(default)
PWM
