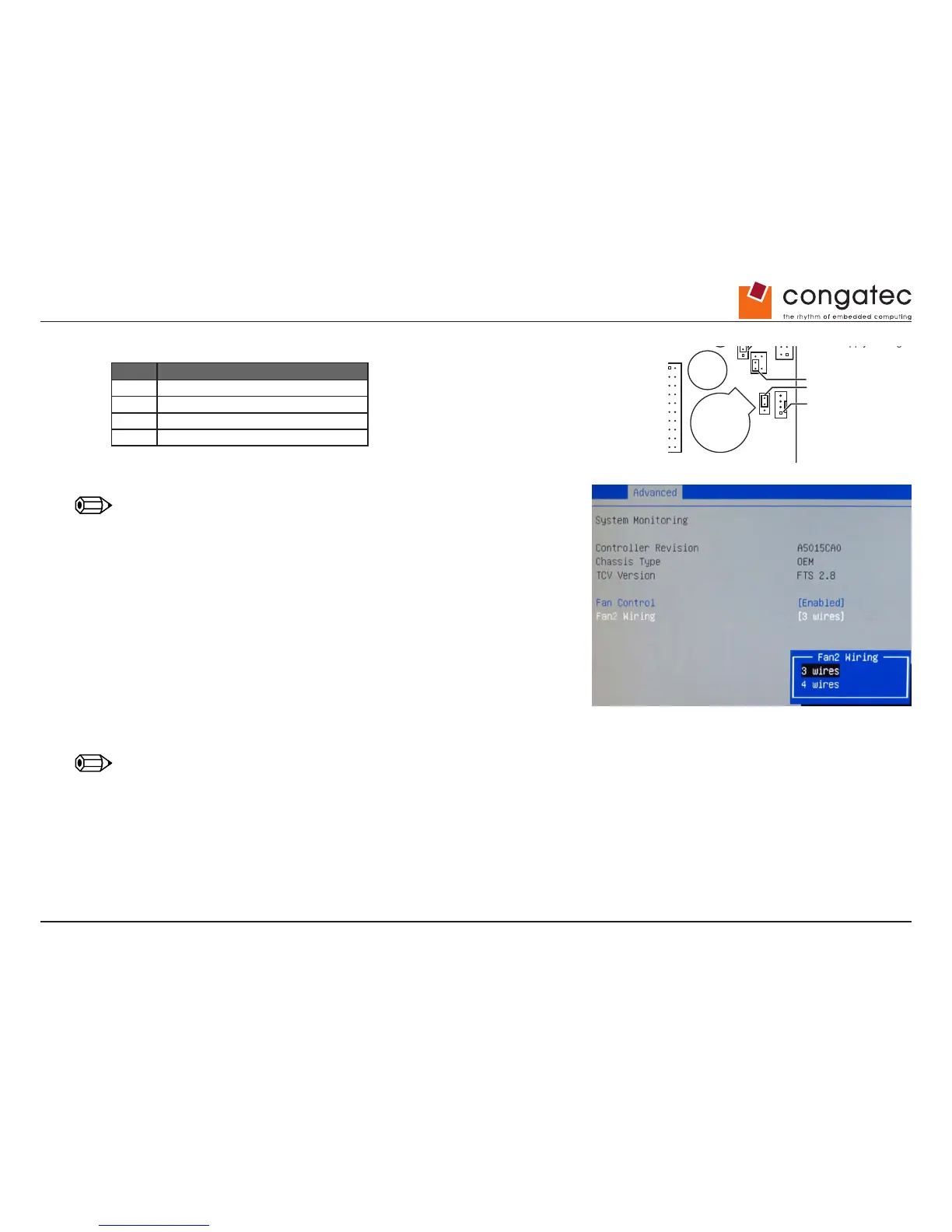

7.12 Fan Connector
Pin Signal
1 GND
2 12V in PWM mode / 4V-12V in 3-Pin mode
3 FAN Sense
4 FAN PWM
Note
Fan 1 (Processor) supports 4-wire “PWM” only.
Fan 2 (Chassis) can be used in 4-wire or 3-wire mode (BIOS Setup)
If a 3-wire fan is connected, but BIOS Setup is set to “4 wires” (= Default) the fan will
operate at full speed (12V).
In 3-wire mode, the default minimum operating voltage is set to ~ 4V.
Fan current must not exceed 1A per connector.
Minimum fan speed can be customized via SilentFanCong-Manager tool.
Note
TCV Version shows the BIOS internal version of the System Monitoring parameters. After they have been customized by the SilentFanCong
tool, the TCV Version in BIOS Setup is automatically changed to “OEM”.
