7 Internal Connectors

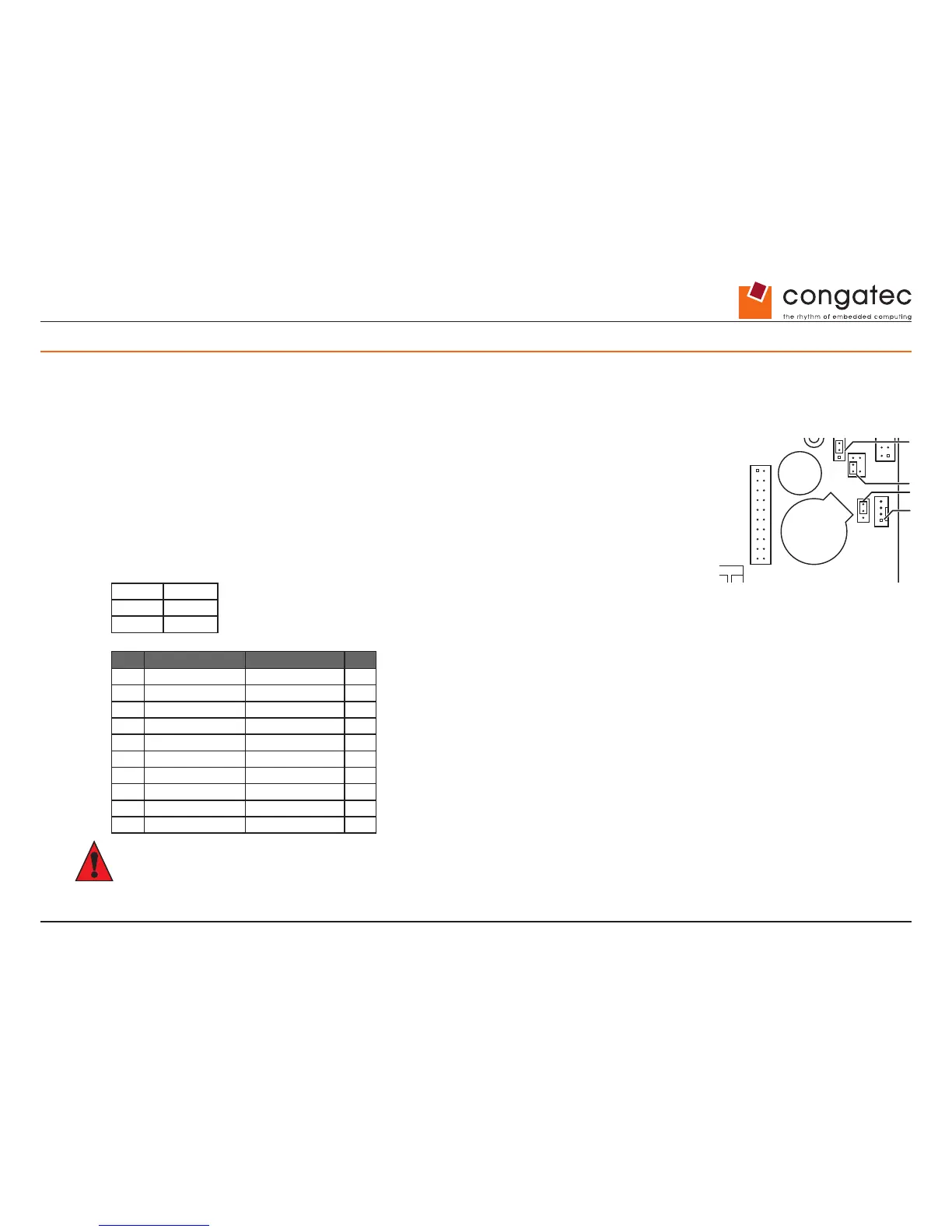

7.1 Feature Connector
8 bit 3.3V General Purpose Input/Output (GPIO) in order to attach any digital device or LEDs. Feature Connector provides additional power for
internal devices (3.3V; 5V; 12V; 5Vaux; max. 1.5A per pin)
Connector Type: CompuPack R-DRK2-20-S3-SMT
Limited conga-IGX output current:
The maximum conga-IGX output power available via (Mini-) PCIe- connector, fan-connectors, USB-connectors,
GPI/O, LVDS/backlight-connector, and drive power connector is limited.
Maximum overall output current for each voltage:
+3.3V 5A
+5V 4.5A
+12V 4.5A
Pin Signal Signal Pin
1 GPI/O_0 GPI/O_1 2
3 GPI/O_2 GPI/O_3 4
5 GPI/O_4 GPI/O_5 6
7 GPI/O_6 GPI/O_7 8
9 VCC_3.3V GND 10
11 VCC_3.3V VCC_5Vaux 12
13 reserved GND 14
15 reserved GND 16
17 GND VCC_5V 18
19 VCC_12V VCC_12V 20
Caution
Maximum current per power pin is 1.5A.
Drive Power
COM 3
LPT
Front Panel
Mouse
Keyboard
Power
COM 2
DisplayPort
PCIe X4
FAN 2
1
2
Front Panel 1 = HDD_LED+
2 = Power_LED+
3 = HDD_LED-
4 = Power_LED-
5 = Reset_Switch
DC Plug Jumper Settings1 = + DC
2 = GND
12 V max. 60 Watt
19-24 V max. 100 Watt
Plug: 2.5 / 5.5 / 11 mm
Power 1 = GND
2 = GND
3 = + DC 12 / 19-24 V
4 = + DC 12 / 19-24 V
6 = Power_Switch
7 = Reset_Switch
8 = Power_Switch
9 = Reserved
Drive Power 1 = Vcc 5 V max. 2 A
2 = GND
3 = GND
4 = +12 V max. 2 A
FAN 1
SPDIF
Front Audio
mini PCIe
mSATASATA0 SATA1
LAN
2x USB 2.0
LAN
2x USB 2.0
LVDS
Backlight
TPM
GPIO
Buzzer
Battery
2x USB 3.0
2x USB 2.0
LVDS
CPU
Memory Module 1 Memory Module 2
BIOS Recovery Settings
LVDS Supply Settings
USB 2.0
LVDS BL Control Settings
System Power On Settings
1
1
Fan 1 (CPU)
1 = GND
2 = 12 V PWM mode, 4..12 V 3-pin mode
3 = Sense
4 = PWM
1
Fan 2 (Chassis)
4
2
3
2
1
DC DVI-I DisplayPort
COM1 COM2
BIOS Recovery Settings
Normal Operation (default)
Normal Operation (default)
LVDS Supply Settings
LVDS BL Control Settings
System Power On Settings
Always on
BIOS Recovery / Reset to Defaults
VCC 3.3 V
(default)
VCC 5 V
Analog
(default)
PWM
