Congatec conga-IGX - 12 V; 19-24 V Operation Requirements; Maximum Input Power Caution

Copyright © 2014 congatec AG IGX1m02 39/134
6.2 Requirements for 12V / 19-24V operation

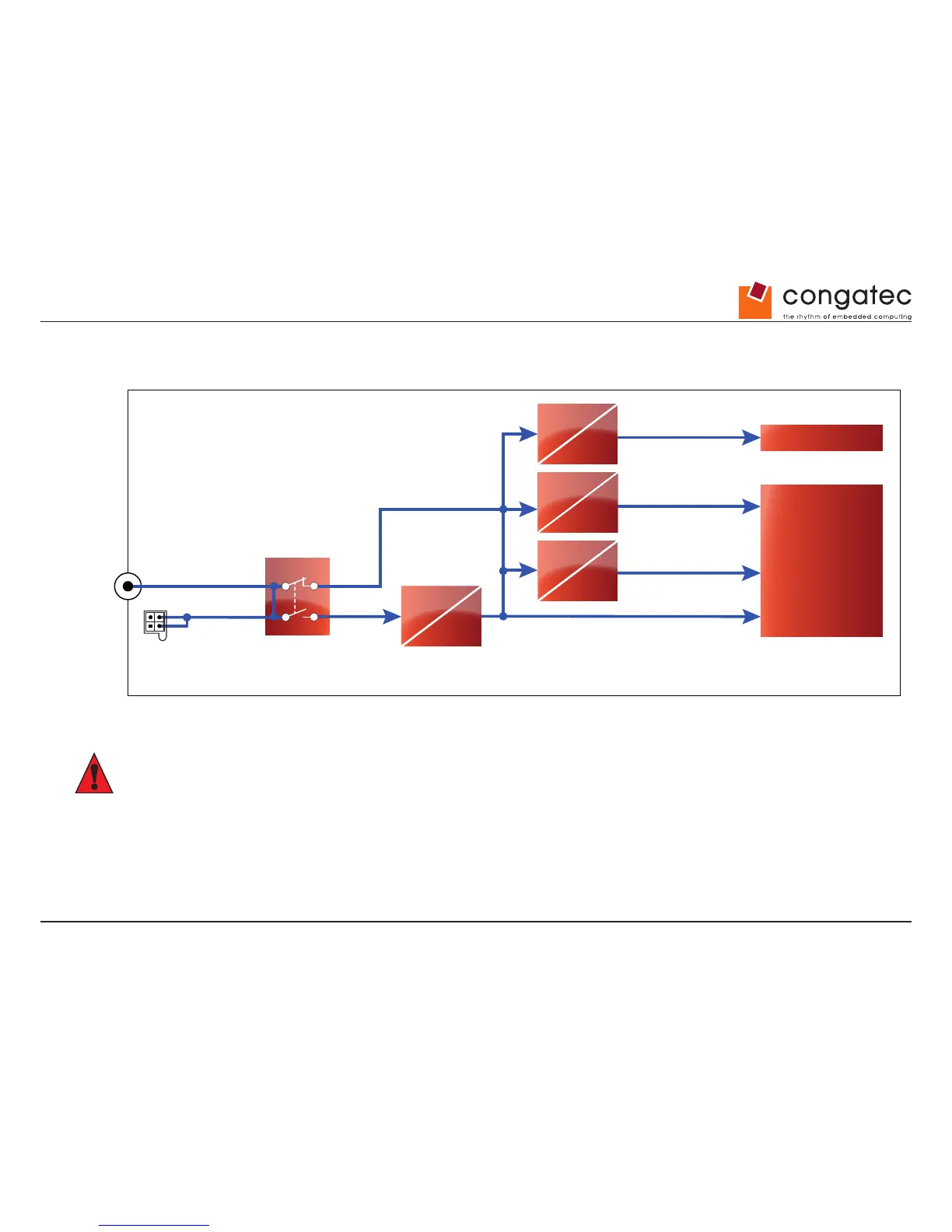

Simplied functional diagram for major onboard voltage converters
Auto Input
Voltage Range
Switch
Internal DC
Connector
max. 8A
External DC
Connector
max. 5A
CPU
Other
Devices
Core Voltage max. 25 W
5 V max. 4.5 A
12 V max. 4.5 A19-24 V12, 19-24 V
12, 19-24 V
12 V
3.3 V max. 5 A
DC
DC
DC
DC
DC
DC
DC
DC
“Other Devices” = any device that can be attached to the conga-IGX, such as fans, internal/external USB devices, (Mini-) PCIe controllers,
mSATA modules, LVDS display + inverter, drives, GPIO devices etc.
Caution
Overall conga-IGX input power must never exceed 100W.
