CONQUEST 90 - Concentric Vertical Vent Kit

+
1Etf
1J]
48"MAX.
t=I\ use2" x 3" INCREASER
\!..J IF VENT IS 3" PIPE
(FIELD SUPPLIED)
11. Any alterations to this kit not
authorized by these instructions
or the use of any components or
accessories not design certified
by the manufacturer may result
in improper furnace operation.
The manufacturer cannot and
will not be responsible for injury
or damage caused by the use of
unrecommended components or
accessories.
IMPOATANT:KEEPTHE
COMBUSTION AIR INTAKE PIPE
CONNECTION ABOVE THE VENT
PIPE CONNECTION INSIDE THE
BUILDING. IF THE AIR INTAKE
PIPE CONNECTION MUST BE
LOWER THAN THE VENT PIPE
CONNECTION, INSTALL THE A1R
INTAKE CONDENSATE TRAP AS
SHOWN IN FIGURE 36.
IMPORTANT: ALWAYS ORDER
THE CORRECT TERMINATION KIT
FOR ANY AND ALL HORIZONTAL
VENTING.
VERTICAL CONCENTRIC VENT
KIT - RXGY - E02
This termination kit is for vertical
venVintake air runs and should be
used where extended periods of sub-
freezing weather are expected. It
applies to all sizes of the 90 Plus
furnace. The following parts are
included in the kit:
1. Vent, inlet wye and inlet pipe
assembly,
2. 4" x 2" modified reducer
coupling. DO NOT USE A
STANDARD REDUCER
COUPLING,
3. 3" 45° Street Elbow.
Install the kit as follows. Consult the
illustration, Figure 43.
1. Cut a 4-1/8" diameter hole
through the roof. If the vent
termination length must be
reduced, see step 7.
2. Remove the 4" x 2" reducer
coupling from the assembly.
From inside the structure, insert
the assembly through the roof.
The assembly must be secured
with metal strapping on the
inside of the roof to prevent
damage from prevailing winds
on the outside. Wrap the 3• pipe
passing through the roof with
insulation to center it in the
4-1/8" opening.
3.
Glue the 3" pipe to the inlet wye underside of the inlet air
at this point using the coupling and pitched roofs and
appropriate PVC primer and other obstructions. Increase the
cement.
12" minimum to keep the bottom
of the reducer coupling above
4. From the outside of the roof,
,.
'I
the expected snow level.
connect the 4" x 2" reducer
coupling to the inlet pipe using 7. Connect the vent pipe from the
the appropriate PVC primer and furnace to the 2" vent at the
cement. Caulk around the termination.
A 2" to 3" reducer
reducer coupling on the outside (not supplied) is required
if using
of the roof for a weatherproof
a 3" vent pipe.
seal.
8. Connect the inlet pipe from the
5.
When properly installed the vent furnace to the wye. A 3" 45°
pipe extends outward 24" above street elbow is provided for
the roof fine, any other making this connection.
A 3" to
obstructions, or the expected
2" bushing is required if using a
snow level. 2" inlet pipe.
6. NOTE: If it is necessary to 9.
Support all horizontal pipes
shorten the assembly,
cut equal
every three feet.:Horizontal pipe
amounts from both the inlet and
runs must slope upward, away
vent pipes.
A minimum of 12"
from the furnace, at least 1/4
11
must be maintained between the per foot of run. The vent outlet

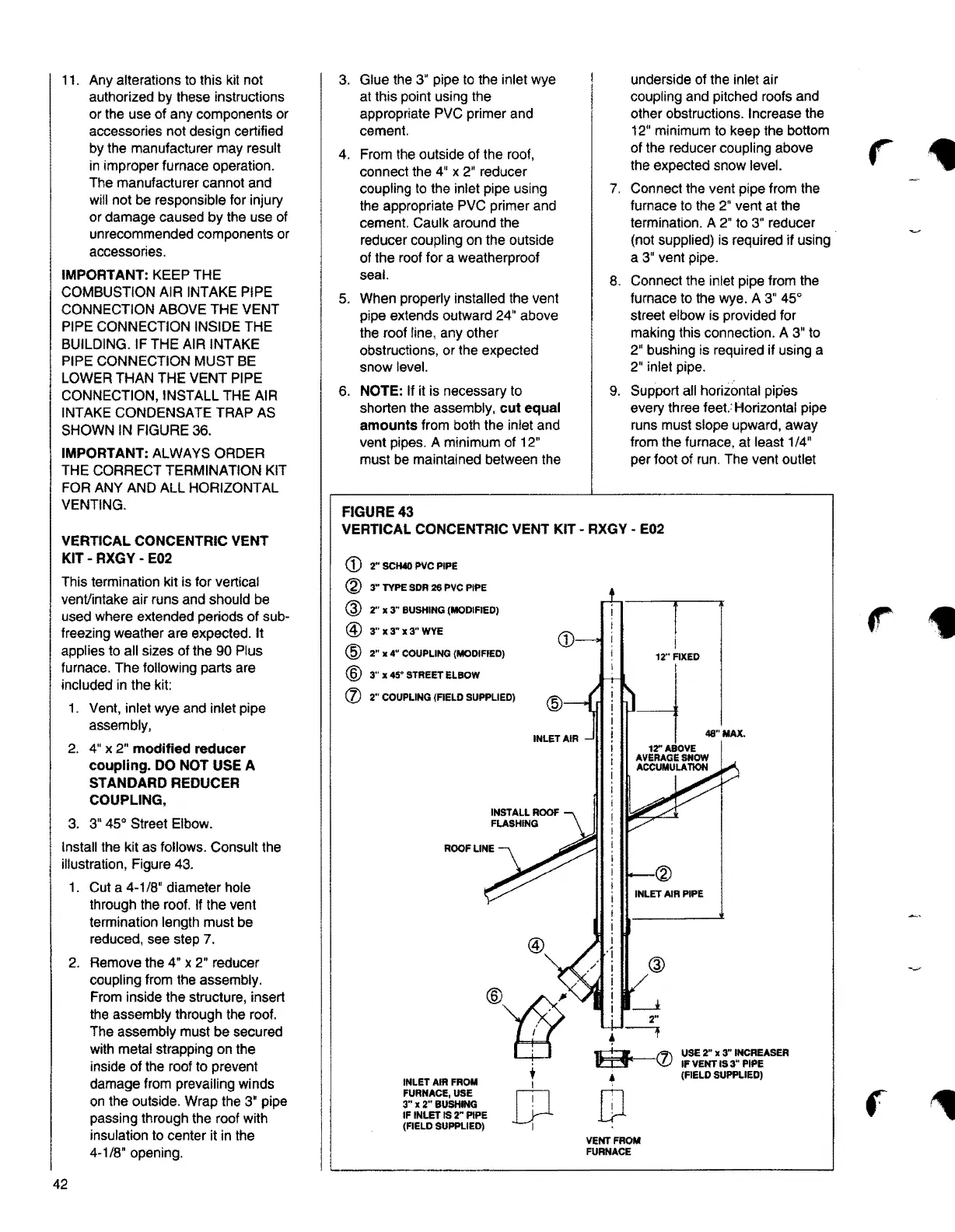

FIGURE43
VERTICAL CONCENTRIC VENT KIT - RXGY - E02
(D 2" SCH40 PVC PIPE
® 3" TYPE SDR 26 PVC PIPE
@ 2" x 3" BUSHING (MODIFIED)
@) 3"x3"x3"WYE
@ 2" x 4" COUPLING (MODIFIED)
@ 3" x 45' STREETELBOW
{J) 2" COUPLING {FIELDSUPPLIED)
ROOF LINE
INLET AIR
FROM
FURNACE, USE
3" x 2" BUSHING
IF INLET IS 2" PIPE
(FIELD SUPPLIED)
'
VENT FROM
FURNACE
