NOTE: the following steps should
take place with the furnace in the
horizontal position.
Refer to Figure 55 for steps 6
through 11.
6. Locate the parts bag in the
burner compartment. Install two
plastic plugs@in the side of the
jacket from bottom side up.
7. Fill the trap assembly(z)with
1/2 cup of water.
8. Attach the gasket@onto the
trap assembly so that the gasket
holes line up with the holes on
the trap assembly.
9. Insert the trap assembly with
gasket up through the existing
hole in the jacket and secure
from inside the jacket Use the
two screws provided. Screw
down into the two "ears" molded
into either side of the trap. Snug
the trap assembly against the
furnace jacket compressing the
gasket slightly to eliminate any
air leaks.
Donot overtighten!
10. Attach the black molded rubber
90° elbow@to the straight
spout on the trap top using a
black nylon clamp
@. Attach
the other end of the rubber
CONDENSATE LINE VENT FOR
elbow to the spout @ located HORIZONTAL INSTALLATIONS
on the exhaust transition@
The condensate line must be vented
using a black nylon clamp.
in all installations for proper trap
11. Attach the end of the ribbed tube drainage. Since the trap is immedi-
@ to the 45° elbow molded into ately under a horizontal unit, a vent
the top of the trap assembly
cannot be installed at the trap as with
using a black nylon clamp.
upflow and downflow installations.
Make sure all clamp connections
►
Route the drain line out from under
are tight. Refer to the installation the unit. Install a vent tee with a 5"
instructions for information on riser as soon as the condensate line
how to properly install conden- passes out from under the unit.
sate drain lines, neutralizers or
condensate pumps.
V

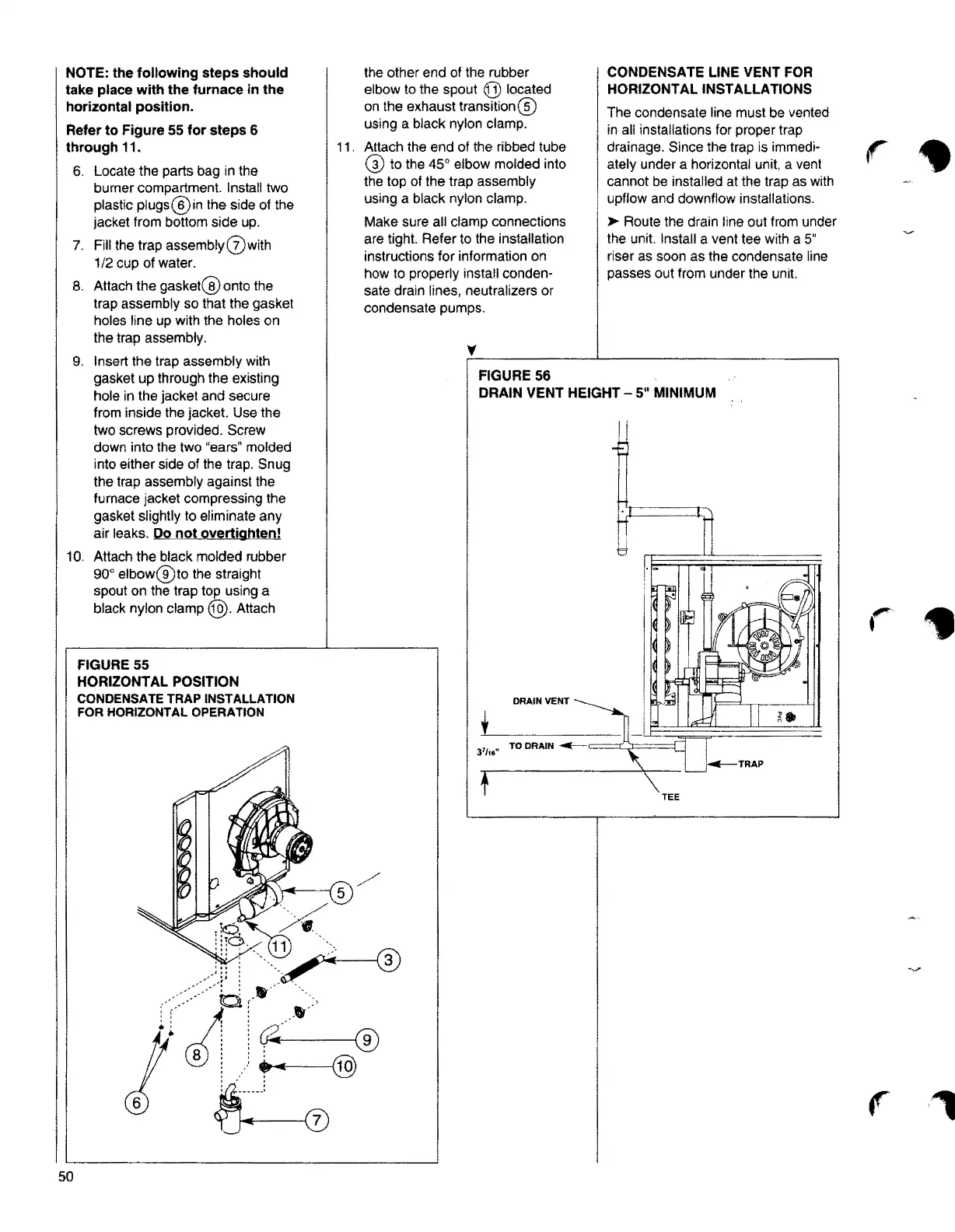

FIGURE 56
DRAIN VENT HEIGHT - 5" MINIMUM
FIGURESS
HORIZONTAL POSITION
CONDENSATE TRAP INSTALLATION
FOR HORIZONTAL OPERATION
,., ' . > 3
,/<? : •.. :· ·.,
~@
t
DRAIN VENT -----...
TEE
.---®
