CPG Compuprint SP 40 - Requested Tools for Diagnostics

Maintenance Manual SP 40
Rev. 005
102
Chapter 5
Test & Diagnostic
5.9 Requested Tools
For a correct maintenance are necessary the following parts:
1) Single sheet paper 80 gr/m2 (0.1 mm thickness) N.A.
2) RS232 Serial Loop-back T.B.D.
3) Parallel loop-back P.N. 78900884-001
4) Operator Panel with display (recommended) P.N. 78901347-001
5) Magnet for Interlock P.N. 78201635-001
6) Scanner module T.B.D.
5.9.1 Operator Panel with LCD
This special operator panel has been issued to help when the T&D activities have been run.
The position of the keys and the leds are as indicated in the figure below.
Follow the chapter 2.6 how to remove the standard operator panel.
The cable of this tool is plug 1 to 1 in the controlelr connector.

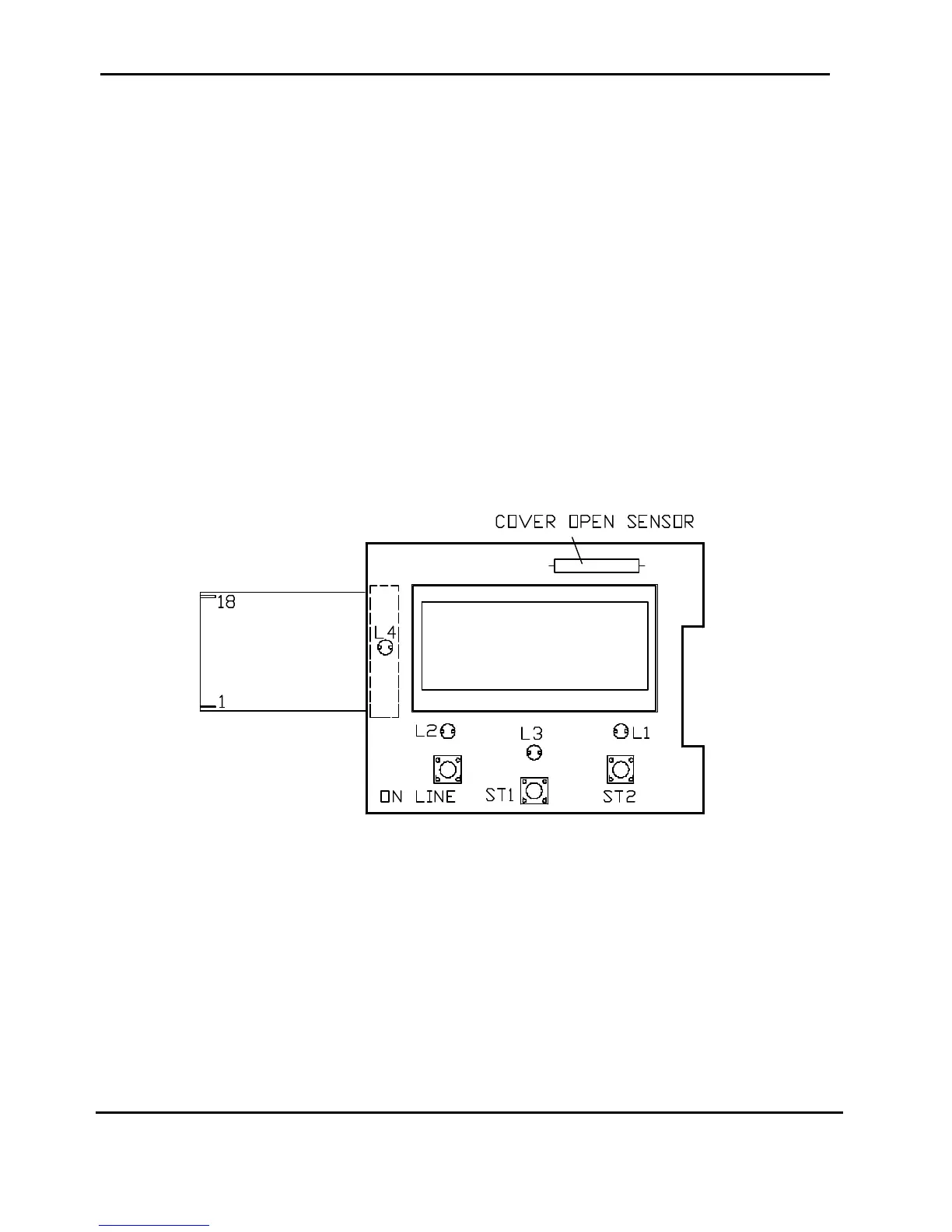

Fig. 5.3 Operator Panel with display for T&D activities
5.9.2 RS232 Serial Interface Loop-Back Connector
TX (03) __________________________ (02) RX
RTS (07) __________________________ (08) CTS
DCD (01) __________________________ (09) SRTS
DTR (04) __________________________ (06) DSR
Fig. 5.4 Serial I/F Loop-back
