Maintenance Manual SP 40
Rev. 005
115
Chapter 6
Paper Specification
6.3 Passbooks
Minimum Maximum
Paper Weight 75 120 g/m
2
Thickness
Multiple Page Passbooks
Horizontal Fold 0.28 mm (0.011 in.) 1.80 mm (0.071 in.)
Thickness difference across the fold of an open passbook
Horizontal Fold - 1.52 mm (0.059 in.)
Vertical Fold - 1.52 mm (0.059 in.)
Single Page Passbook or Ledger Cards 0.18 mm (0.0071 in.) 0.28 mm (0.011 in.)
Covers 0.18 mm (0.0071 in.) 0.46 mm (0.018 in.)
Table 6.2 - Passbook Dimensions
• Passbooks with torn, folded, creased, incomplete or warped pages or covers should not be used.
• Printing on or across holes, edges, cut outs or folds is not permitted.
• Passbook covers must be of uniform thickness under the printing area.
• The fold of all pages and the stitching must coincide with the cover fold. The stitches should be spaced at 6
to 10 stitches per inch.
• Fiber flow on the inner sheets should be parallel to the center fold.

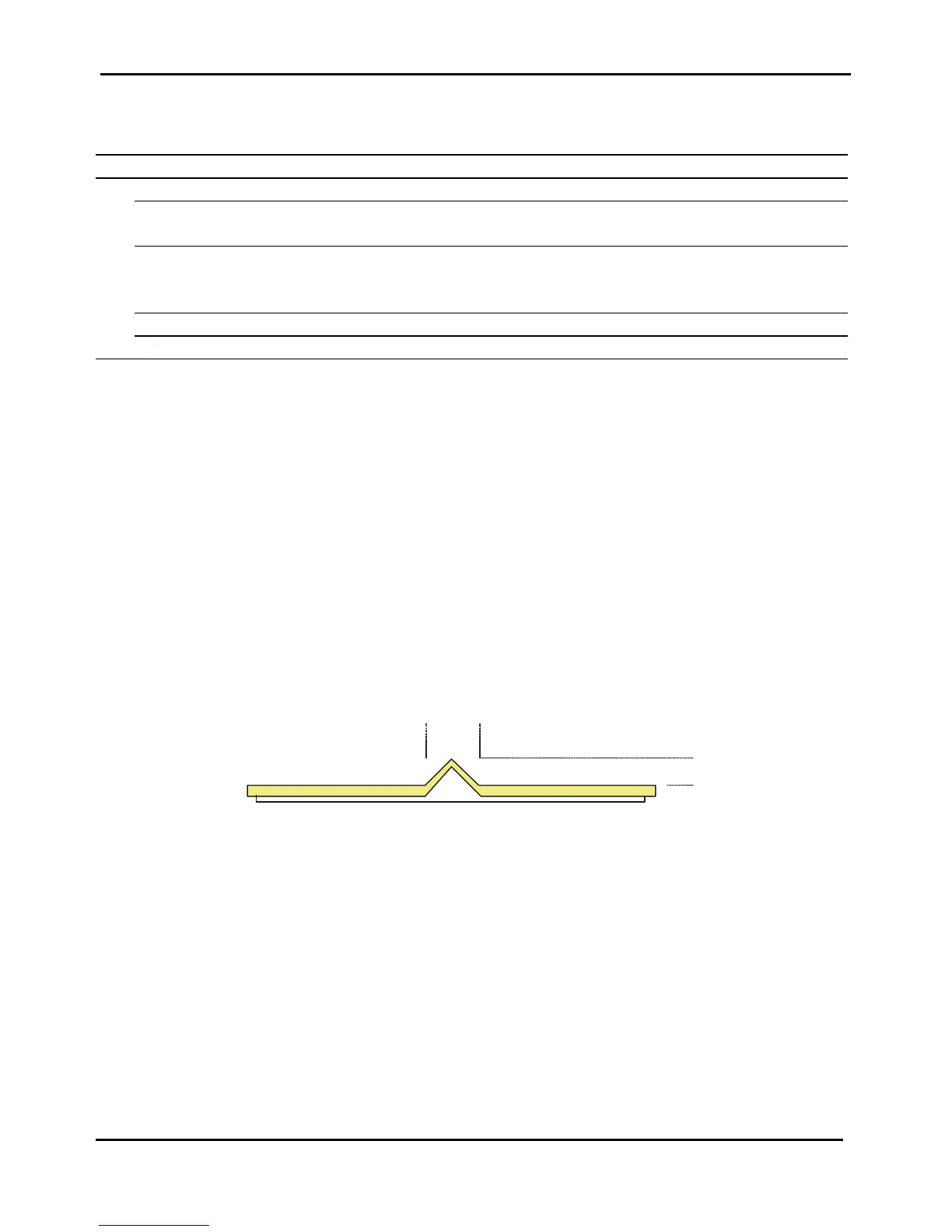

• The cover bulge and stitches (spine) must not exceed the following dimensions:
