Maintenance Manual SP 40
Rev. 005
131
Chapter 8
Mechanical Adjustments
8.4 Carriage Belt Adjustment
The correct belt tension is assured by the spring that keep under proper mechanical tension the support of the pulley
on the right side of the vertical frame.
Standard value: 6-7 mm
Tool: Feeler gauge
Check for a correct installation of the spring and the pulley support.
Light window between vertical frame and pulley bracket must be 6 ÷ 7 mm as showed in the figure below.
This measure assure a correct tension of the belt. So check for the correct measure by means of a feeler gauge. Set
it at 6 mm. and it must pass in the window. Then set the gauge at 7 mm. and it must not pass in the window.
Adjust if it is necessary fixing properly the pulley bracket in order to have correct measure of the window.
This gives a tension value of the carriage belt of 7 Kg ± 0,5Kg.

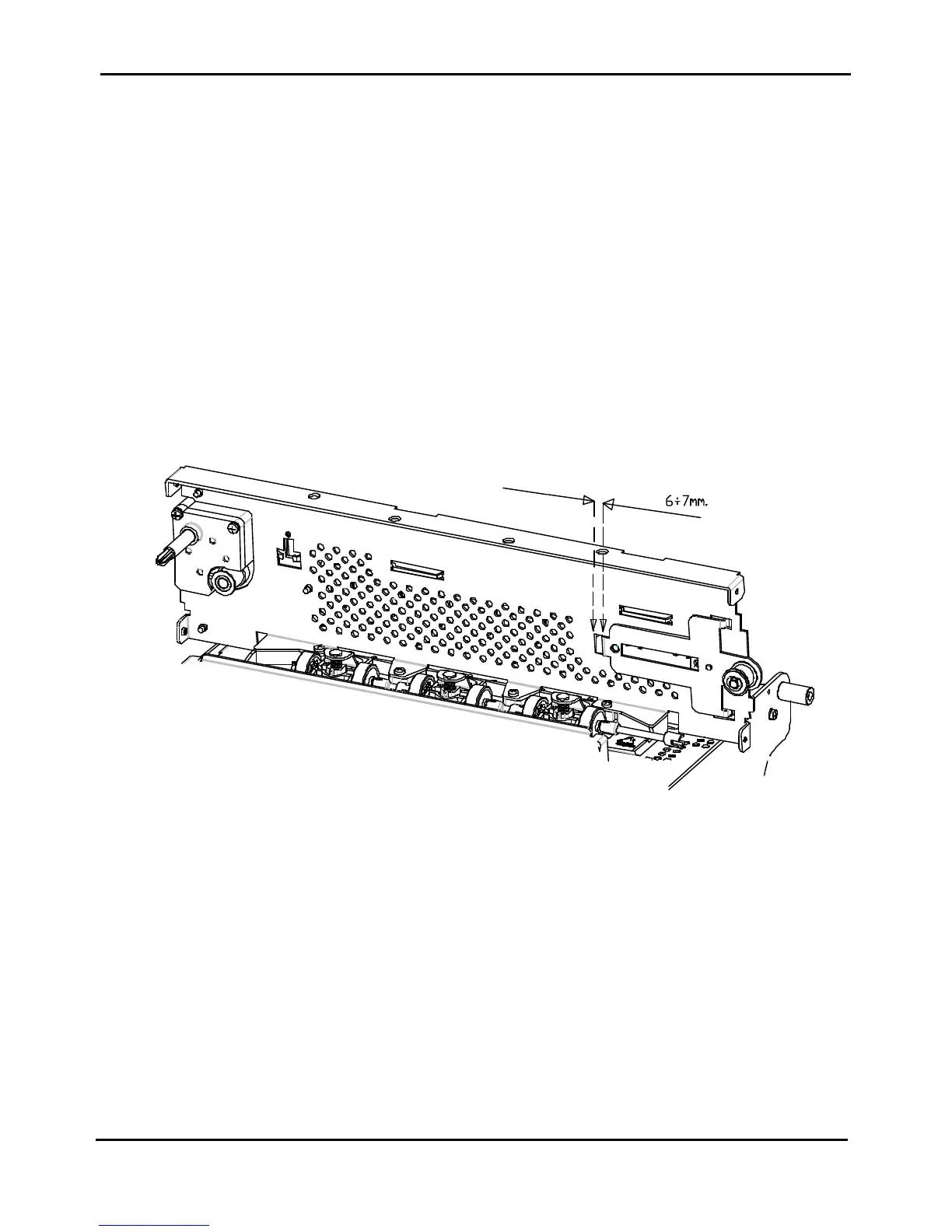

Figure 8.4 - Carriage Belt Adjustment
