CPG Compuprint SP 40 - Printer Setup via Operator Panel

Maintenance Manual SP 40
Rev. 005
51
Chapter 3
Operabilty and Configuration
3.3 Printer Set-Up Mode by Operator Panel
The following figure shows the actions flow to configure the printer using the operator panel.
Next chapters details each step.

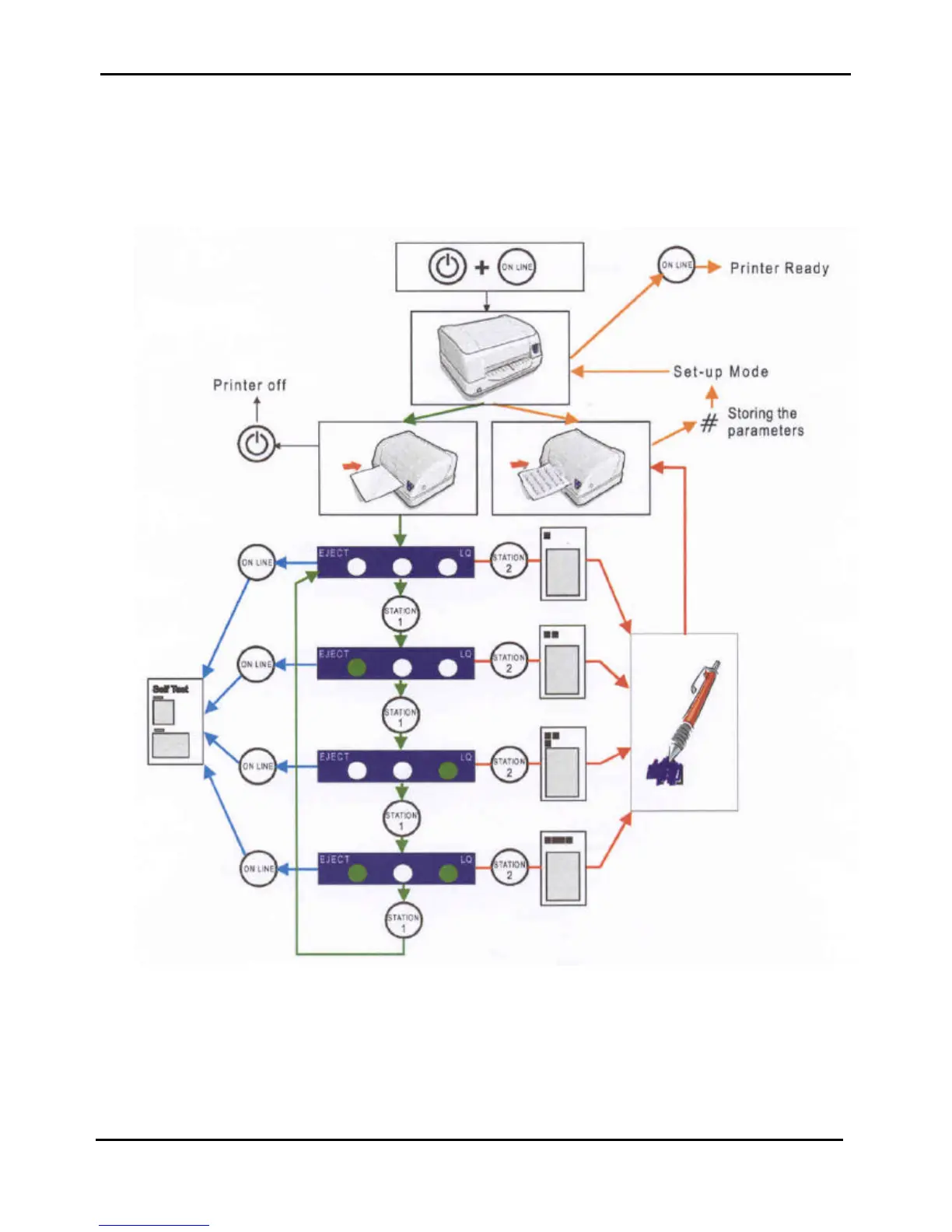

Figure 3.2 - Set-up Mode flow-chart
