Chapter 6
Paper Specification
6.2 Single Sheet
Insertion direction
Print Area
A
B
C
C
D
E

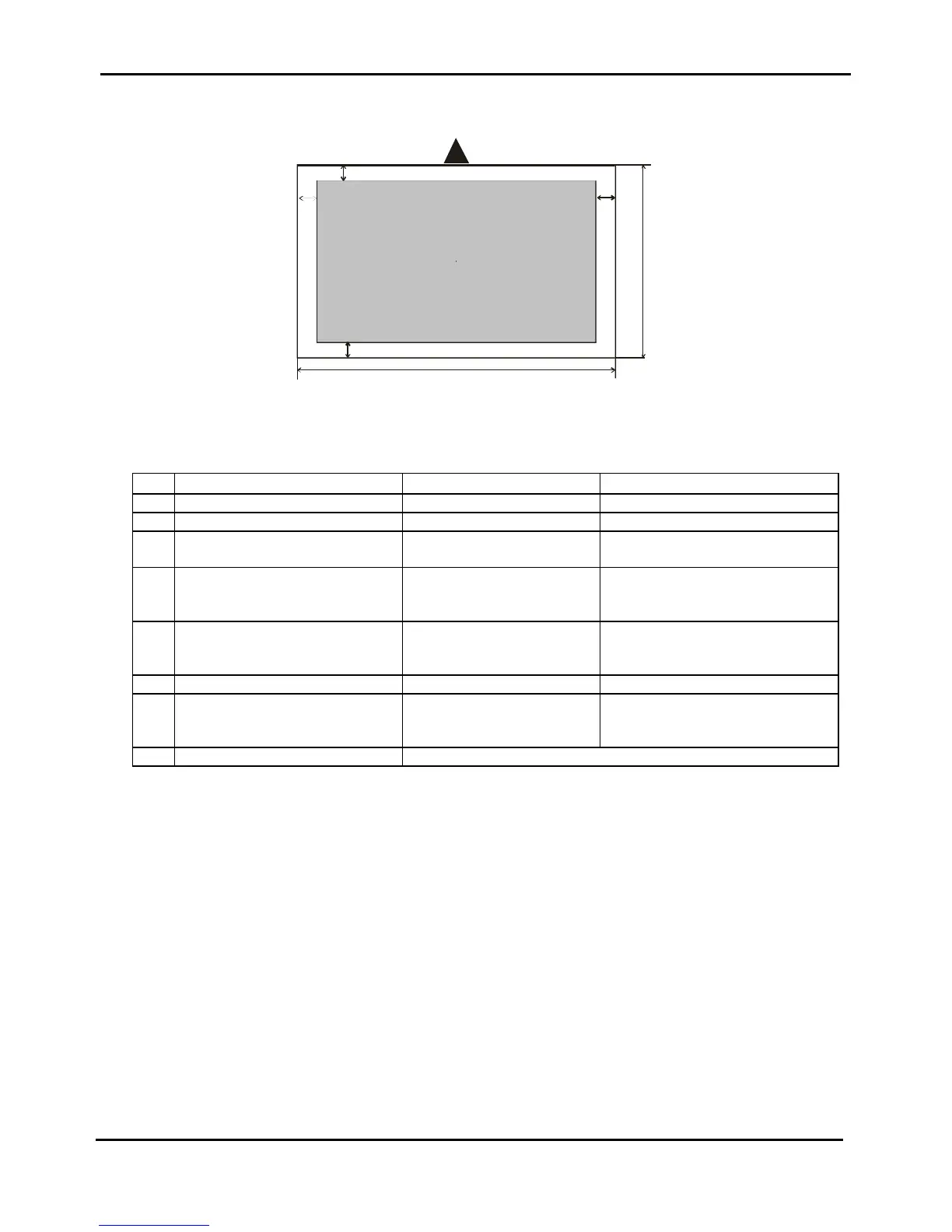

Figure 6.1 - Single Sheet Dimensions
Dimensions Maximum Minimum
A Form width 244 mm 65 mm
B Form length 470 mm 70 mm
C Distance between dot position and
left or right paper edge
- 3.0 mm
D Distance between top of the first
printed line and top margin of the
document
- 1 mm
E Distance between the lower
margin and the lower part of the
last printed line
- 6.6 mm
Weight (original) 120 g/m
2
40 g/m
2
Weight
(original + 1 to 5 copies)
1
st
75 g/m
2
other 75 g/m
2
carbon 35 g/m
2
1
st
55 g/m
2
other 45 g/m
2
carbon 14 g/m
2
Thickness Form thicker than 0,35 mm may cause print quality degradation.
Table 6.1 - Single Sheet dimensions
