CPG Compuprint SP 40 - Passbook Specifications

Maintenance Manual SP 40
Rev. 005
116
Chapter 6
Paper Specification
6.3.1 Passbooks with Horizontal Fold
Insertion direction
B
Print Area
Print Area
C
C
D
F
G
H
ABCD
ABCD

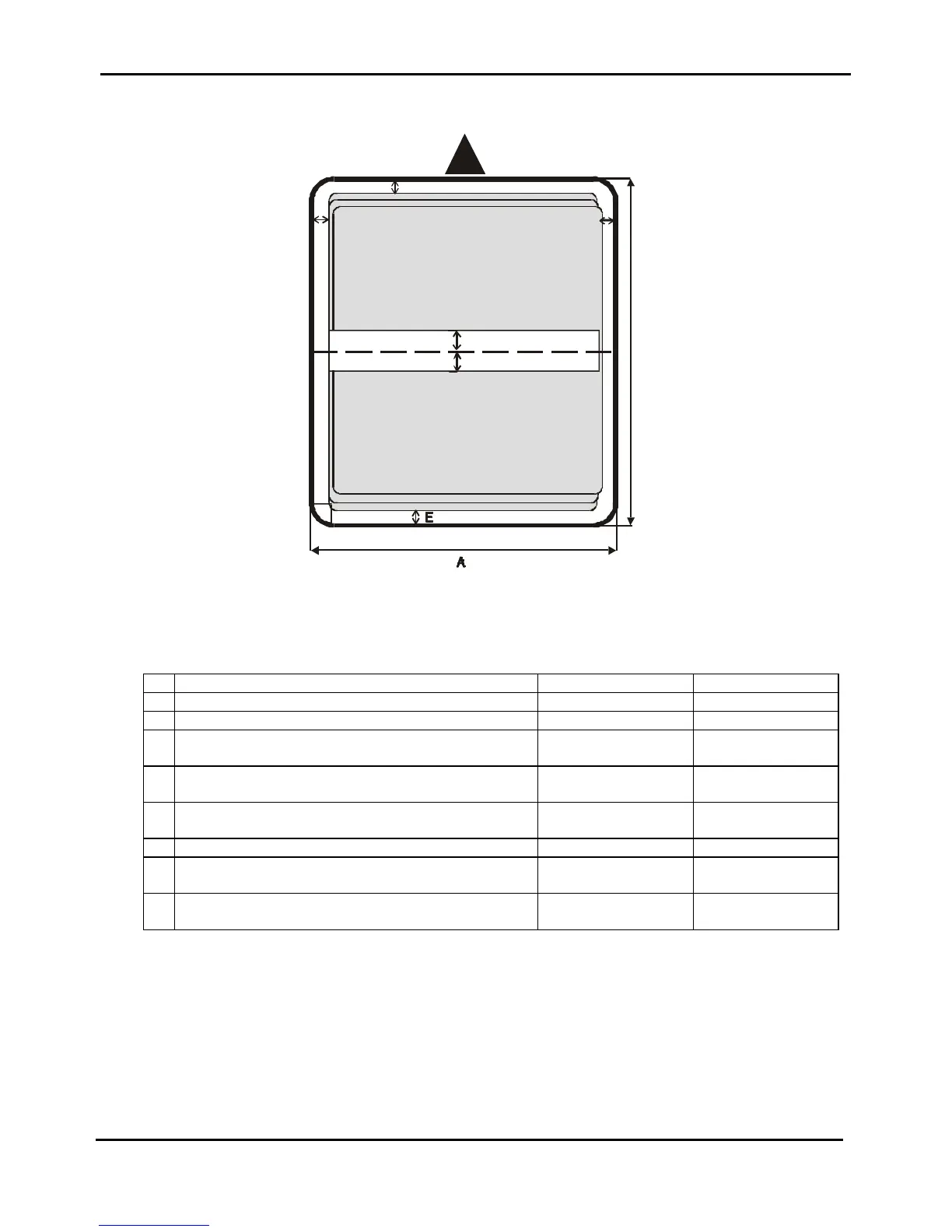

Figure 6.3 - Horizontal Passbook
Dimension Maximum Minimum
A Passbook width 241 mm 110 mm
B Passbook length 220 mm 130 mm
C Distance between print character position and left or
right edge
- 3.0 mm
D Distance between top edge of the document and top
edge of first printed line
- 1 mm
E Distance between bottom of last printed line and
bottom edge of the document
- 6.6 mm
F Outer corner radius 9.35 mm -
G Distance from fold to bottom of the first printed line
above the fold.
- 5.1 mm
H Distance from fold to top of the first printed line below
the fold.
- 5.1 mm
Table 6.3 - Horizontal Passbook Dimension
