Maintenance Manual SP 40
Rev. 005
28
Chapter 2
Removals
2.8 Home Sensor Assy
DANGER : To prevent serious personal injury from electrical shock always turn the printer off and unplug
the power cable before to remove the paper motor assy.
Home sensor assy is item 69 of figure 2.11 and is fixed on the vertical frame of the printer.
To Remove:
1) Remove the top and the main cover assy (see chapter 2.2).
2) Push the green levers to rise the upper side of the mechanical assy and remove the inked ribbon.
3) Unplug the connector cable from the engine board (the 5
th
starting from the right side).
4) Cut the fastener loop-self lock which retain the home sensor cable on the mechanical assy and extract
it from the wiring routing clamp.
5) Unscrew the screw (item 13 of figure 2.11) fixing the sensor to the vertical frame.
6) Extract the home sensor assy from the front side of the printer.
To Install:
To install, follow the removal step in reverse order.

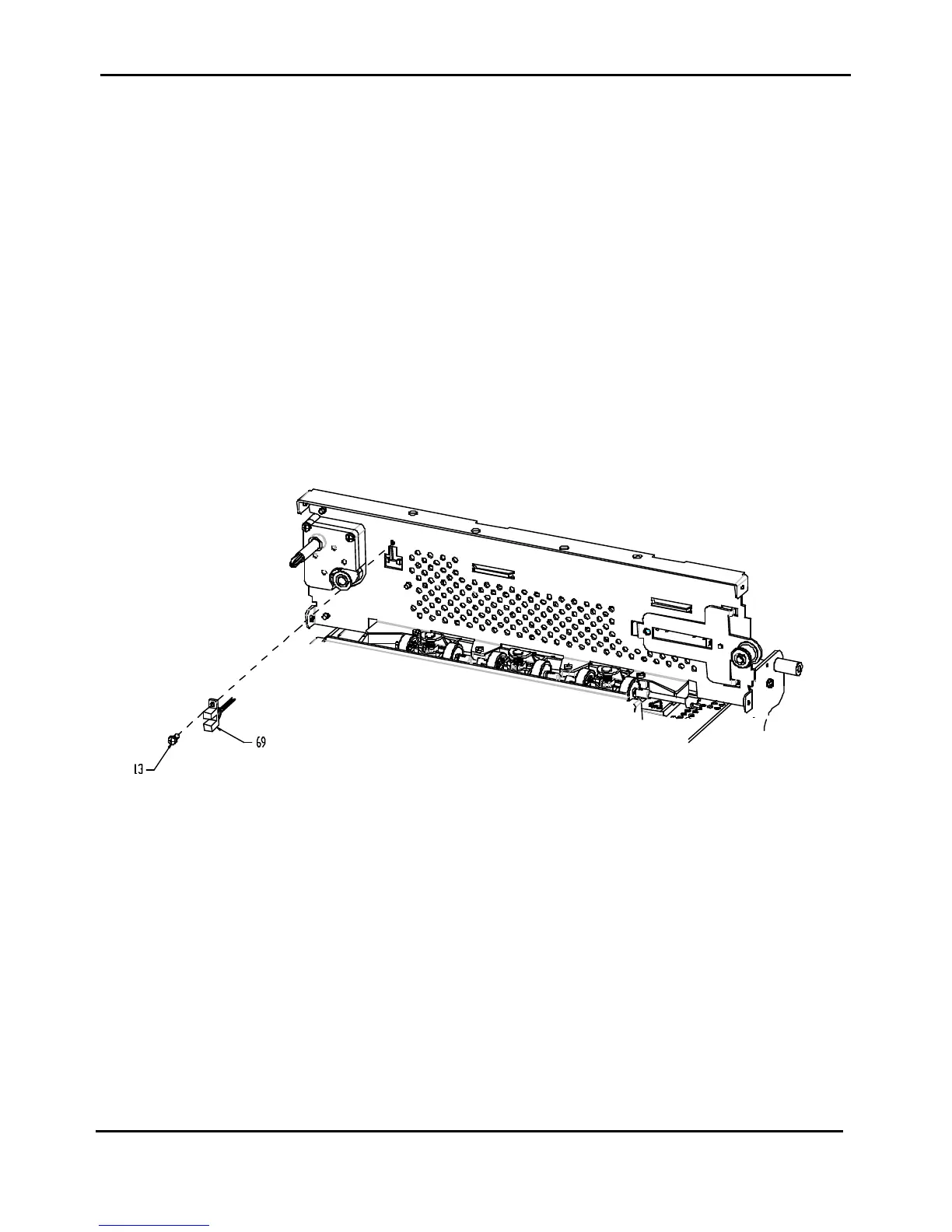

Figure 2.11 - Home Sensor Assy Removal
