The Vertical Offset Tuning values correspond to 1/60 inches and set the vertical offset of the first print line starting
from the default standard position at 1 mm from the upper paper margin.
The Horizontal Offset Tuning values correspond to 1/60 inches and set the horizontal offset of the first print line
starting from the default standard position at 3 mm from the left paper margin.
If you need to change the default position of the first print line the vertical offset can be set in the Vertical Position
Offset lines and/or the horizontal offset in the Vertical Position Offset lines. Both these values correspond to 1/10 inch
values.
1 mm
3 mm
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Vertical Offset Tuning
VERT. DEF. POS
HORIZ
DEF.
POS
Horizontal Offset Tuning
= FIRST PRINT POSITION

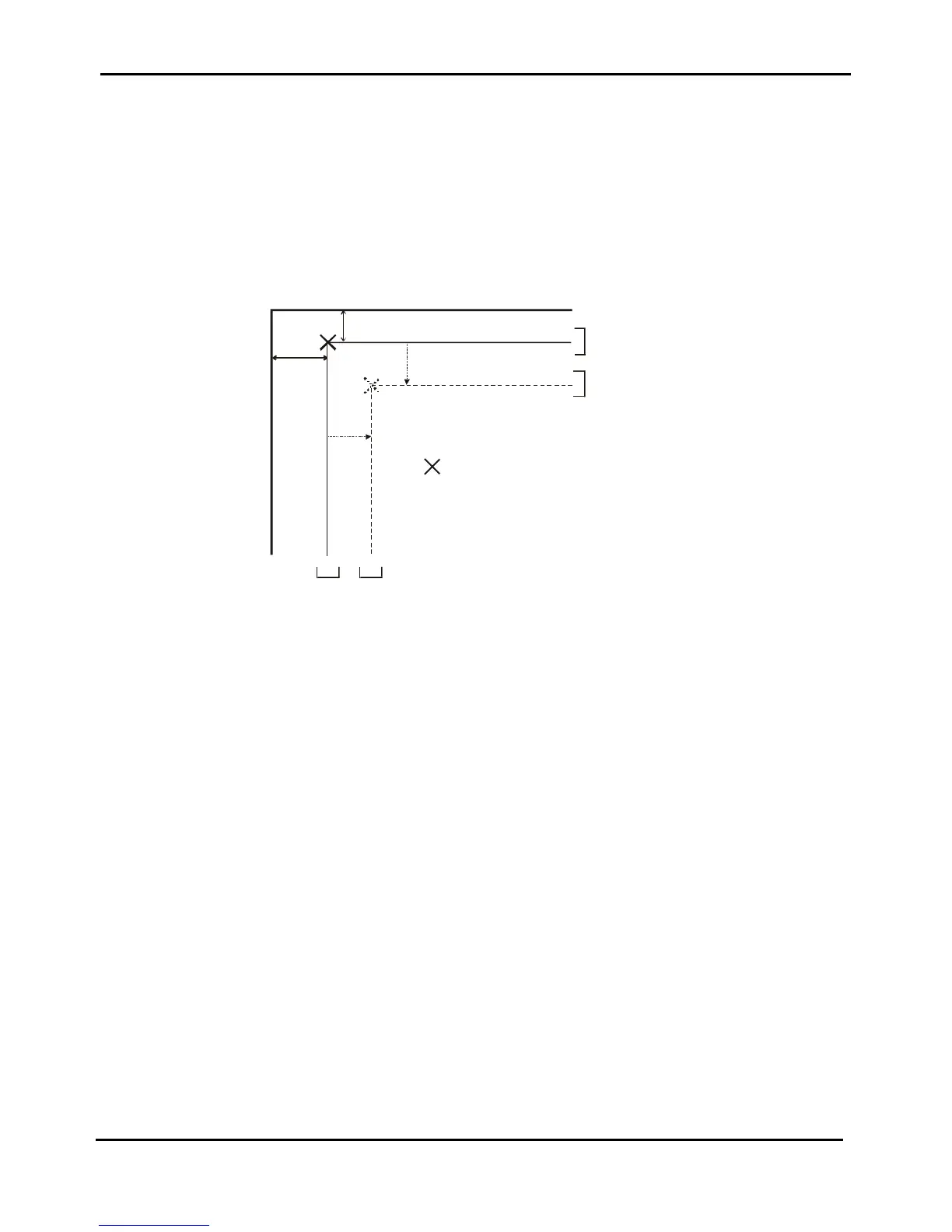

Figure 3.10 - Offset Tuning Example
1. Fill in the marker corresponding to the value you want to set and reinsert the sheet into the printer. The printer
reads the selected values and sets them.
