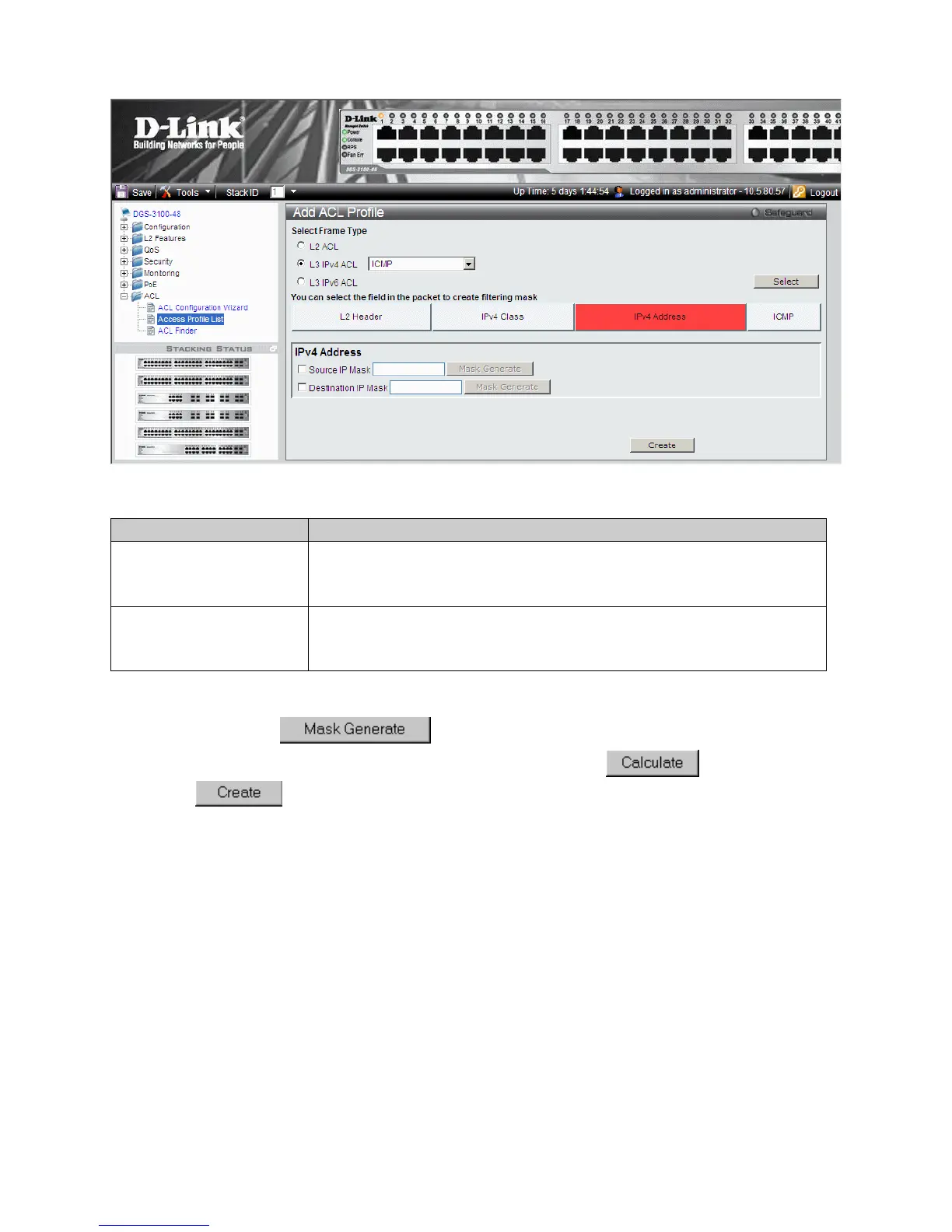

Figure 0-7 ACL Profile L3 IPv4 ACL ICMP Address Page
The ACL Profile L3 IPv4 ACL ICMP Address Page contains the following fields:
Field Description
Source IP Mask
Defines the range of source IP addresses, relevant to the ACL rules. (0=ignore,
1=check).
For example, to set 176.212.XX.XX, use mask 255.255.0.0
Destination IP Mask
Defines the range of destination IP addresses, relevant to the ACL rules. (0=ignore,
1=check).
For example, to set 176.212.XX.XX, use mask 255.255.0.0
2. Select Source IP Mask and/or Destination IP Mask. The Mask Generate button is active.
3. Enter an IP mask in the box adjacent to the Mask Gener
ate button.
4. Alternatively, click
.
The Generate Mask by range fields appear.
5. Enter an IP address range into the Gener
ate Mask by range fields, and click . The mask is generated.
6. Click
. The ACL profile is added, and the device is updated.
To define L3 IPv4 ICMP ACL profile:
1. Click ICMP.
The ACL Profile L3 IPv4 ACL ICMP Page updates to show the following:

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
