DGS-3100 Series Gigabit Stackable Managed Switch User Manual

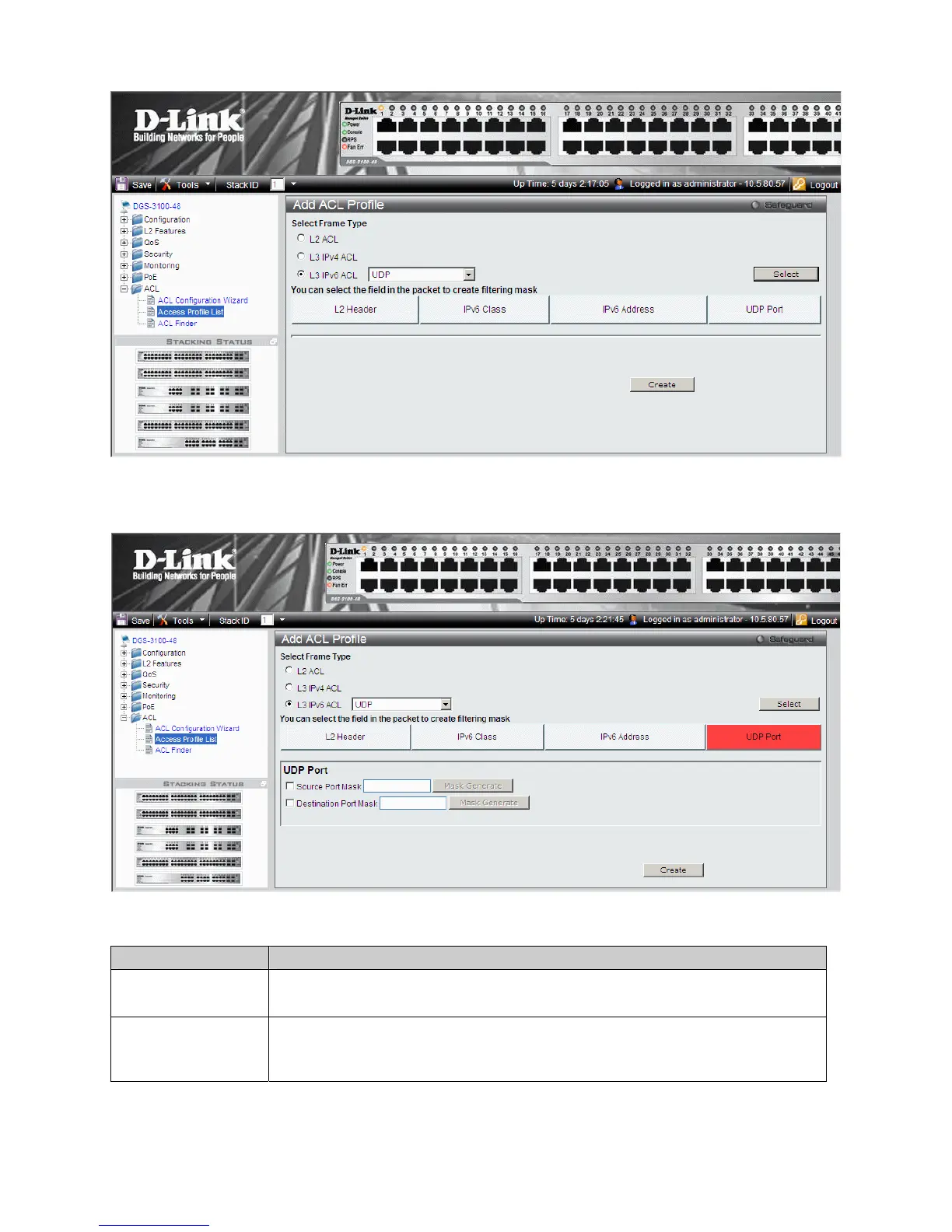

Figure 0-23 ACL Profile L3 IPv6 UDP Page
To define L3 IPv6 UDP Port ACL profile:
1. Click the UDP Port button. The ACL Profile L3 IPv4 UDP Port Page updates to show the following:
Figure 0-24 ACL Profile L3 IPv6 UDP Port Page
The ACL Profile L3 IPv4 UDP Port Page contains the following fields:
Field Description
Source Port Mask
Defines the range of source Ports relevant to the ACL rules. (0=ignore, 1=check).
For example, to set 0 – 15, set mask of F.
Destination Port Mask
Defines the range of destination IP addresses, relevant to the ACL rules. (0=ignore,
1=check).
For example, to set 0 – 15, set mask of F.
2. Select Source Port Mask and/or Destination Port Mask. The Mask Generate button is active.
223
