FUEL SYSTEM

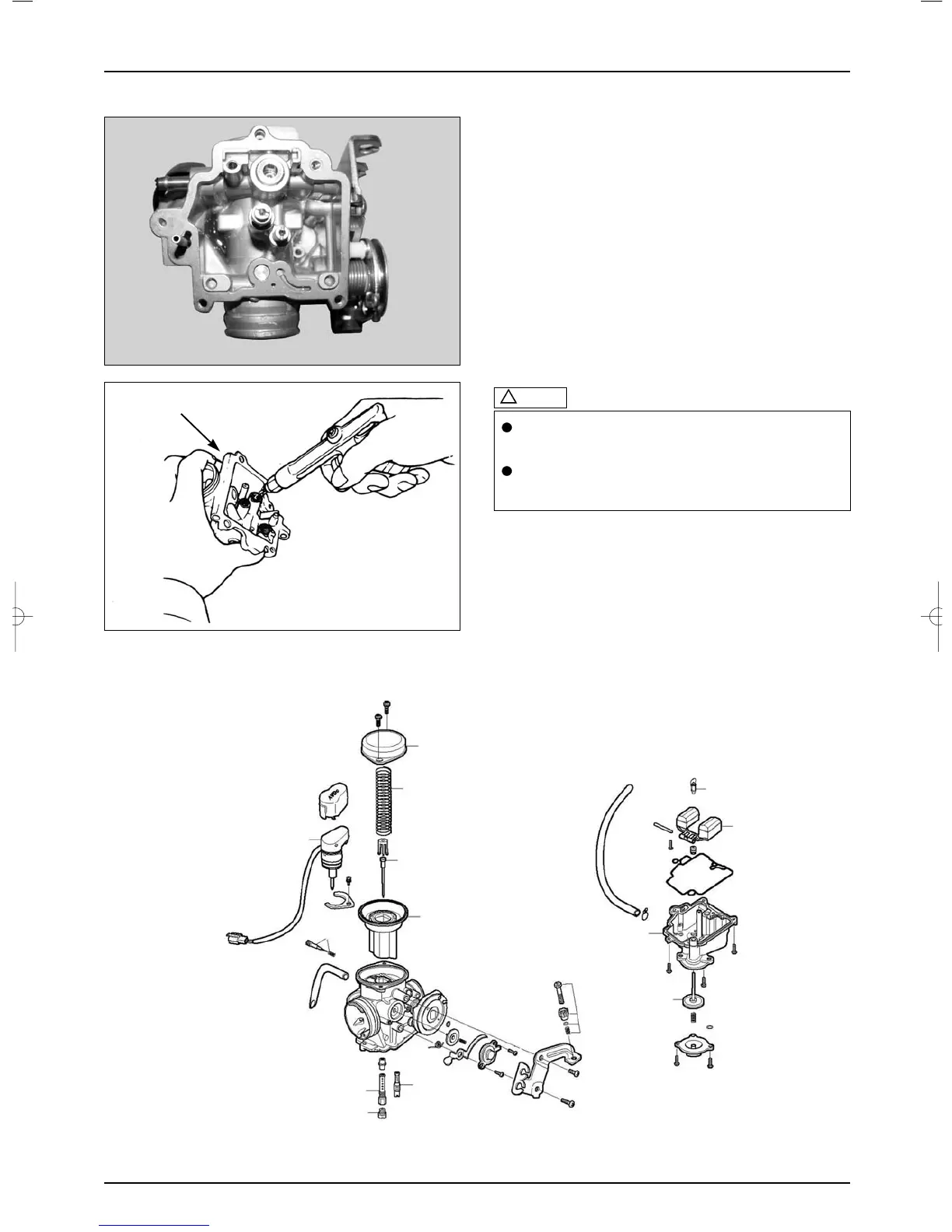

● Remove the main jet, needle jet holder, needle jet, slow
jet, screw set, diaphragm comp, compression spring.
● Clean the jet and hole of carburetor body with blow the
compressed air.
CARBURETOR BODY
TOP SET
COMPRESSION SPRING
FLOAT CHAMBER SET
SCREW SET
AUTO BYSTARTER SET
NEEDLE JET HOLDER
MAIN JET #95
SLOW JET
NEDDLE JET COMP
VACUUM PISTON COMP
FLOAT
VALVE SET
FLOAT COMP
DIAPHRAGM COMP
Turn in the pilot jet and record the number of
turns it takes before it seats lightly.
Do not force the pilot screw against its seat;
The seat will be damaged.
!
NOTE
