FUEL SYSTEM

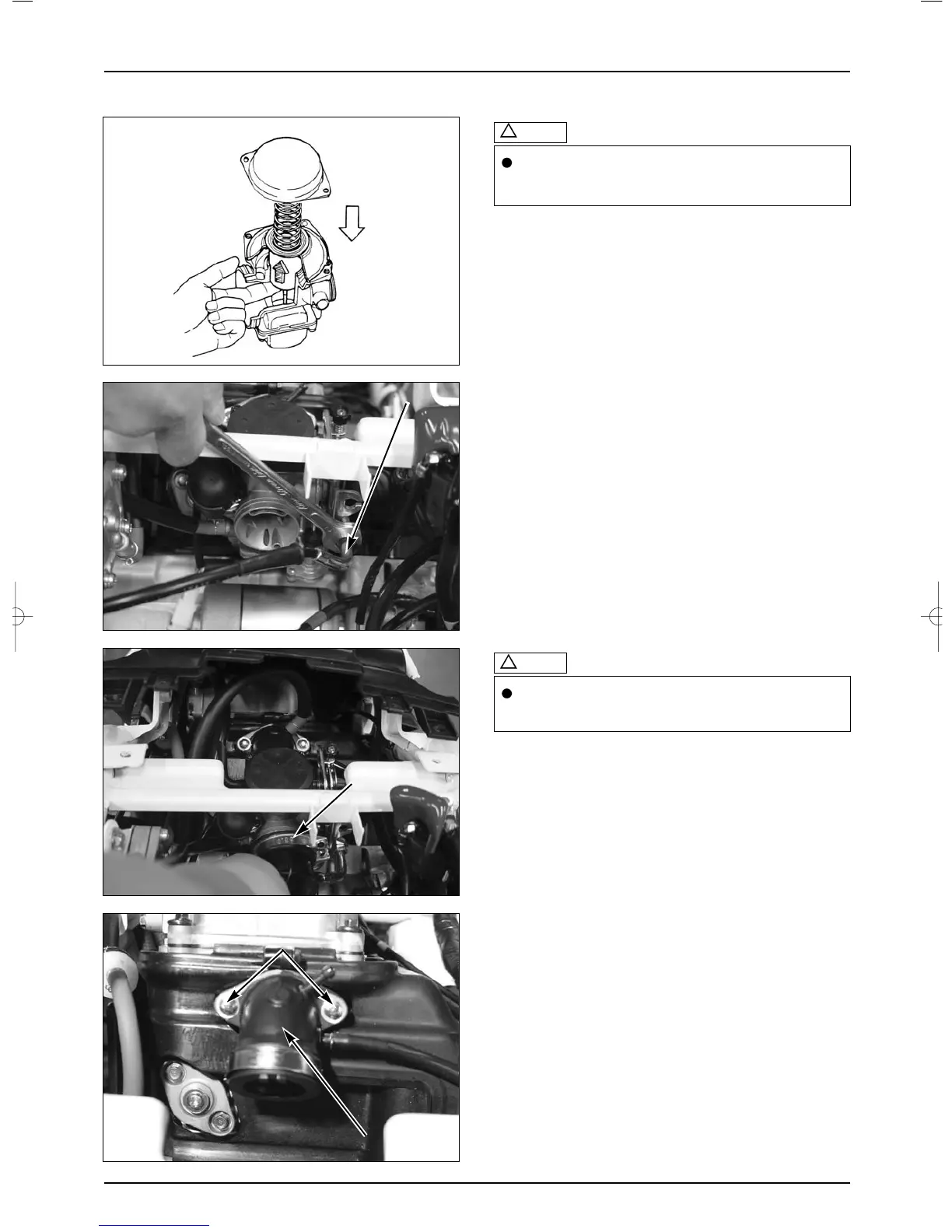

CABURETOR INSTALLATION

● Install the carburetor to the carburetor insulator.

● Tighten the carburetor insulator band screw.

● Install the fuel tube to the carburetor.

● Intall the wiring coupler of the auto bystarter.

● Install the throttle cable to the carburetor.

● Intall the air cleaner.

● Install the center cover.

CABURETOR INSULATOR

REMOVAL

● Remove

- Center cover.

- Air cleaner.

- Carburetor.

● Remmove the fuel pump negative pressure tube.

● Loosen the carburetor insulator 2 setting nuts.

● Remove the carburetor insulator.

● Remove the carburetor insulator band.

● Install the reverse order of removal.

COMPRESS

STRAIGHT

THROTTLE CABLE

INSULATOR

FLANGE BOLT

AIR CLEANER CONNECTING TUBE BAND

● Install the drain tube and air-hose.

Be careful not to pinch the diaphragm, and to

keep the spring straight.

NOTE

After adjusting the carburetor, check the

throttle grip free play.

NOTE
