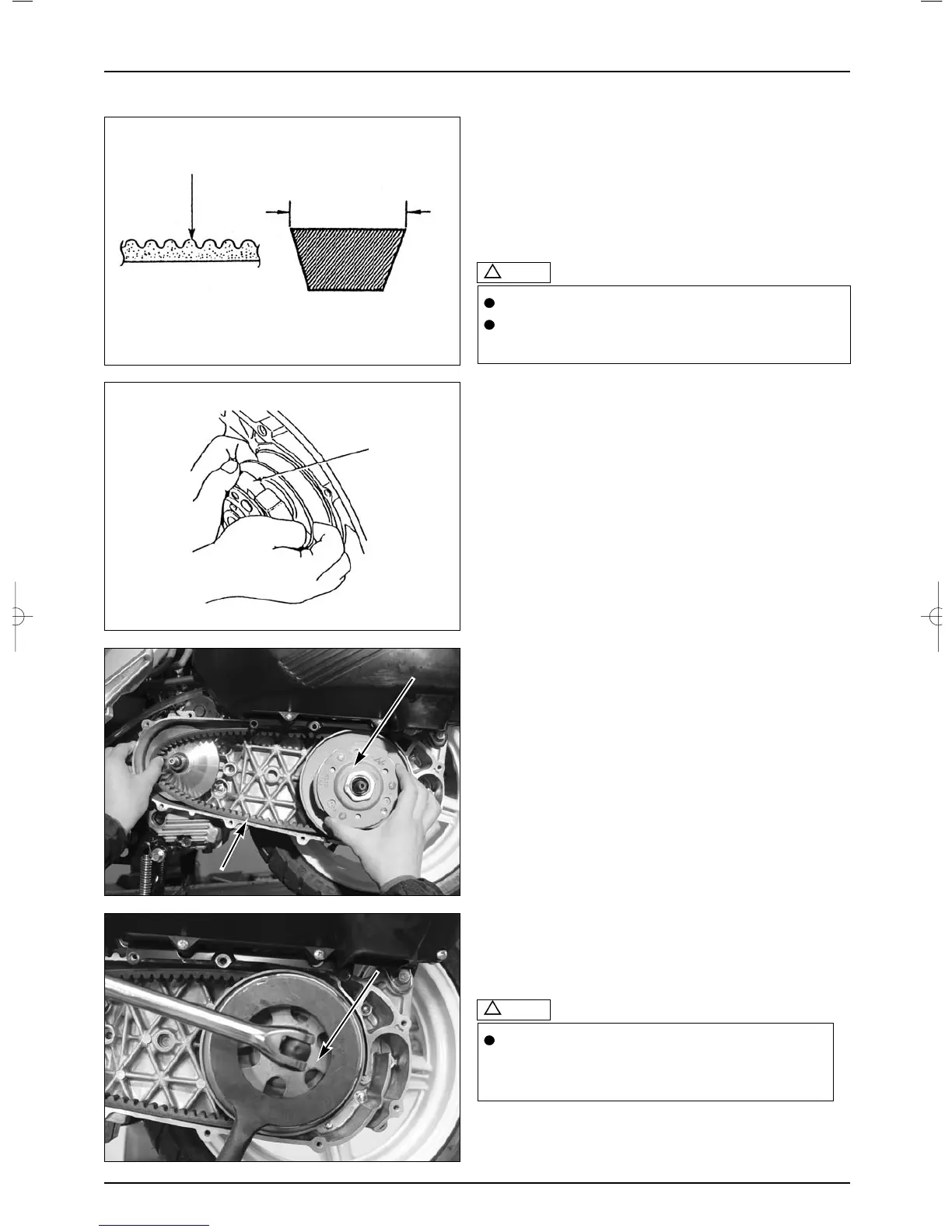

DRIVE BELT INSPECTION
● Check the drive belt for cracks, pry separation and
wear, replace as necessary.
● Measure the width of the drive belt as shown.
SERVICE LIMIT : 20.5mm
DRIVE BELT INSTALLATION
● Turn the pulley clockwise and spread the face apart
while installing the drive belt and install the drive belt
to the driven pulley ass’y.
● Install the driven pulley sub ass’y on the drive belt.
● Install the drive belt to the movable drive face apart.
● Temporarity install the driven pulley and flange nut.
● Hold the clutch outer using the universal holder and
tighten the flange nut with the specified torque.
8-4
LH.CRANK CASE COVER/CONTINUOUSLY VARIABLE TRANSMISSION
COG
WIDTH
DRIVEN PULLEY SUB ASS’Y
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVE BELT
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
DRIVEN PULLEY
Use only a genuine DAELIM replacement drive belt.
Do not get oil or grease on the drive belt or pulley
faces. Clean off any grease or oil before reinstalling.
!
NOTE
Do not rotate the movable drive face to became
the original position until the driven pulley to
be installed completely to the drive shaft.
!
NOTE
