9-2

A.C GENERATOR / STARTER CLUTCH

SHROUD

REMOVAL

● Remove the following parts.

- RR. Inner

- SAI Tube

- RH. / LH. Pillion step holder

- Muffler comp

A.C GENERATOR

REMOVAL

● Loosen the rear cushion under cover.

● Loosen the 3 bolts securing RH. shroud.

● Remove the SAI.

● Remove the shroud.

● Loosen the 3 cooling fan bolts.

● Remove the A.C.G. wiring from the A.C.G. wiring

setting clamp securing the engine and frame.

● Loosen the RH. shroud 4 flange bolts and 4 tapping

screws.

● Remove the RH. shroud.

● Loosen the LH. shroud setting screw.

● Remove the LH. shroud.

● Install in the reverse order of removal.

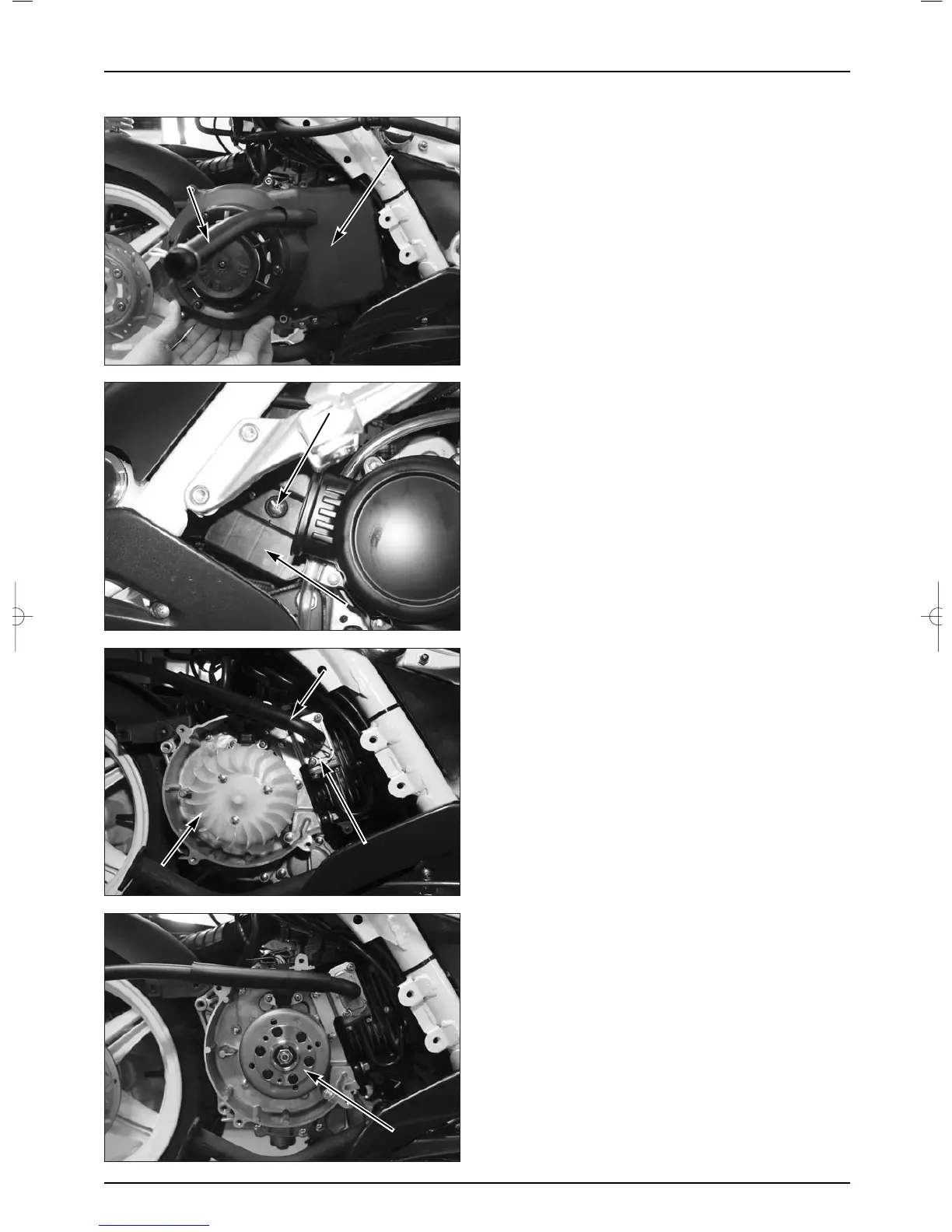

SAI TUBE

COOLING FAN

RH. SHROUD

SAI TUBE

LH. SHROUD

SETTING SCREW

SAI REED VALVE

FLYWHEEL COMP
