9-3

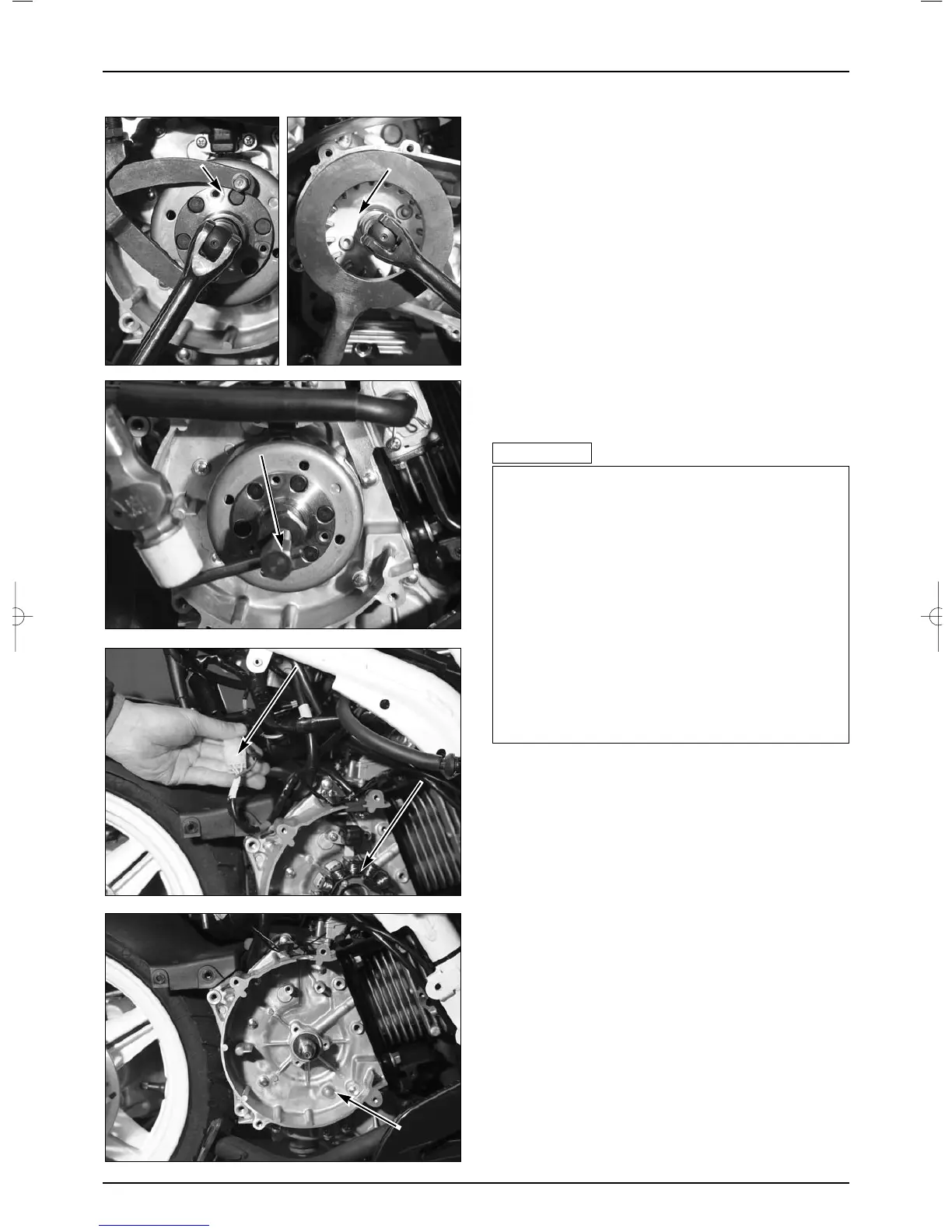

A.C GENERATOR / STARTER CLUTCH

A.C.G COUPLER

RH. CRANK CASE COVER

FLYWHEEL

A.C.G ROTOR PULLER

DRIVE FACE

STARTER COMP

● Install the universal holder on the flywheel.

● If the universal holder connot be used, remove the LH.

crankcase cover at the left side of the crankshaft, and

hold the drive face with the drive face holer.

● Loosen the flange nut securing the fly wheel, and

remove the flywheel using the A.C.G rotor puller.

● Loosen the fan screw securing the starter comp and

remove the starter comp on the RH.crankcase cover.

● Disconnect the A.C.G wire coupler.

TOOL : A.C.G ROTOR PULLER

UNIVERSAL HOLDER

DRIVE FACE HOLDER

●Insert the puller shaft and remove the flywheel

after inserting the A.C.G rotor puller and

securing it with spanner.

●The flywheel may easily removed if you rotate

the puller while tapping the puller shaft with

metal hammer.

●Always use a holder and a puller to remove the

flywheel. Do not try to remove the flywheel by

hammering directly on it. The crankshaft or

components could be damaged.

●After removing the flywheel, check the

woodruff key for damage and wear.

CAUTION

△
