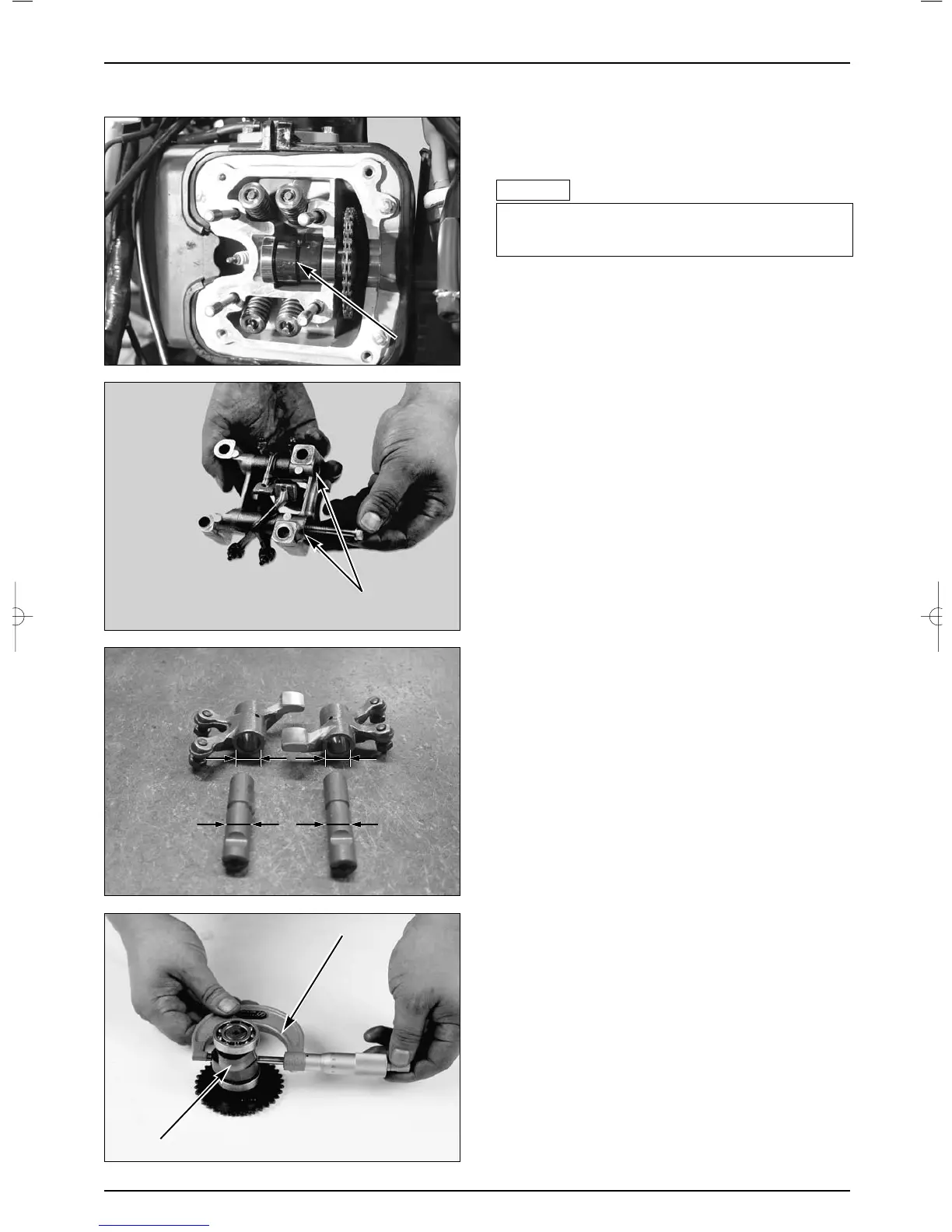

● Remove the cam chain from the camshaft.

● Remove the camshaft.

● Insert the 6mm bolt into the rocker arm shaft, and

pulling bolts to remove the rocker arm shaft.

● Remove the rocker arm.

● Remove the other side rocker arm shaft and rocker arm

in the same sequence.

CAMSHAFT INSPECTION

● Check the rocker arm and rocker arm shaft for wear or

damage.

● Measure the inner diameter of the rocker arm.

SERVICE LIMIT : 12.060 mm

● Measure the outer diameter of the rocker arm shaft.

SERVICE LIMIT : 11.950 mm

● Check the cam lobes of the camshaft for wear or

damage.

● Measure the height of the cam lobe.

SERVICE LIMIT : IN : 33.625 mm

EX: 33.765 mm

10-4

CYLINDER HEAD / VALVES

CAM SHAFT

MICRO METER

INNER DIAMETER

OUTER DIAMETER

ROCKER ARM SHAFT

●Take precautions not to allow the cam chain to drop

into the crankcase.

NOTE

△

CAM SHAFT
