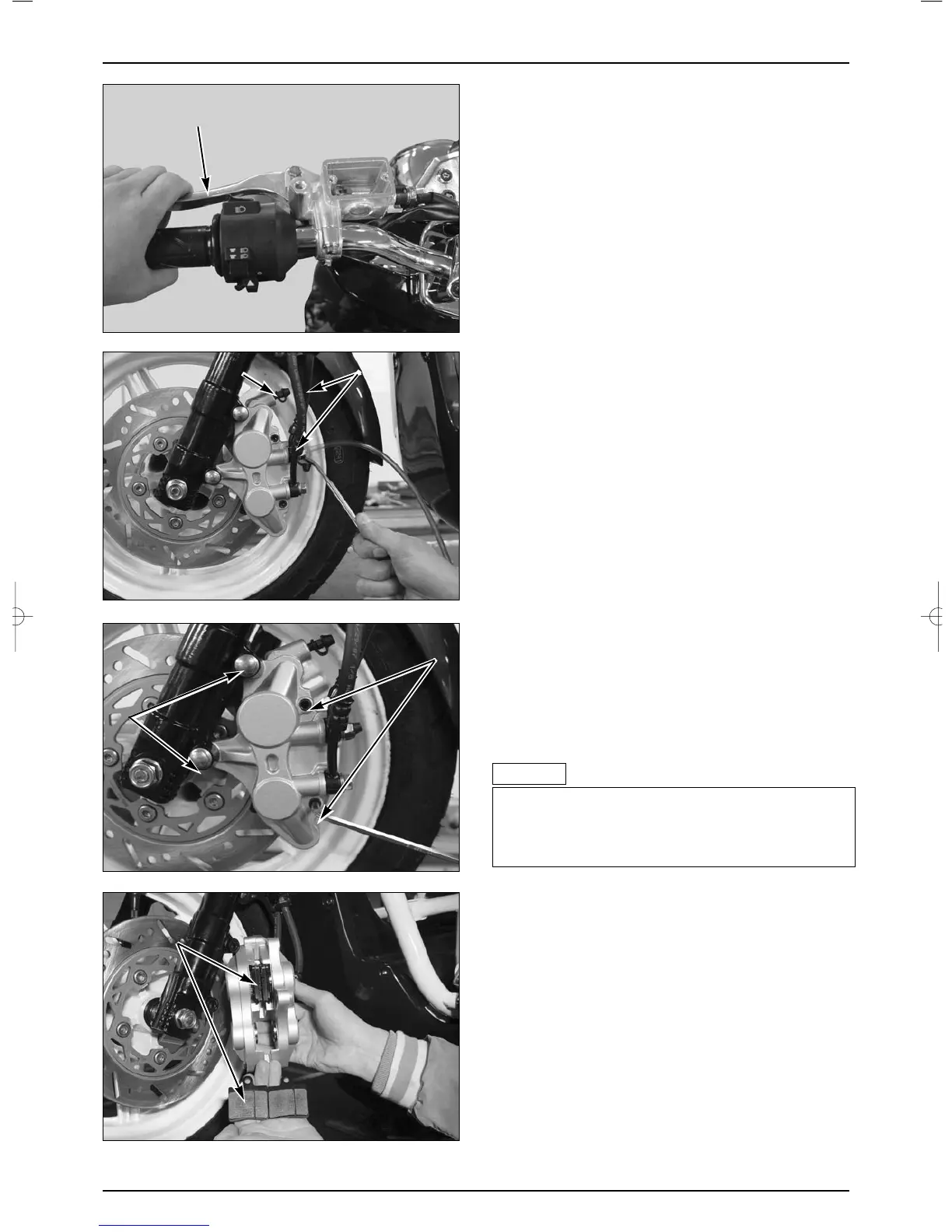

15-5

BRAKE SYSTEM

RR. BRAKE LEVER

FR. BREEDER VALVE

FR. BRAKE HOSE

HANGER PIN

FLANGE BOLT

BRAKE PAD

③ If no air leaks out of the breeder hose after operate

the brake lever, stop pumping it.

④ Connect the breeder hose to the breeder valve on

the front caliper and bleed air.

⑤ Fill the brake fluid up to the upper limit line and

install the diaphragm, plate and oil cup cap.

⑥ Install the fluid maintenance lid.

FRONT BRAKE PAD

REPLACEMENT

● Loosen the hanger pin on the front caliper.

● Remove the brake caliper from the front fork.

● Loosen the hanger pin from the brake pad.

● Install the hanger pin to the new brake pads.

● Install the brake caliper to the front fork.

●When replacing brake pads, replace whole set.

●Do not remove the brake hose when replacing brake

pads.

NOTE

△
