BRAKE SYSTEM

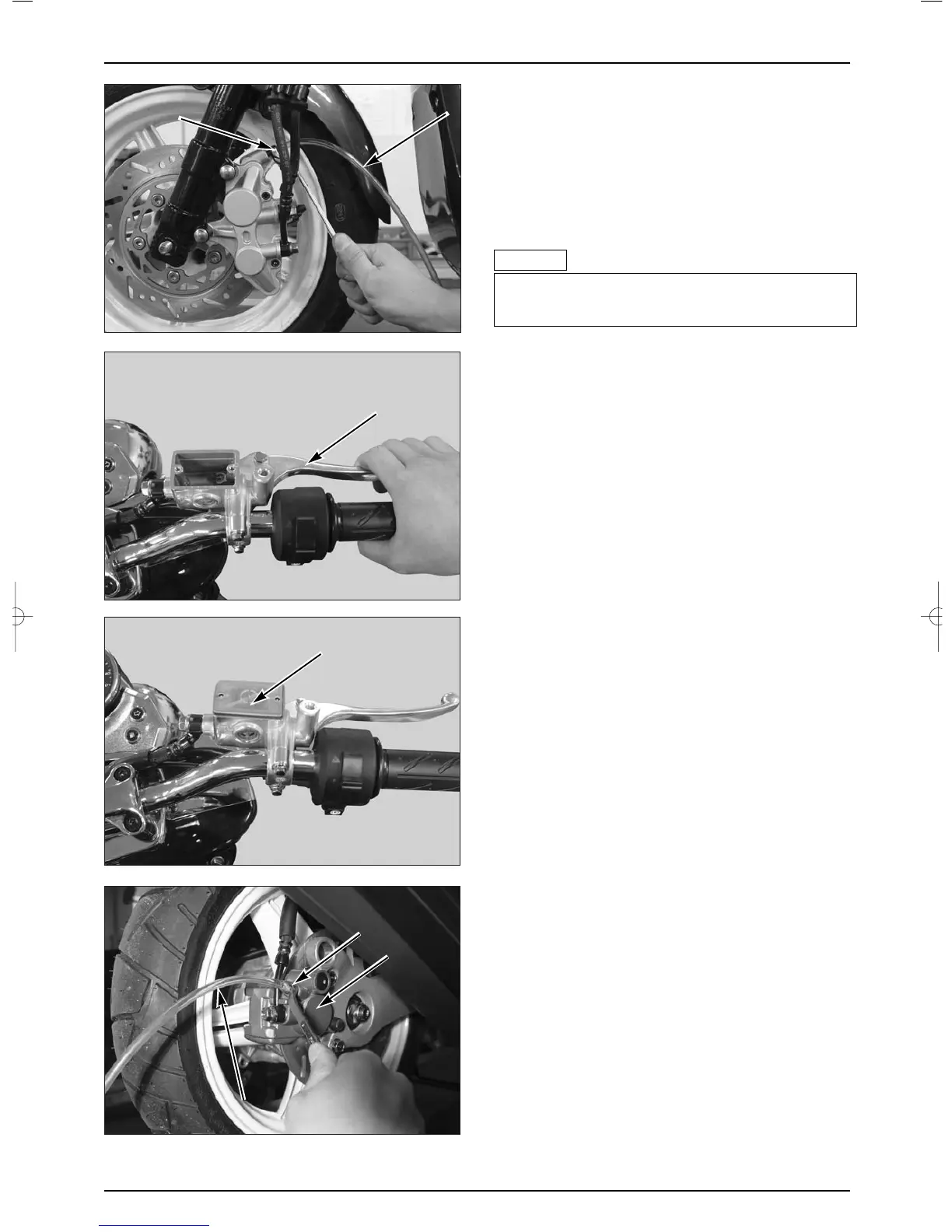

When the brake bleeder is not available

● Fill the brake fluid up to the upper limit line.

● Connect the transparent bleeder hose to the bleeder

valve and place the other end of the hose in a container.

① Squeeze the brake lever, then open the bleeder

valve 1/2 turn, and close the valve.

② Release the brake lever slowly and wait several

seconds after it reaches the end of its travel.

③ Repeat the above steps ① and ② until bubbles

cease to appear in the fluid at the end of the hose.

● Check the fluid level often, and add fluid if the fluid

level is near the lower level.

● If no air leaks out of the bleeder hose, operate the brake

lever to check the presence of air.

● Tighten the bleeder valve.

TORQUE VALUE : 0.4~0.7 kgf

DIAPHRAGM PLATE

REAR CALIPER

RR. BRAKE BREEDER VALVE

FR. BRAKE LEVER

BREEDER HOSE

BREEDER VALVE

BREEDER HOSE

●Do not release the brake lever until the bleeder valve

has been closed.

NOTE

△

● Be sure that the brake fluid is up to the upper level of

the master cylinder and refill if necessary

● Reinstall the diaphragm, diaphragm plate and oil cup

cap.

TORQUE VALUE : 1.0 kgf

REAR BRAKE BLEEDLING (INTERLOCK)

● The rear brake is apply to interlocking system, when

squeezing the right side brake lever, the front and rear

brake works at once.

① Fill the brake fluid up to the upper limit line.

② Connect the breeder hose to the breeder valve on

the rear caliper and bleed air.
