15-6

BRAKE SYSTEM

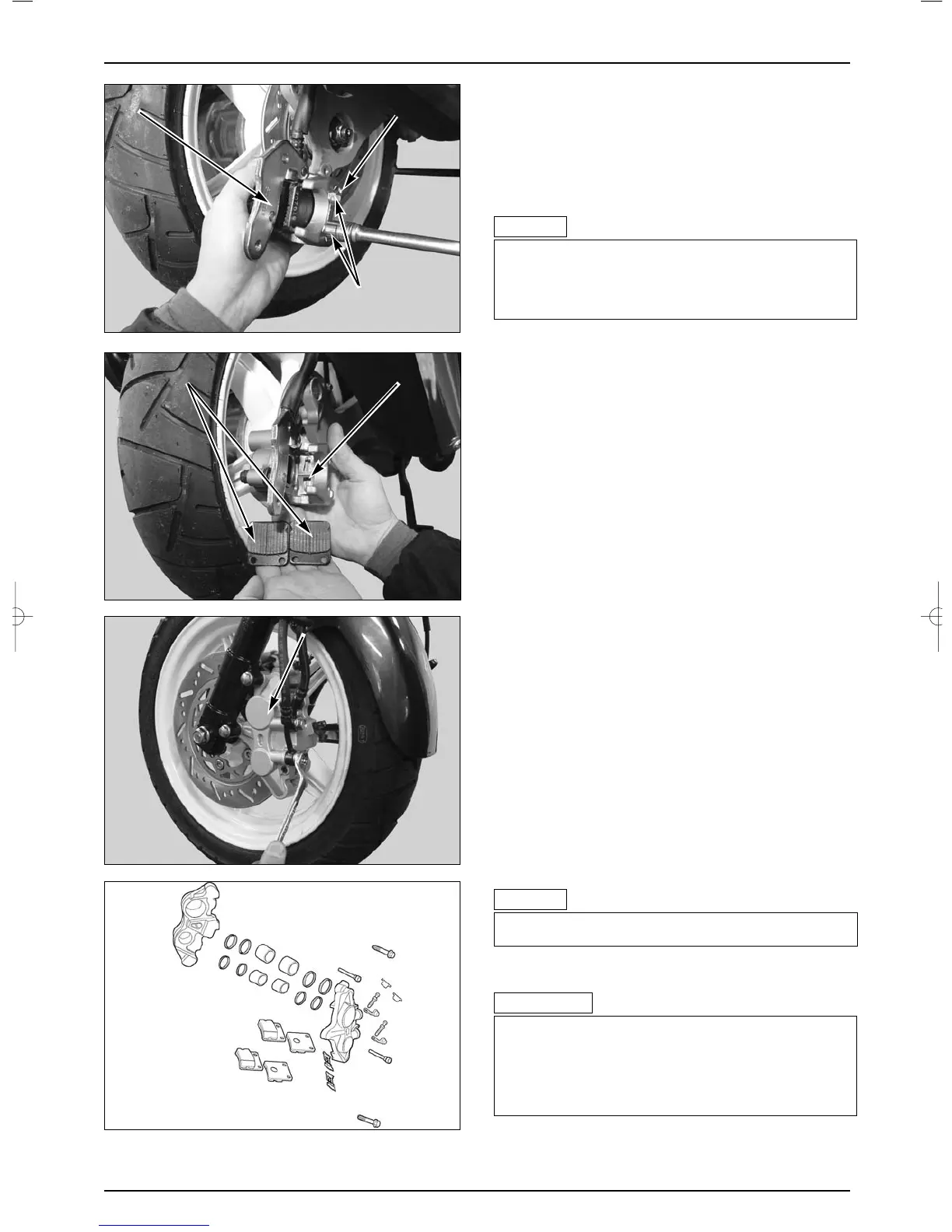

FRONT BRAKE CALIPER

REMOVAL

● Drain the brake fluid.

● Loosen the oil bolt securing the brake hose.

● Loosen the 2 bolts securing the caliper.

RR. CALIPER

HANGER PIN

LOCK PLATE

RR. BRAKE PAD

FR. CALIPER

PAD SPRING

REAR BRAKE PAD

REPLACEMENT

● Flatten the lock plate pawl and loosen the hanger pin.

● Loosen the rear brake bolt and remove the brake

caliper.

● Loosen the new brake pad, lock plate, hanger pin and

replace the pads.

● Install in the revers order of removal.

●When replacing brake pads, replace whole set.

●Do not remove the brake hose when replacing brake

pads.

NOTE

△

●Avoid spilling fluid on painted, plastic or rubber parts.

NOTE

△

●Keep oil off the brake disk or pad, because the

contaminated brake disk or pads reduce the braking

performance if contaminated. Replace the pad with a

new one and clean the disk.

CAUTION

△
