DAELIM B-BONE

5-35
EMS(Engine Management System)

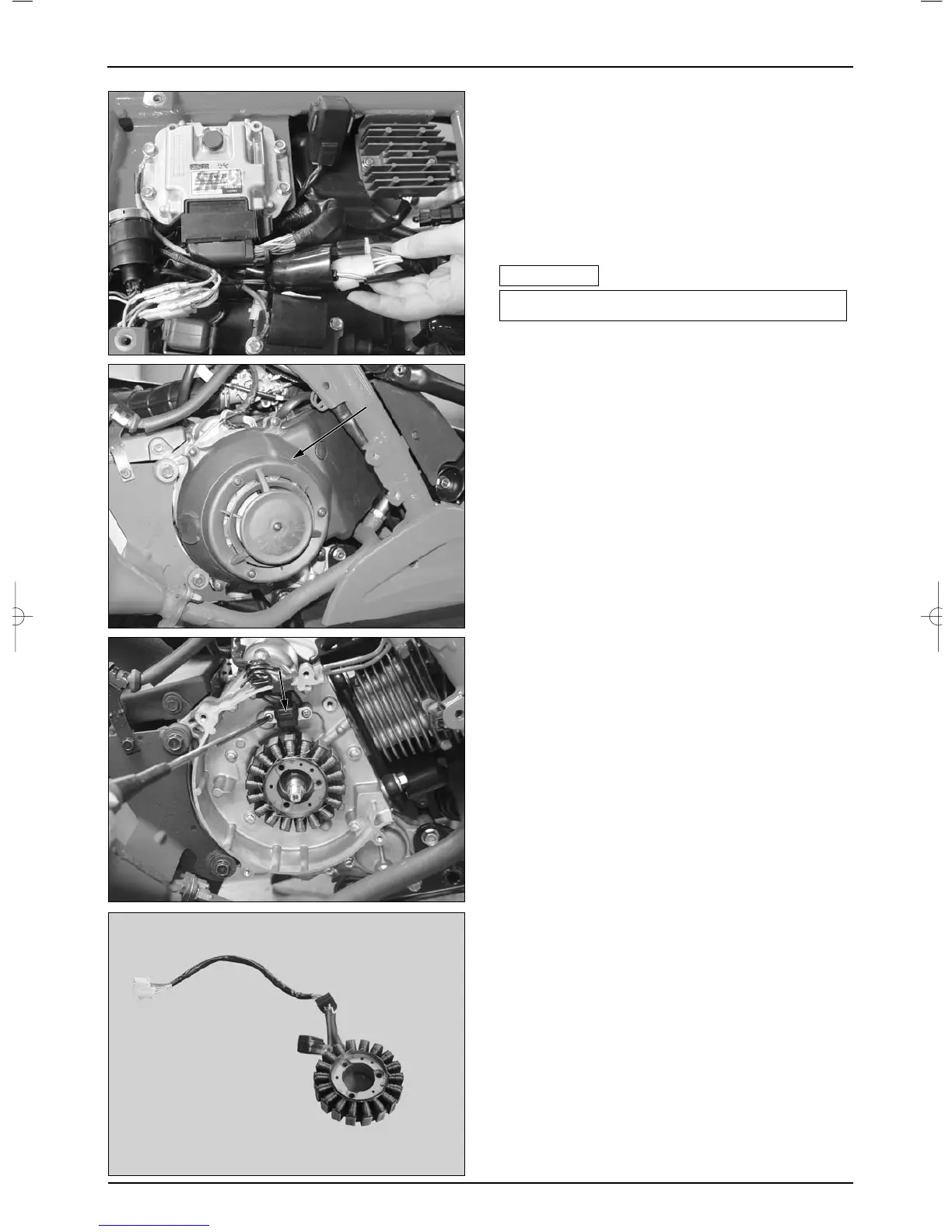

● Remove the RH. shroud.
● Remove the cooling fan.
● Remove the fly wheel.
● Remove the 3 screws securing ACG stator.
● Remove the 2 screws securing CKP.
REMOVE
● Remove the center cover.
● Remove the ACG coupler.
● Remove the CKP coupler.
● CKP is located inside the RH. crank case
cover.
!
CAUTION
△
15. CKP(Crank Position Sensor)
● Before disassembly, the key is off.
● Check the ACG stator and position sensor.
● Take precaution not to use the stator comp (18
terminal) like the carburetor type stator.
