DAELIM B-BONE

5-36
EMS(Engine Management System)

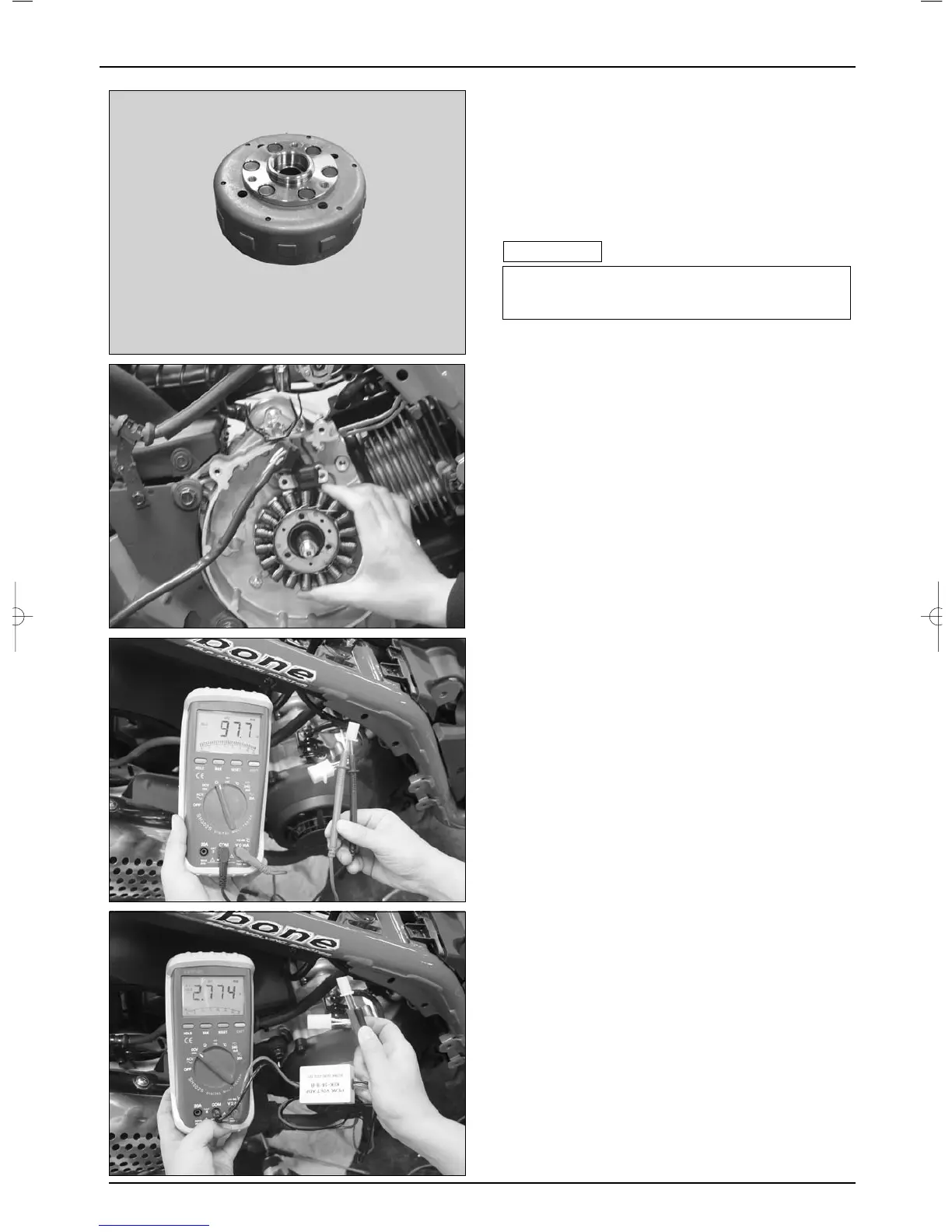

MEASUREMENT PVA
● Disconnect the ACG (L/G) connector.
● Connect the (+)cord of PVA tester to the green
terminal or ground wire.
● Connect the (-)cord of PVA tester to the blue
terminal.
● Crank the engine with the starter motor and
measure the peak voltage of crank position
sensor coil.
● HIGHEST VOLTAGE : 1.5V Over.
● TOOL : PVA Multy tester.
● Assembly is the reverse order of removal.
MEASUREMENT RESISTANCE
● Remove the seat.
● Remove the LH. side cover.
● Disconnect the ACG coupler and (L/G)
connector.
● Measure the resistance between G and L.
● STANDARD : 80~150Ω(20℃)
CHECKING OF CKP(Crank Position
Sensor)
● Check the fly wheel.
● Fly wheel for the EMS system have 10 spots
on the fly wheel protrusion. It is different with
carburetor type.
● Check the mark or contamination on the
protrusion.
ASSEMBLY
● Assembly is the reverse order of removal.
!
CAUTION
△
● When replace the fly wheel, check the 10 spots
of protrusion part.
