Dahua MCVR6204 User Manual

Installation 7
No.
Name
Function
CH5-8
Power cable
Connects to 6V DC–36V DC power source on the vehicle. The
red with fuse represents the positive pole of power supply
(normal fire), the black represents grounding line, and the
orange represents ACC signal (key fire).

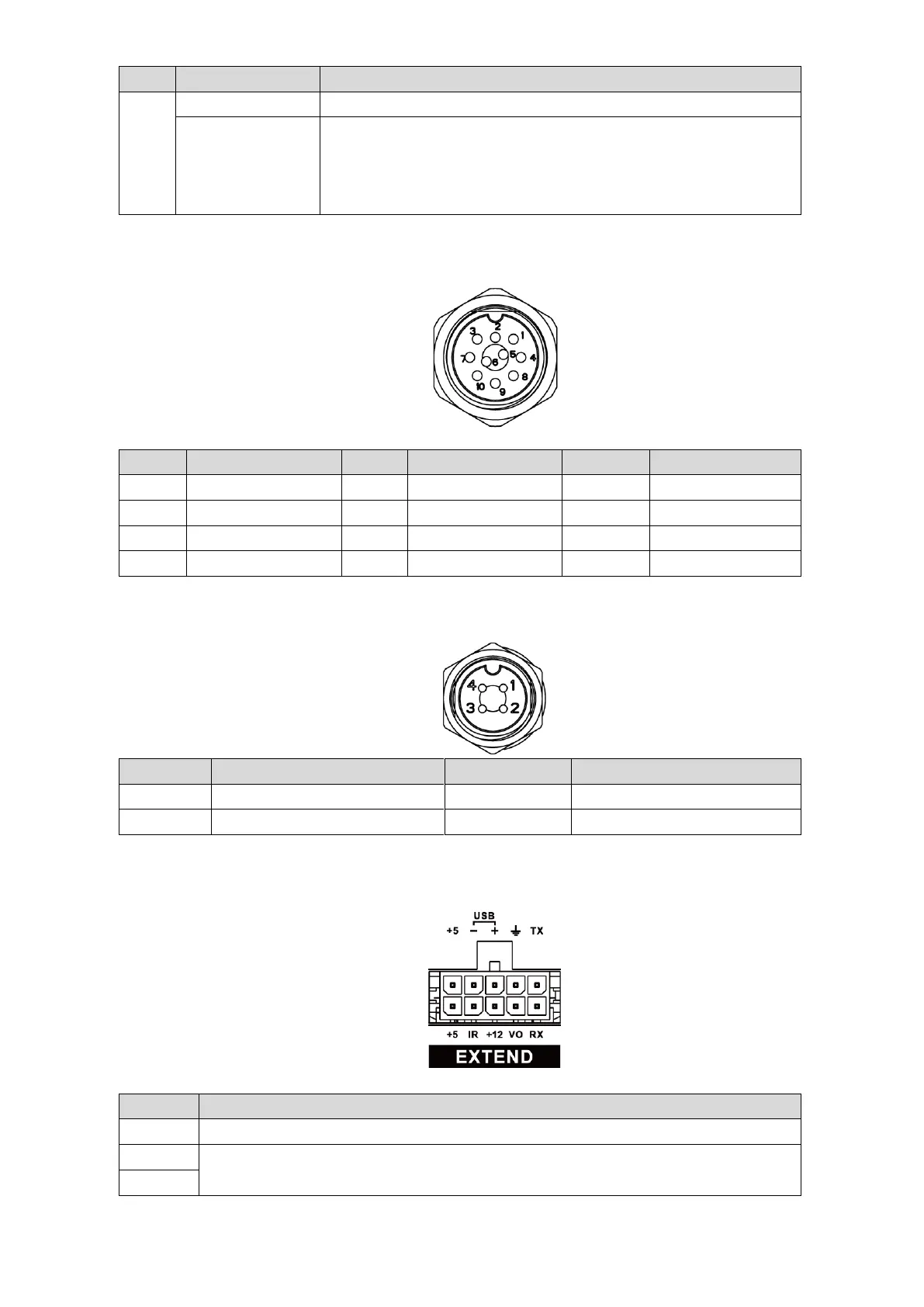

VGA port
VGA port Figure 2-3
No.
Function
No.
Function
No.
Function
1
+12V/1A output
5
Audio output
9
VGA line sync
2
Ground line
6
VGA_B
10
VGA line sync
3
VGA_G
7
VGA_R
—
—
4
RXD_232
8
TXD_232
—
—
Video and audio output port
Video and audio output port Figure 2-4
No.
Function
No.
Function
1
+12V/1A output
3
Audio output
2
Ground line
4
Video output
EXTEND port
EXTEND port Figure 2-5
Name
Function
+5
USB +5V (upper line)
-
USB data- and USB data+ that connect to USB port.
+
