Indoor Unit (SkyAir Models) SiEN18-622
138 Function

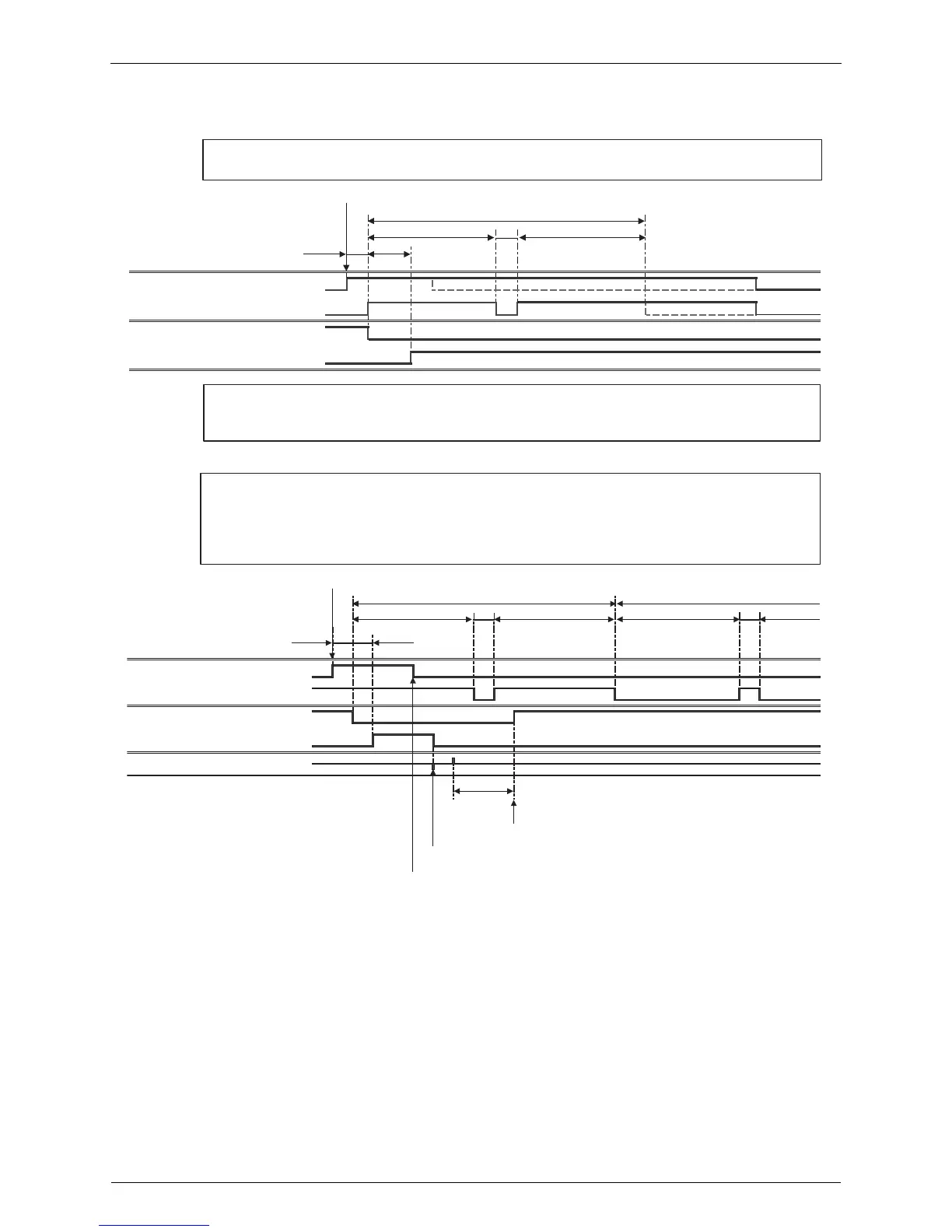

2-2-a)-2 When a water level abnormality occurs during drain pump OFF
Occurrence of drain water level abnormality
5
sec
A
sec
80 sec
5min5min
OFF
Drain pan
Water level abnormality
Normal
Error processing
Abnormal
Normal
Intermittent operation (*1)
Drain pump
ON
OFF
Compressor
ON
The abnormality is determined when 80 seconds elapse from compressor stop. Other than above,
behavior issame as 2-2-a).
Note : ((2-2-a)-2 When a water level abnormality occurs during drain pump OFF)
Recovery operation for drain water level abnormality does not activate when the water level can be
returned normal within A + 80 seconds.
2-2-b) Behavior when the unit restarts by remote control after the water level abnormality is recovered
Occurrence of drain water level abnormality
5
3
sec
min
A
10
sec
sec
(When 3-min standby of compressor is complete.)
Recovery of drain water level abnormality
5min
5min
Intermittent operation (*1)
Drain pan
Water level abnormality
Normal
Remote controler
ON
OFF
Drain pump
ON
OFF
Compressor
ON
OFF
Error processing
Abnormal
Normal
2 min
20 min
20min
Basic operation
Abnormal water level shall be cancelled simultaneously when the unit is turned off with remote control
after recovery of abnormal water level. When the unit is turned on with remote control thereafter,
compressor starts operation 2 minutes later from the remote control ON. (Below diagram showsan
example of the case that the water level abnormality is recovered during the former 5 min intermittent
operation after the abnormality occurred during dra
in pump ON.)
Compressor starts operation after 2 minutes from
remote control ON.
Alarm indication will be turned off with the remote control OFF
operation after recovery of drain water level abnormality.
