194 System Configuration

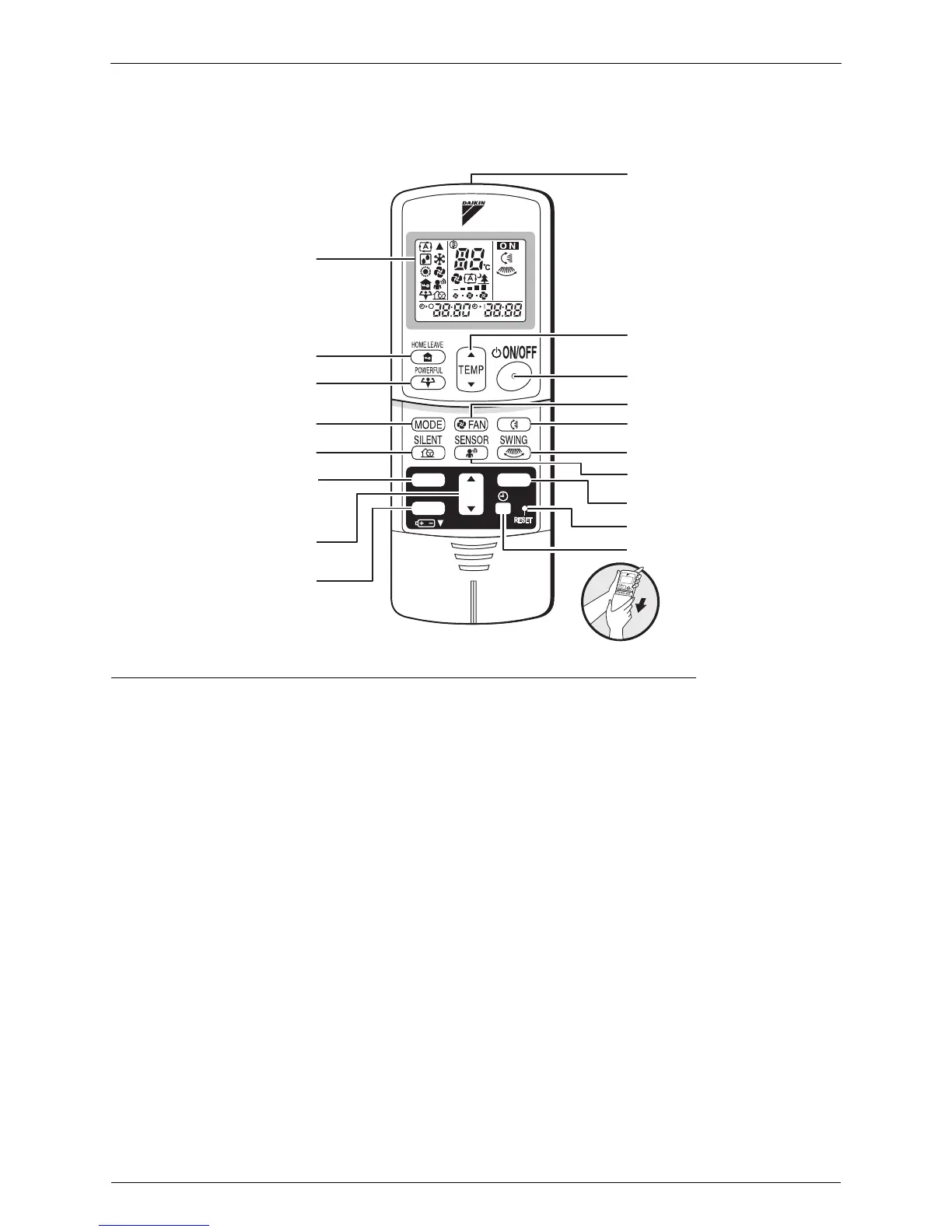

Remote control
1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings. (In this
illustration, each section is shown with all
its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
HOME LEAVE operation (page 224)
4. POWERFUL button:
POWERFUL operation (page 220)
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode. (AUTO/
DRY/COOL/HEAT/FAN) (page 232)
8. SILENT button: OUTDOOR UNIT
SILENT operation (page 232)
9. FAN setting button:
• It selects the air flow rate setting.
10.SENSOR button:
INTELLIGENT EYE operation (page 226)
11.SWING button (page 218)
• Flap (horizontal blade)
12.SWING button (page 219)
• Louver (vertical blades)
13.ON TIMER button (page 231)
14.OFF TIMER button (page 230)
15.TIMER Setting button:
• It changes the time setting.
16.TIMER CANCEL button:
• It cancels the timer setting.
17.CLOCK button: (page 232)
18.RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
1
2
5
6
9
11
ARC433A70, A71
3
4
7
8
10
12
TIMER
ON
CANCEL
OFF
16
18
17
15
14
13
