Speed
Logical level
Logical level
SSR Request
SSR Reached
STO Active
SQS Reached
SSR Active
SQS Active
STO Reached
SSR Max Limit
SSR Min Limit
Reset
Violation
t
t
t
t
t
t
t
t
t
e30bi341.10

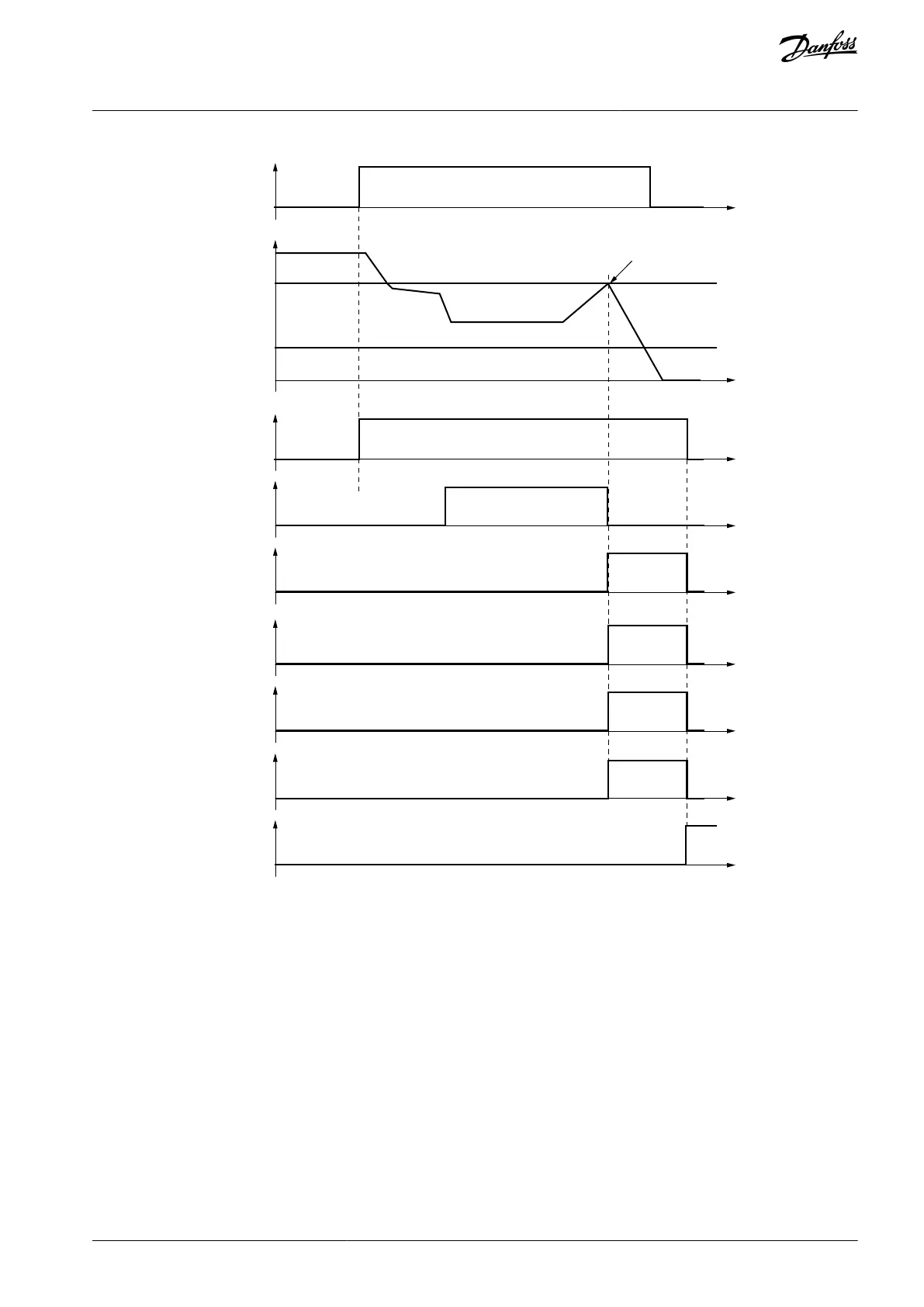

Illustration 47: The SQS-STO Function as a Violation Response to an SSR Speed Violation. The SBC Function is not Used.
AQ319736045637en-000101 / DPD01798 | 87Danfoss A/S © 2021.06
Safety Functions
VACON® NXP Advanced Safety Options
Operating Guide

Danfoss VACON OPTEA Specifications
