TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
3. Adjust the settings in Dimensioning | Settings to match your applications requirements
(Min/Max package size, units, and etc.) (see chapter 4).

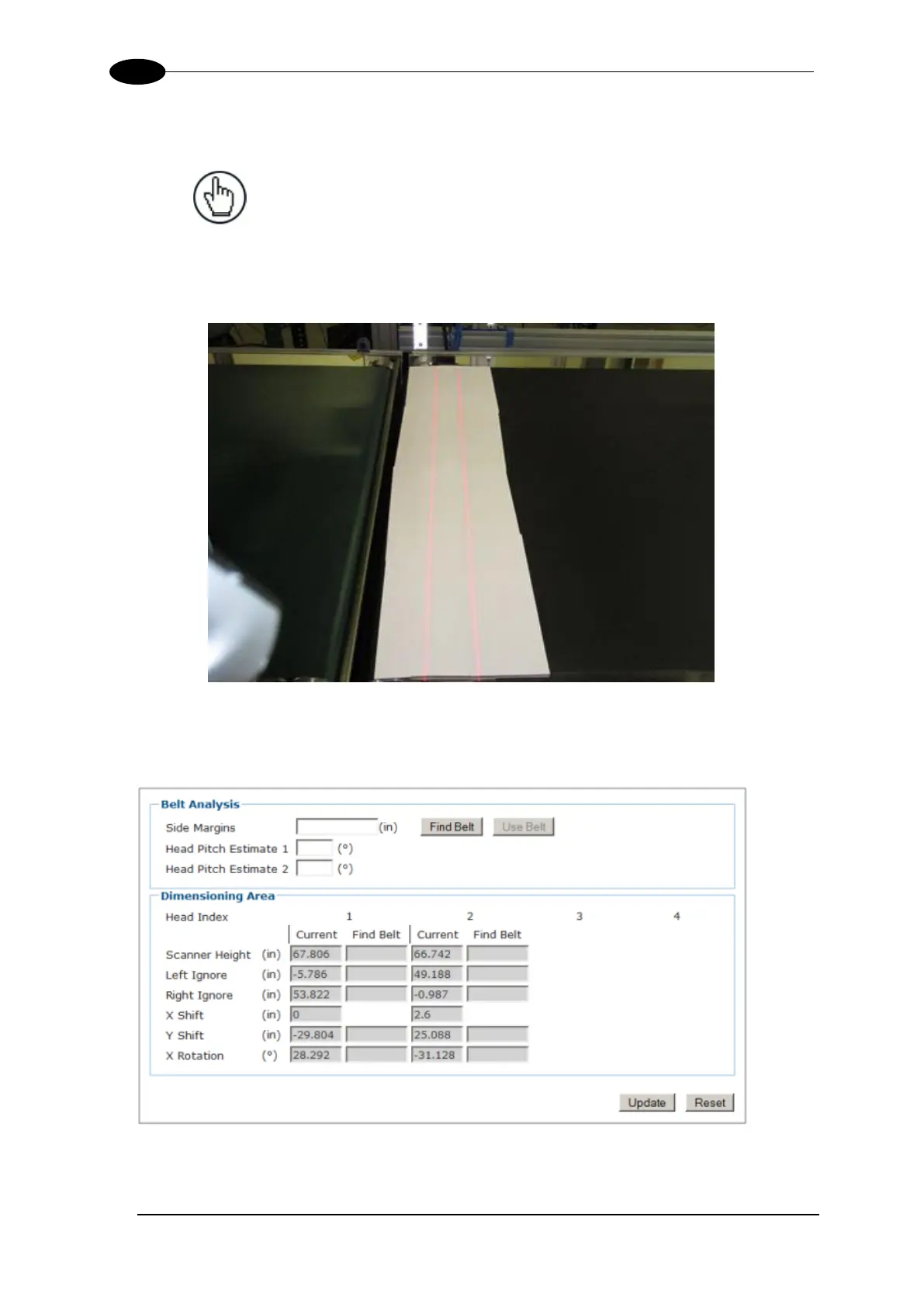

4. Lay pieces of white paper across the conveyor under the laser lines to avoid any
irregularities in the conveyor belt from affecting the data.
Figure 55: Paper laid across conveyor
5. In the menu tree under Modify Settings, select Dimensioning | Calibration. The
Calibration window opens.
NOTE: Be sure to turn Certification Mode back On after
calibration in Legal for Trade applications in both the
DC3000 Dimensioning Controller and DM3610
dimensioning heads.
