DIMENSIONING SETUP AND CALIBRATION
8. Click Find Belt. Dimensioning parameters are automatically loaded into the
Dimensioning Area.
9. Click Use Belt. The Find Belt parameters are accepted.
10. Enter 0.000 for the X Shift of HEAD1.
11. Measure the X Shift distance between the scan lines from HEAD1 to HEAD2. This
number will be positive.

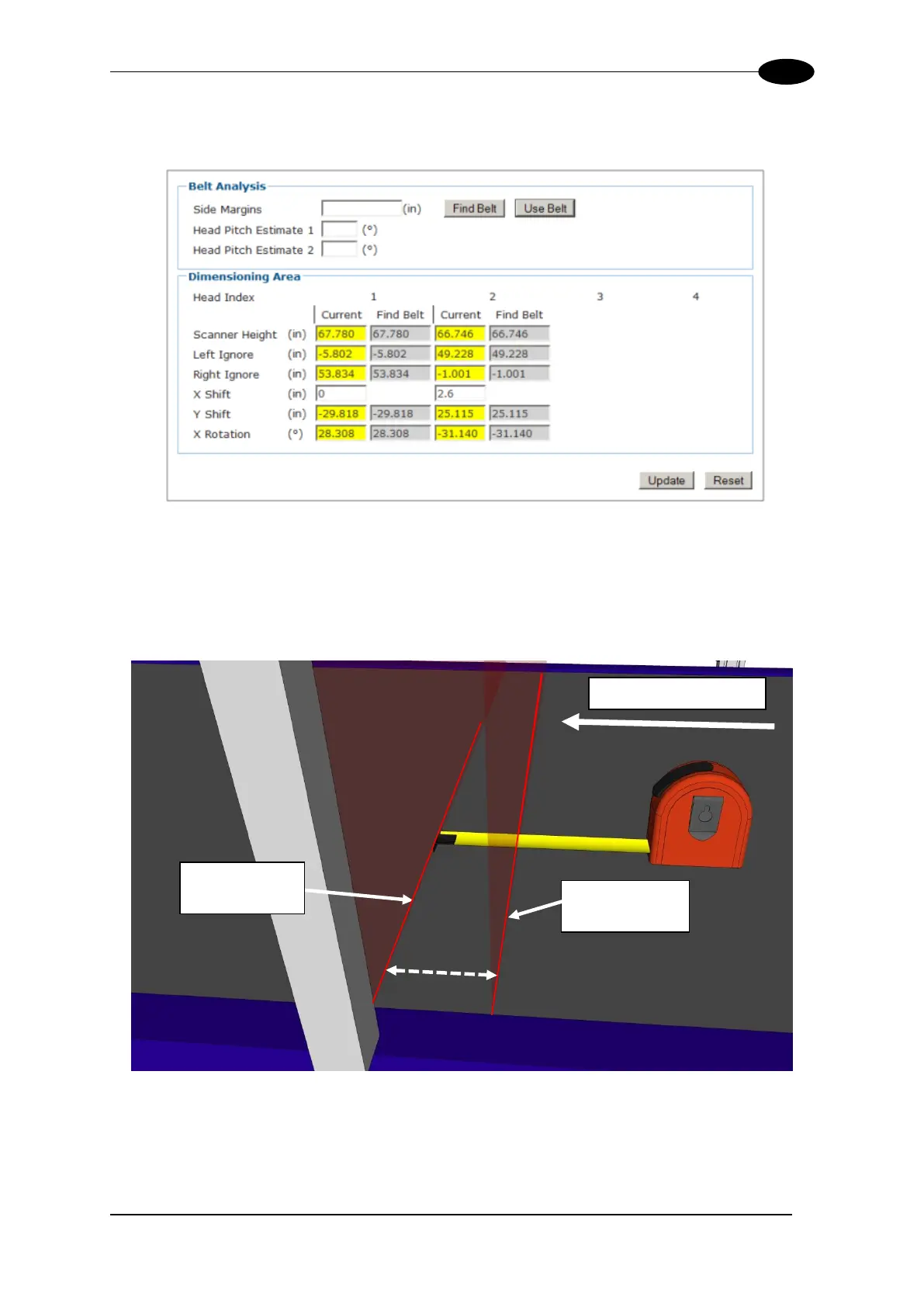

Figure 58: X Shift Measurement
12. Enter the measured distance between the laser lines in the X Shift for HEAD2. This
number will be positive.
13. Click Update.
