Datalogic DM3610 - System Maintenance Procedures; Maintenance Overview

TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL
120
5

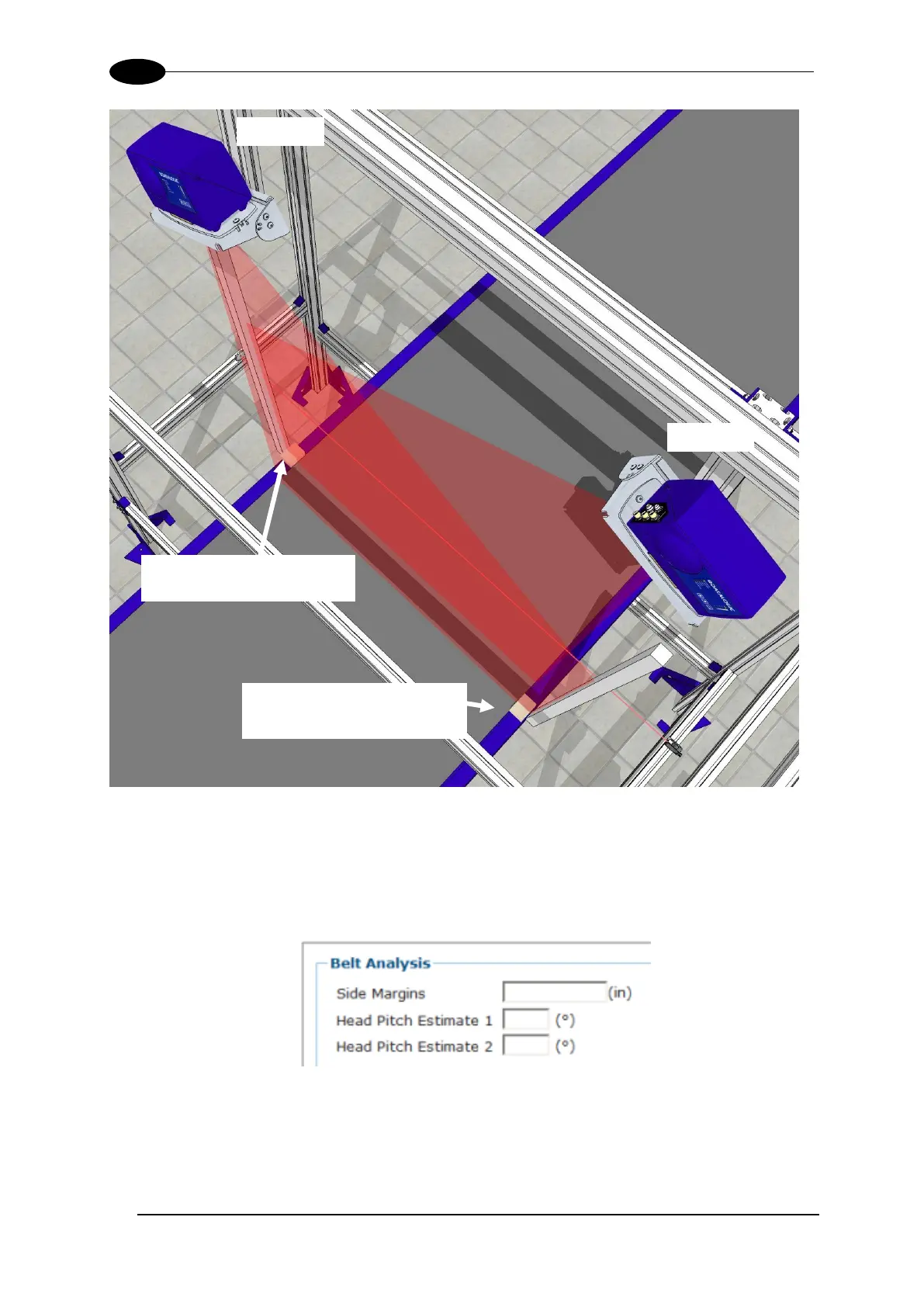

Figure 57: Spacer placement
7. Enter Head Pitch Estimate 1 (HEAD1) and Head Pitch Estimate 2 (HEAD2) based on
the angles from the application specifications. The Head Pitch Estimate helps each
head differentiate the conveyor bed from the beam catcher.
Side Margins for HEAD 1
(Outside)
HEAD 1
HEAD 2
Side Margins for HEAD 2
(Inside)
