TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL

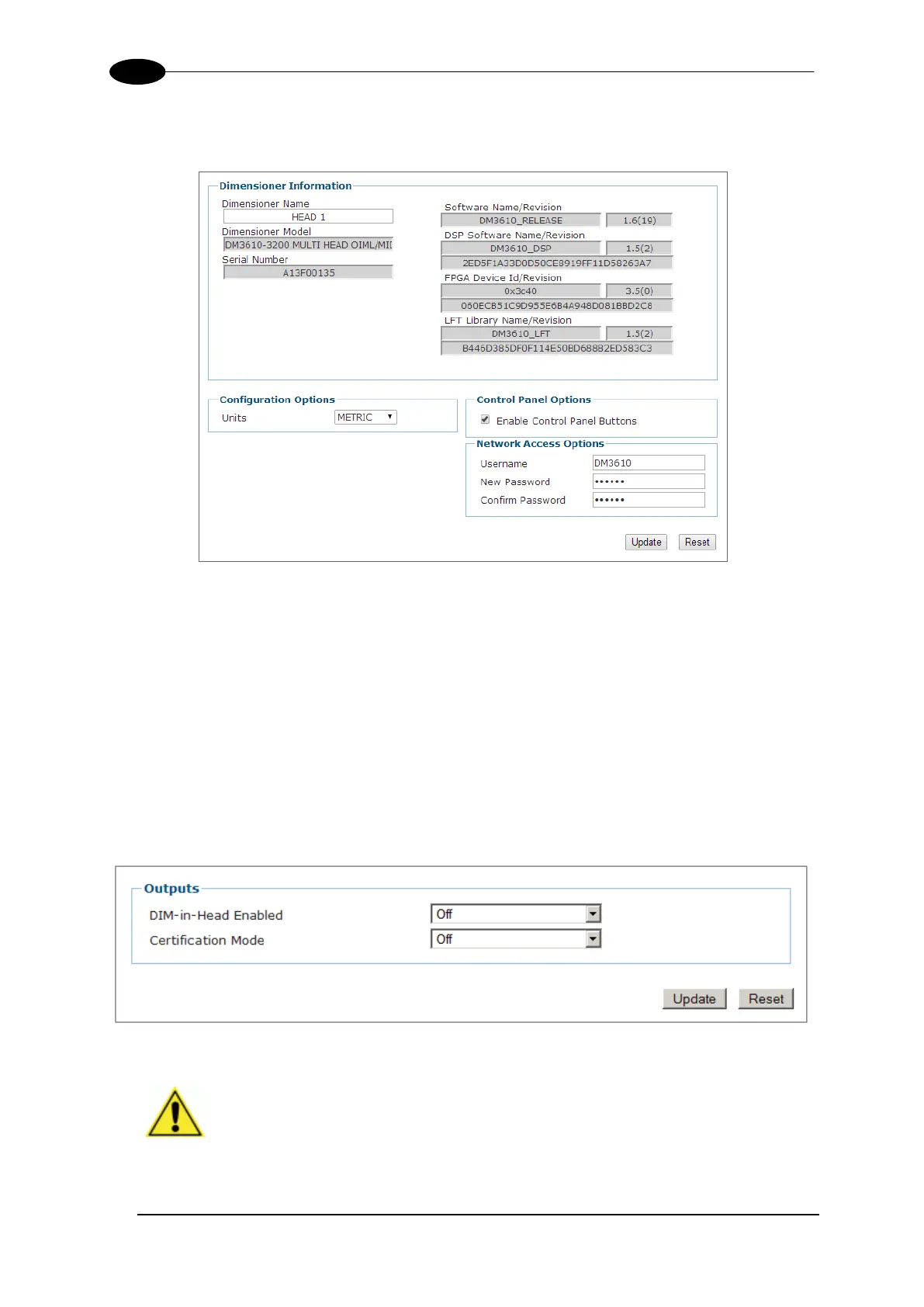

5. From the menu tree under Modify Settings, select Configuration. The
Configuration window opens.
6. Confirm the following items:
Dimensioner Model should be MULTI HEAD
Software revision should be 1.6(19) or GREATER.
7. Enter a unique name for the dimensioner in the Dimensioner Name field. The master
DM3610 should be named “HEAD1” (this dimensioner will be mounted to the left
looking downstream), the next DM3610 “HEAD2,” and etc.
8. Click Update.
9. From the menu tree under Modify Settings, select Dimensioning | Settings. The
Dimensioning | Settings window opens.
10. Make sure DIM-in-Head Enabled is set to Off, and Certification Mode is set to Off.
IMPORTANT: You must turn Certification Mode back on after
calibration is completed if this is a Legal-for-Trade system
11. Click Update.
