TWO-HEAD DIMENSIONING SYSTEM REFERENCE MANUAL

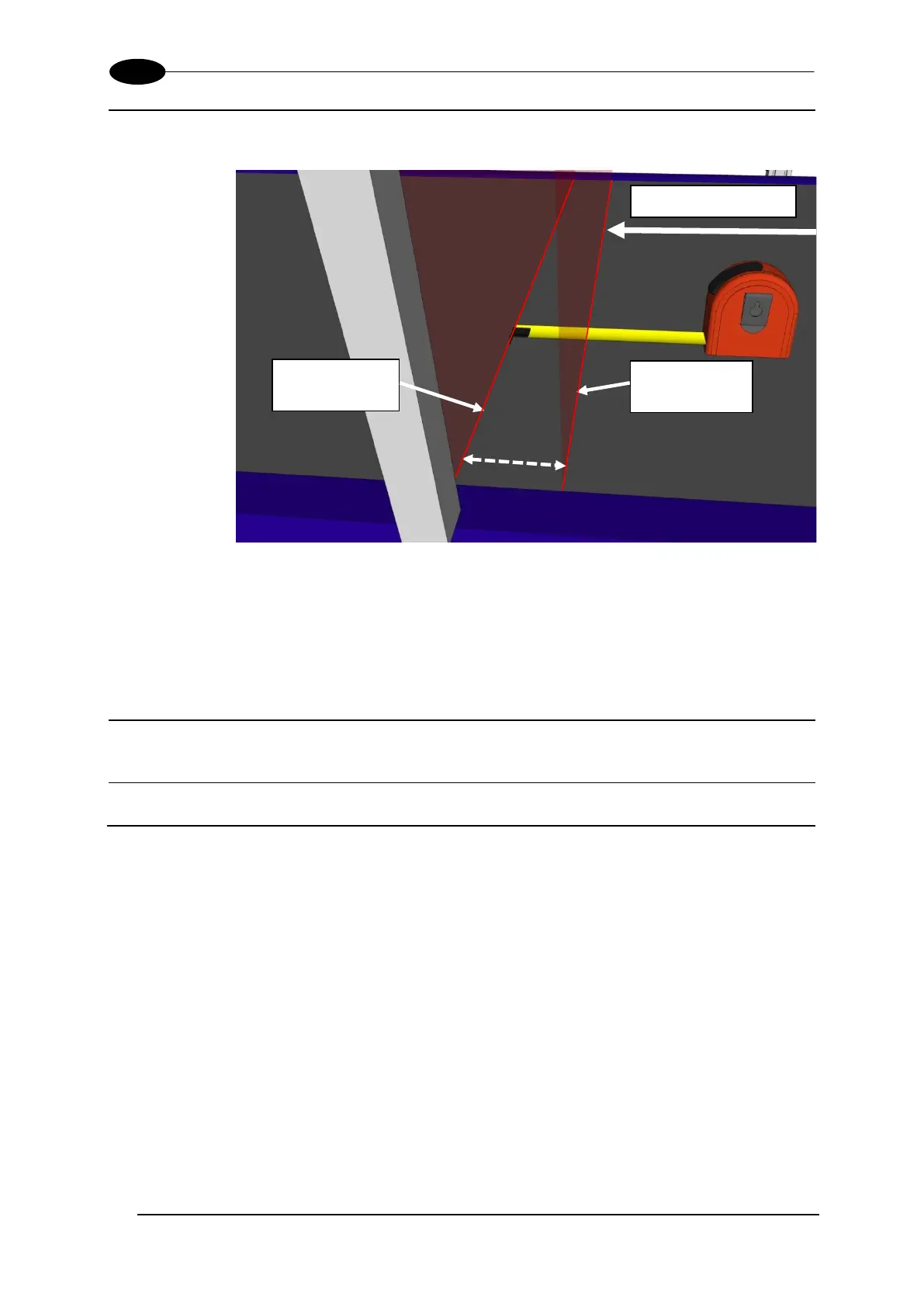

Enter the measured distance on the belt from DM3610 HEAD1 scan line to
HEAD2 scan line.
1. Enter 0.000 for the X Shift of HEAD1.
2. Measure the X Shift distance between the scan lines from HEAD1 to
HEAD2. This number will be positive.
3. Enter the measured distance between the laser lines in the X Shift
for HEAD2. This number will be positive.
This indicates the DM3610 dimensioner’s position shift from center along the
Y-axis.
This indicates the DM3610 dimensioner’s degrees of rotation on the X-axis.
3. When you have finished making changes, click Update to save or click Reset to
revert to the previously saved values.
