2. Enter the appropriate information in the form as described below.
Field Name
Action/Definition
Framing
Define the message framing
Header
Enter a character string for the header (ASCII or Hex). These characters
will be sent at beginning of every message. Up to 25 characters are
allowed.
Trailer
Enter a character string for the trailer. These characters will be sent to
terminate every message.
Sequence
Select No Sequence No., 1 Digit Sequence No., 2 Digit Sequence No.,
or 3 Digit Sequence No. from the drop down list. When a digit sequence
is selected, a sequence number consisting of the specified number of
digits is inserted just after the header.
Check Digits
Select BCC or CRC from the drop-down list. When enabled, a two-
character hexadecimal check character is inserted just prior to the trailer.
Messages

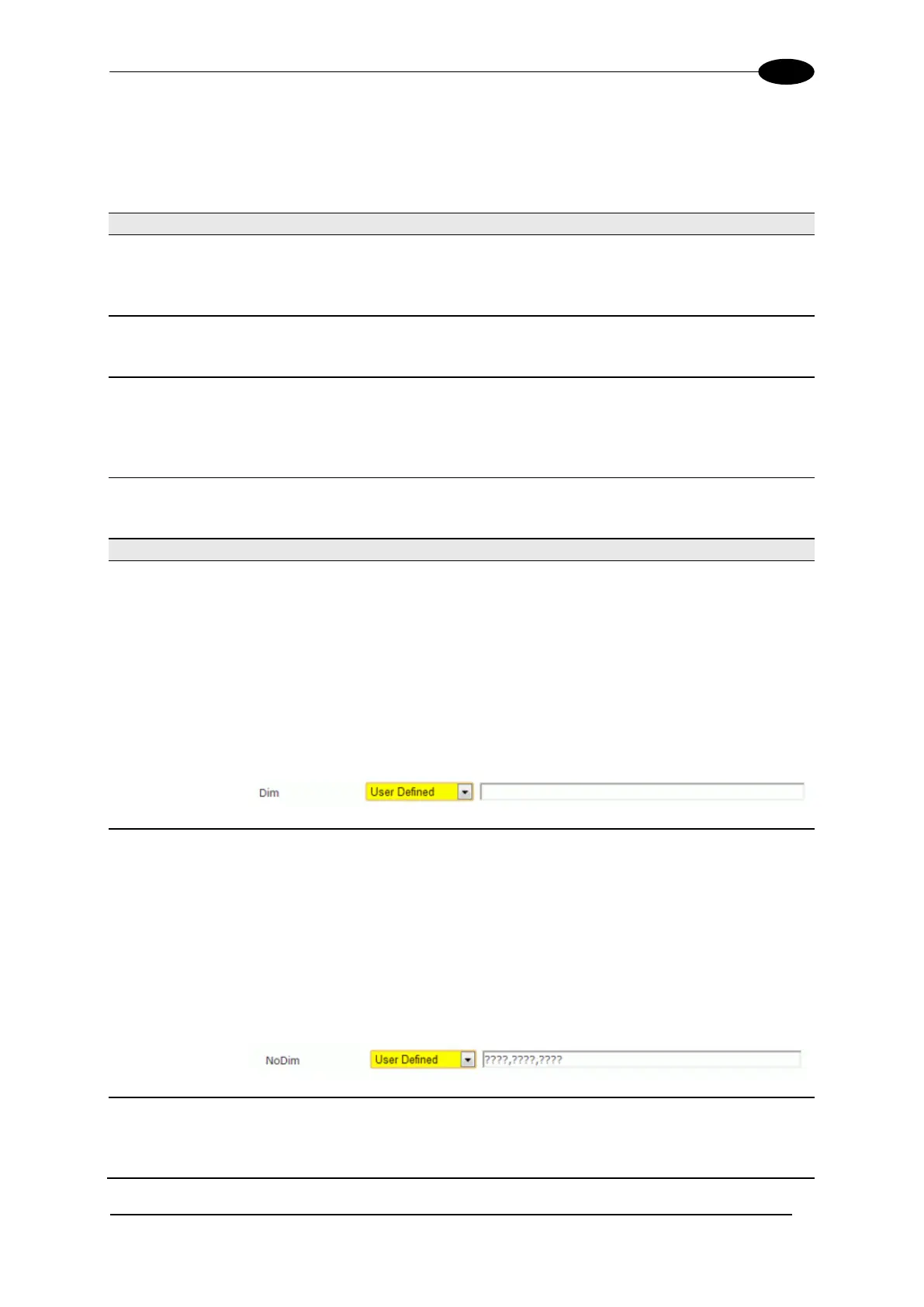

Dim
Select None, Send Dimensions, or User Defined from the drop-down
list.
None: No dimension data is sent in the message.
Send Dimensions: This selection sends the package dimensions
in the message.
User Defined: When selected, a text field is provided for entry of a
user defined message.
No Dim
Select None, Send Dimensions, or User Defined from the drop-down
list.
None: No dimension data is sent in the message.
Send Dimensions: This selection sends the package dimensions
in the message.
User Defined: When selected, a text field is provided for entry of a
user defined message.
Dimensions
Format
Select in what order you would like the Length, Width, and Height
measurements to appear in the message. L=Length / W=Width / H=Height
